Description

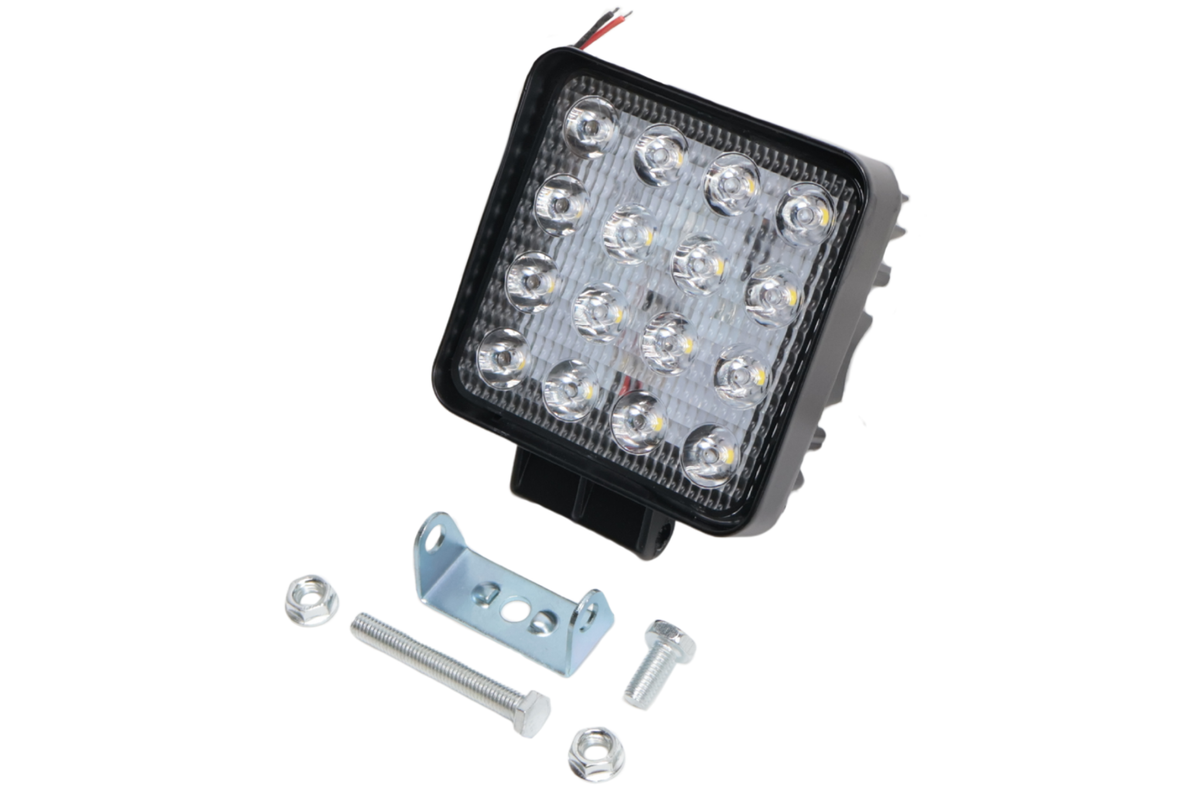

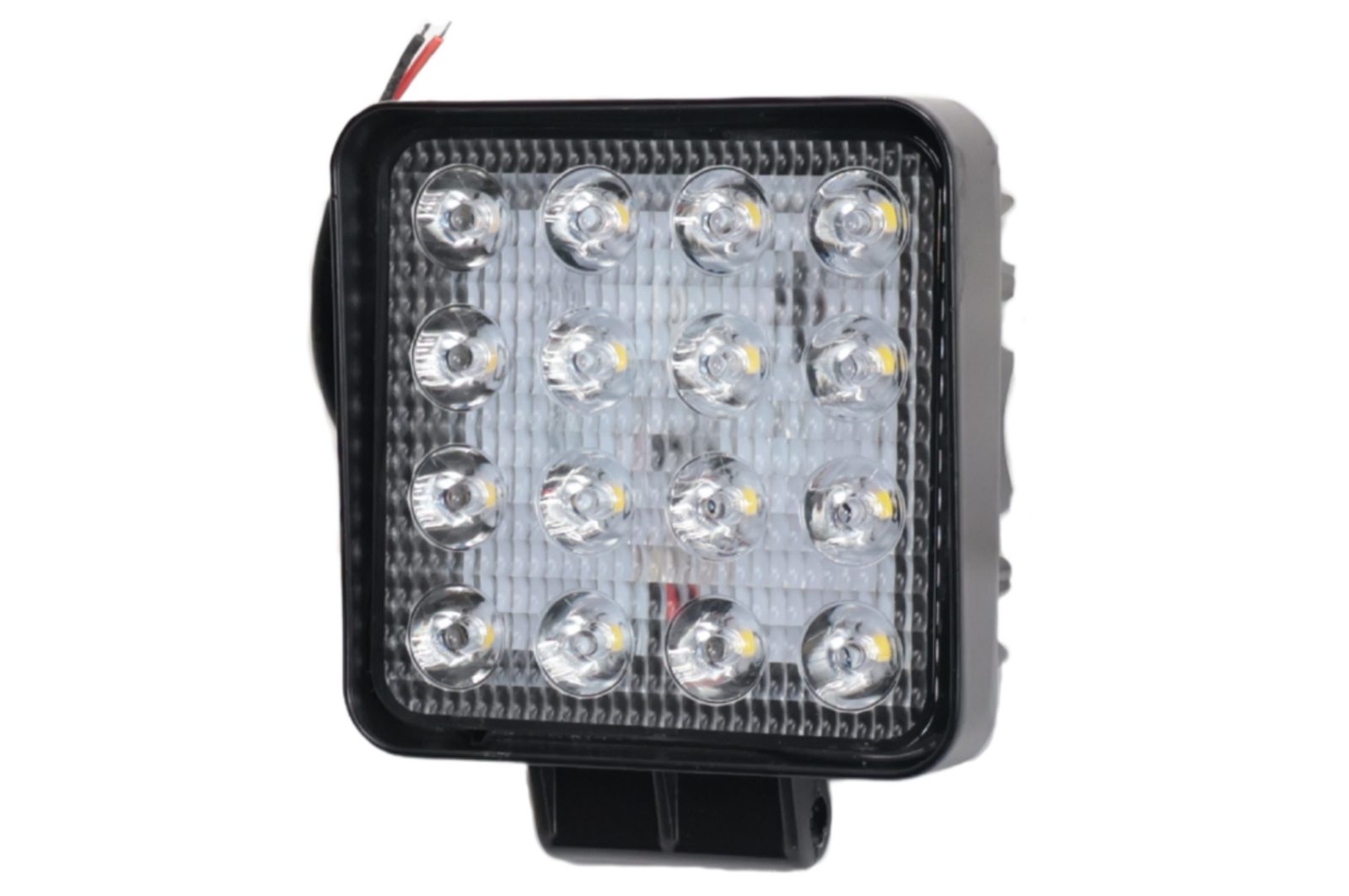

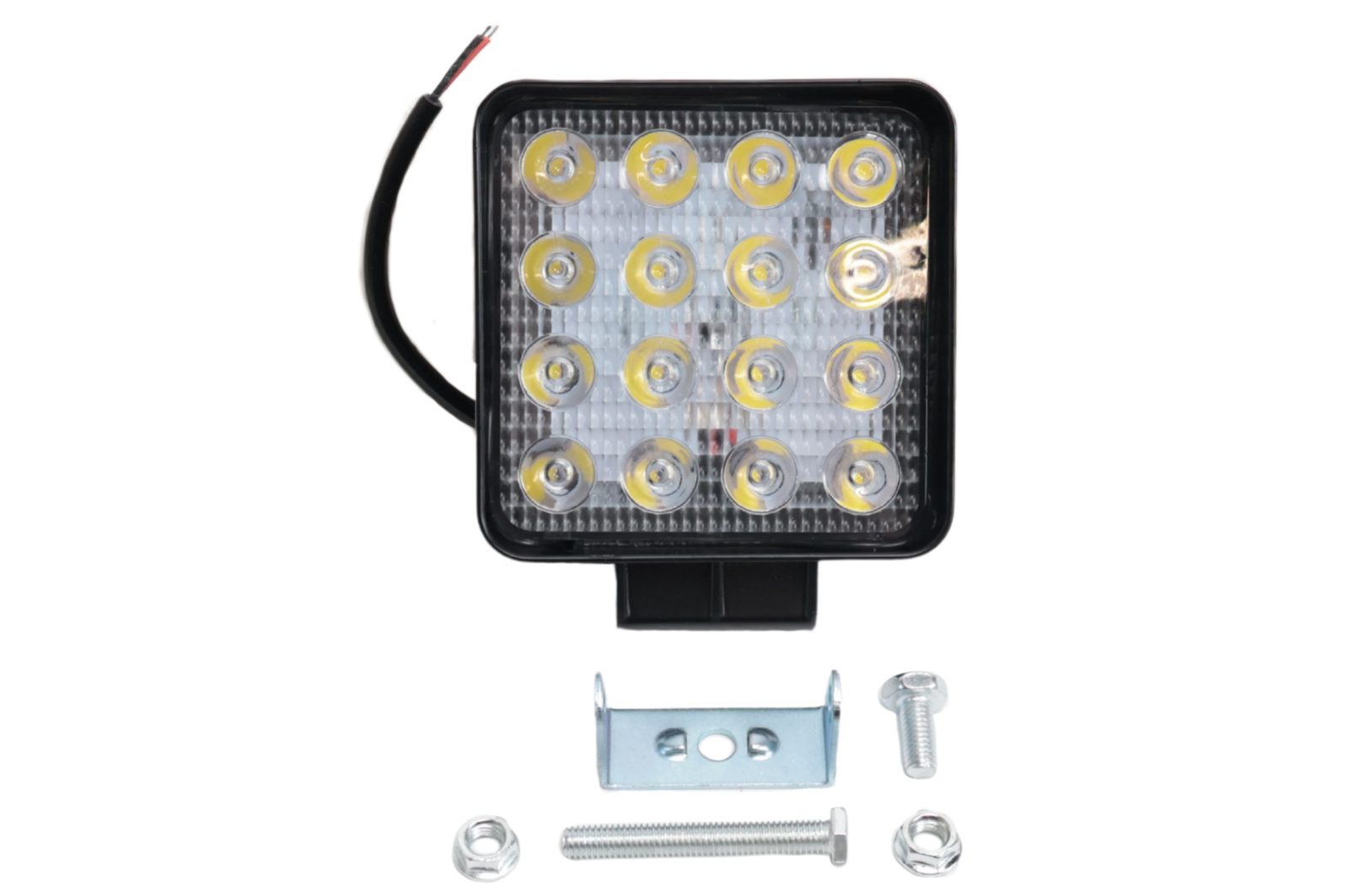

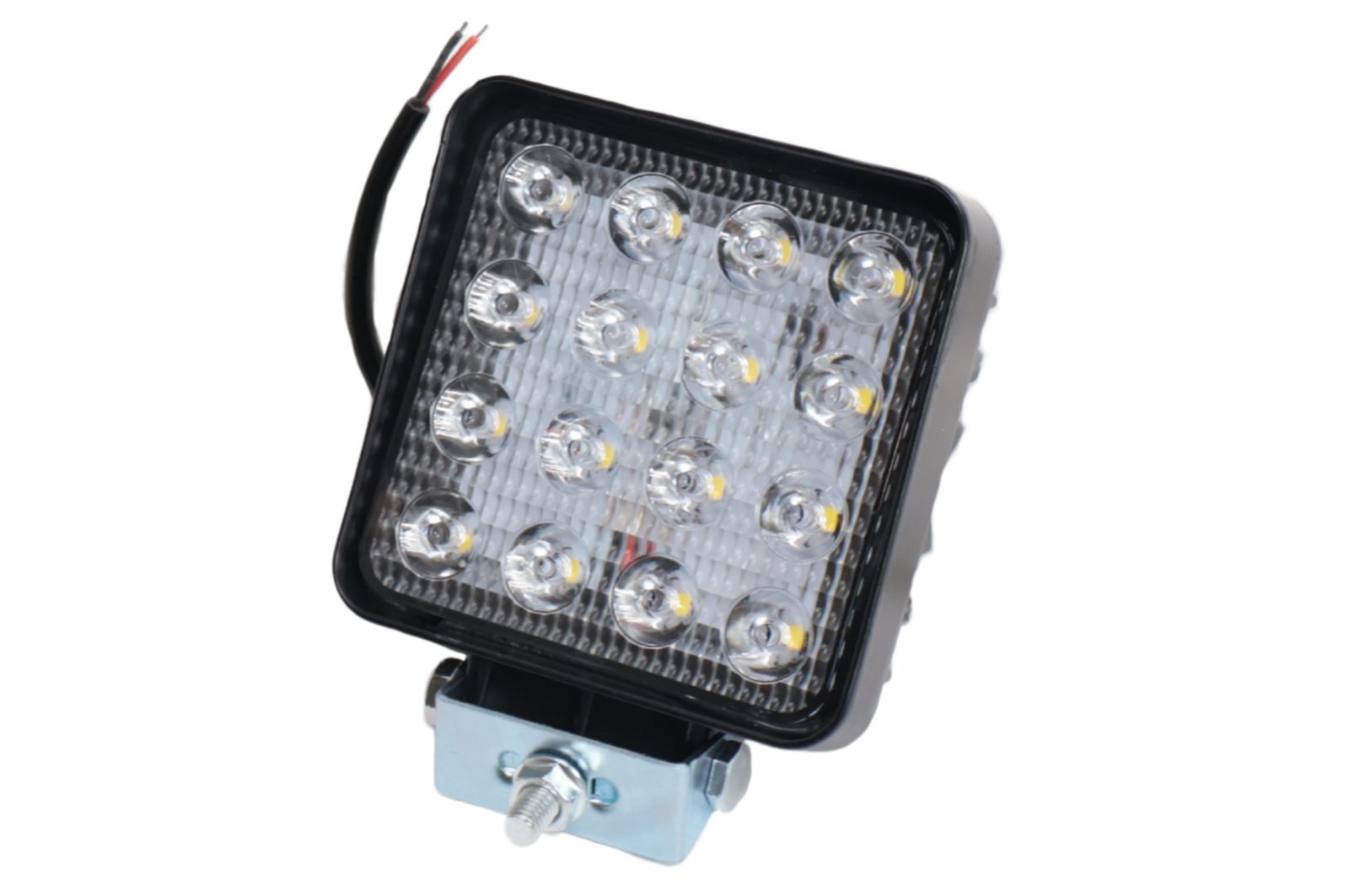

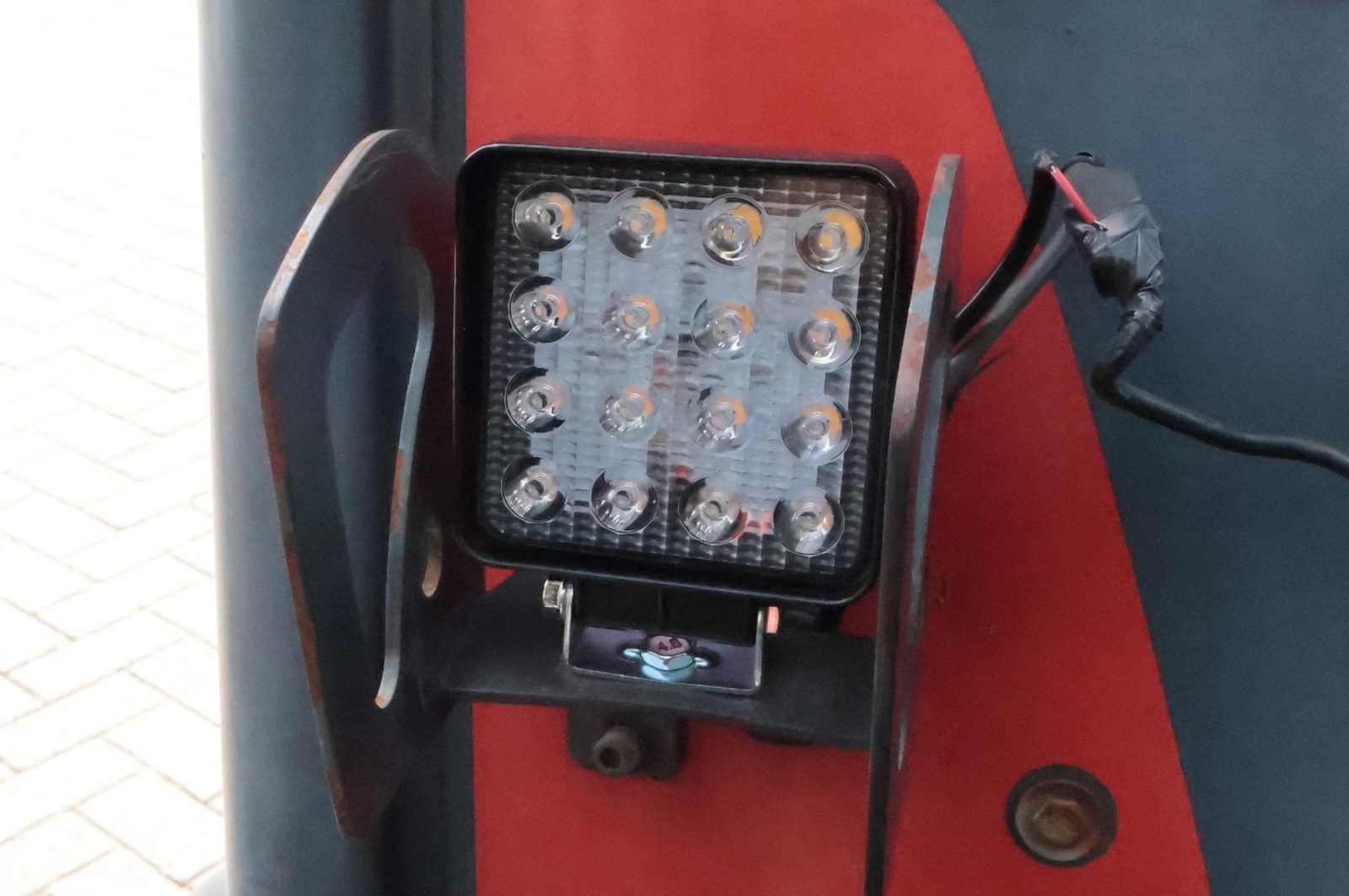

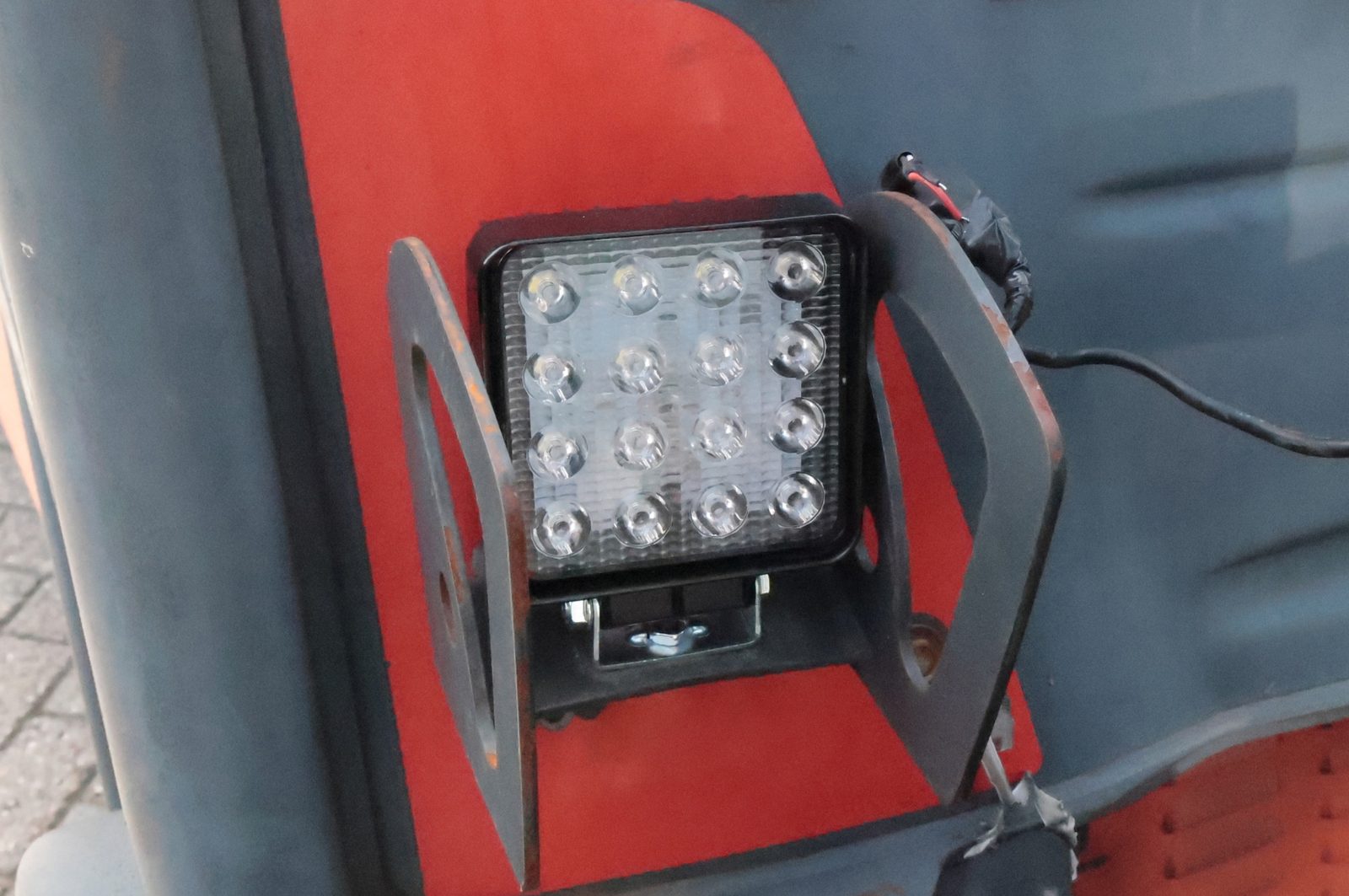

This LED work light has 16 LEDs and comes with a tilting mounting kit.
To connect the work light to a 7-pin main cable, connect it to the rear fog light function (blue). As soon as you switch on the fog light in your car, the work light comes on. If you don't want the work light on in foggy conditions, you can fit a switch between the fog light and the work light.
You can also connect it to a 13-pin main cable via the reversing light function (grey). This gives you extra light when reversing with the trailer, which can be very handy.
Dimensions: 110 x 110 x 55 mm

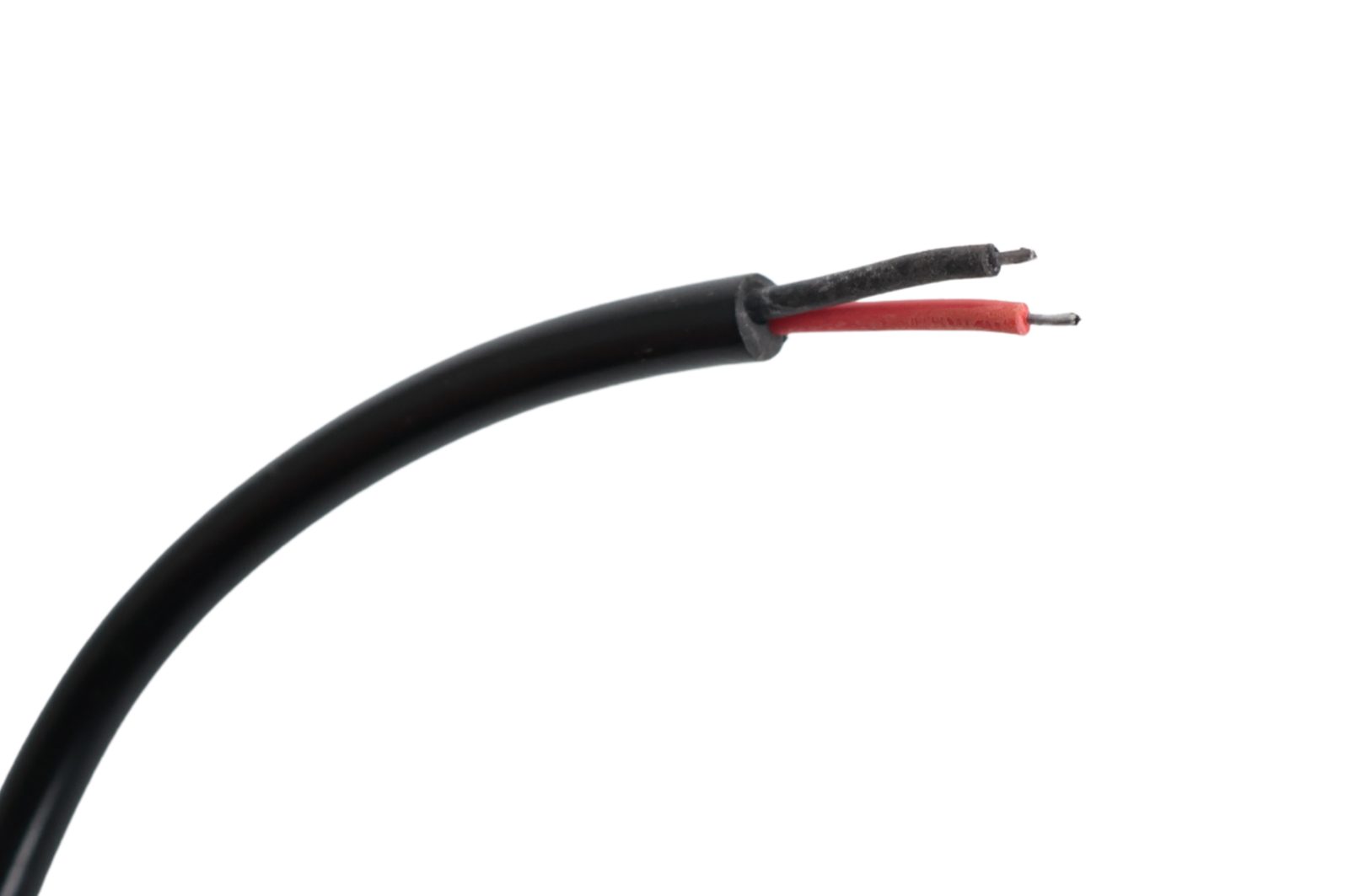

Cable length: 20 cm
Voltage: 12–80 V
LED power: 20 W
Luminous flux: 1800 lm
IP rating: IP65

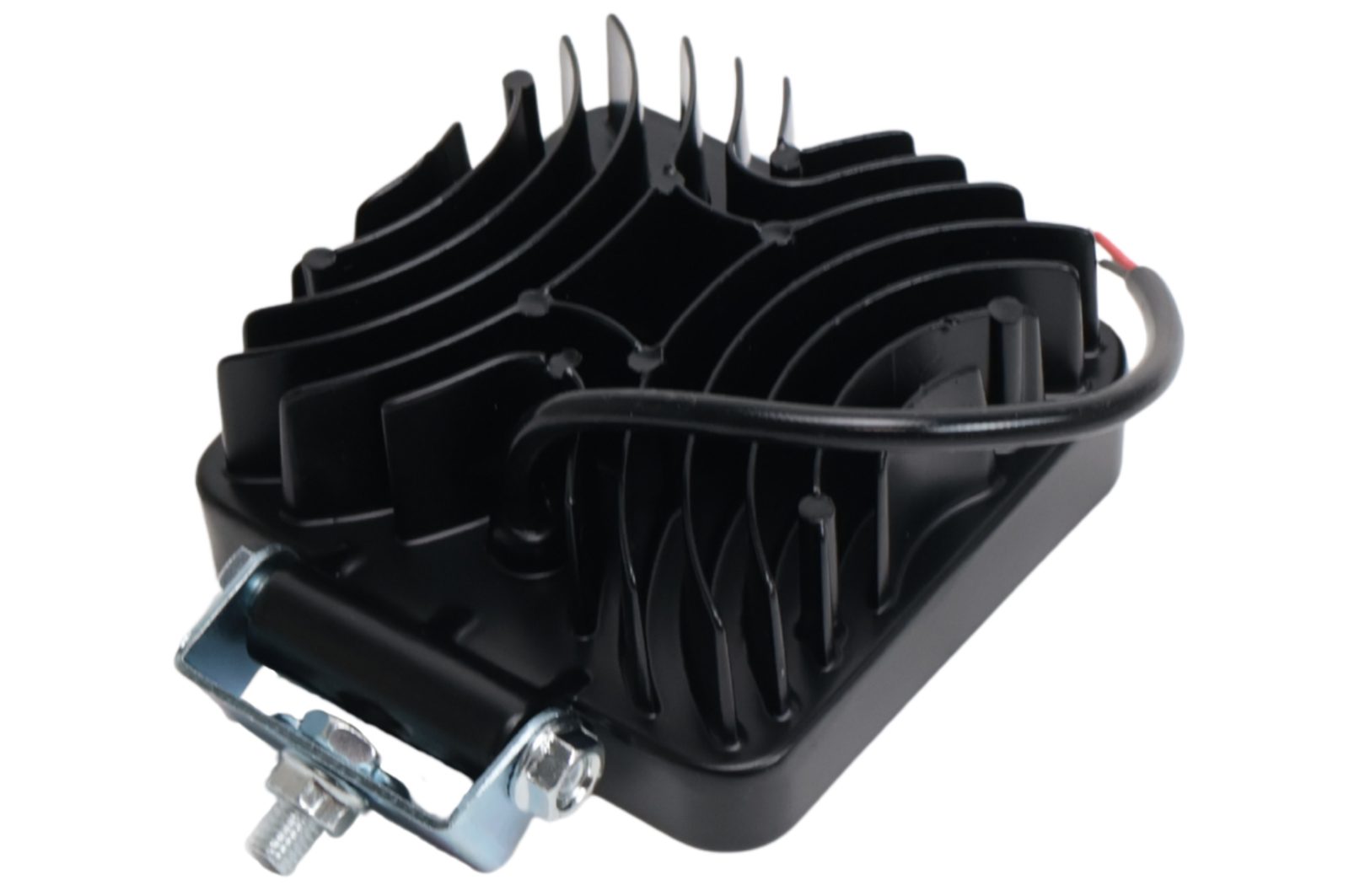

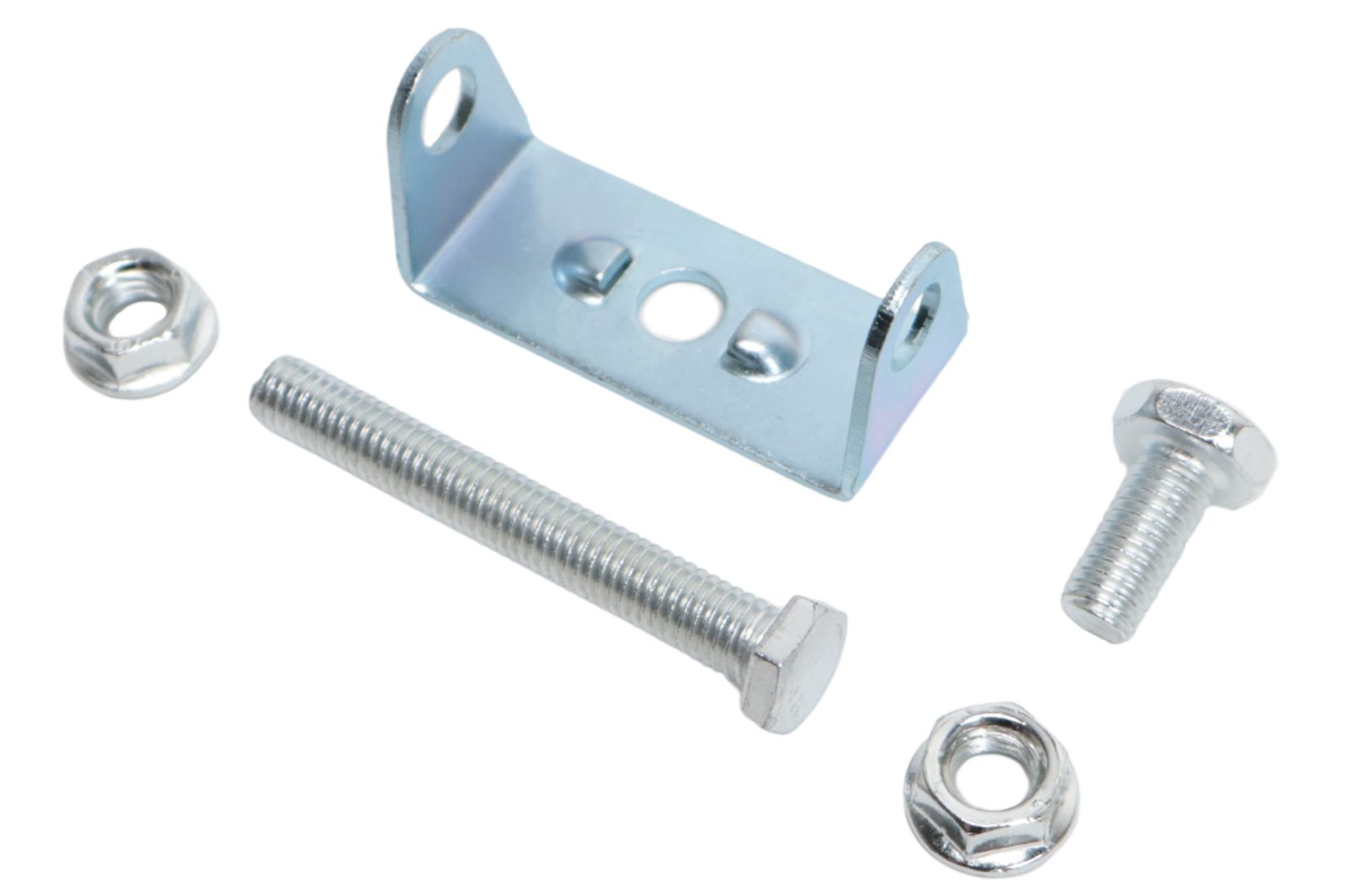

Mounting kit: tilting (M8 fixing)
Easy to connect with a 2-core cable and heat-shrink tubing.
