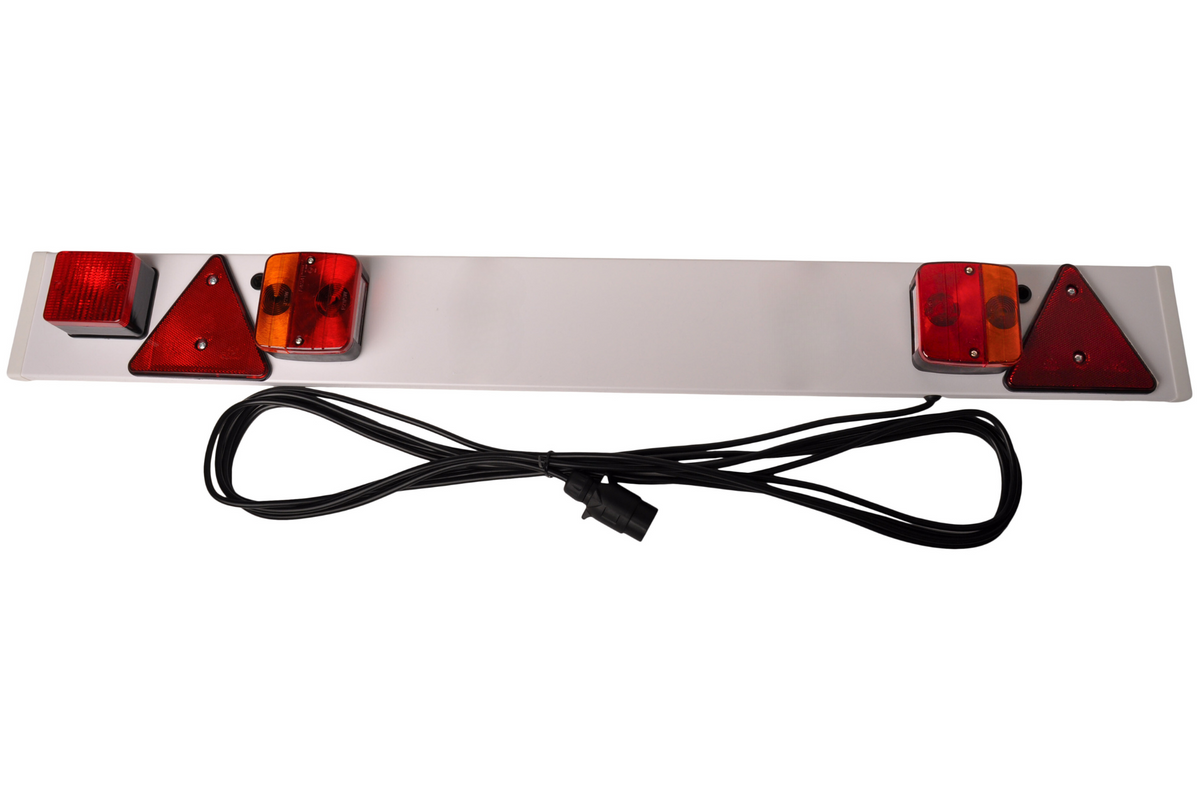

Trailer light bar with 8 m cable – 122 cm – 7-pin

Complete light bar for trailers with all required functions and a 7-pin plug. Just mount the light bar and everything works straight away. Easy to install and ideal for use on, for example, a boat trailer.

Datasheet
Brand
Cantonal
Dimensions (W x H)
122 x 14 cm
Type
incandescent bulb
Voltage
12 V
Rear light
yes
Brake light
yes
Indicator
yes
Fog light
yes
Number plate light
yes
Reversing light
no
Connection

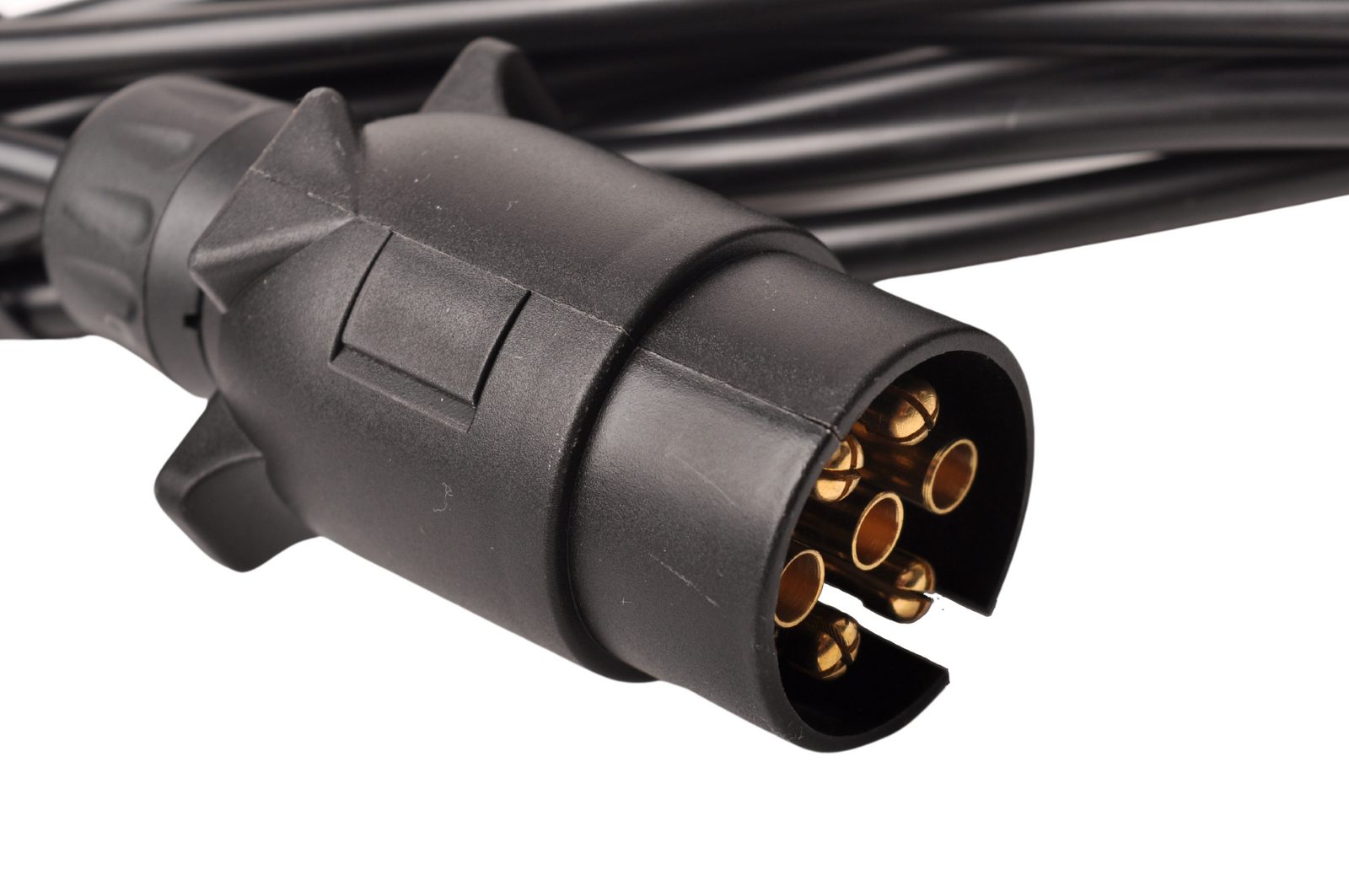

7-pin plastic plug, plug & play
Cable length
8 metres
Mounting hole spacing
775 mm
Light bar thickness
20 mm
Light bar material
plastic

Prices and availability through your Cantonal dealer.

Description

Complete light bar for trailers with all required functions and a 7-pin plug. Just mount the light bar and everything works straight away. Easy to install and ideal for use on, for example, a boat trailer.

Does your car have a 13-pin socket? Use a 13-to-7-pin adapter and the lighting will work as normal, making this light bar suitable for any connection.

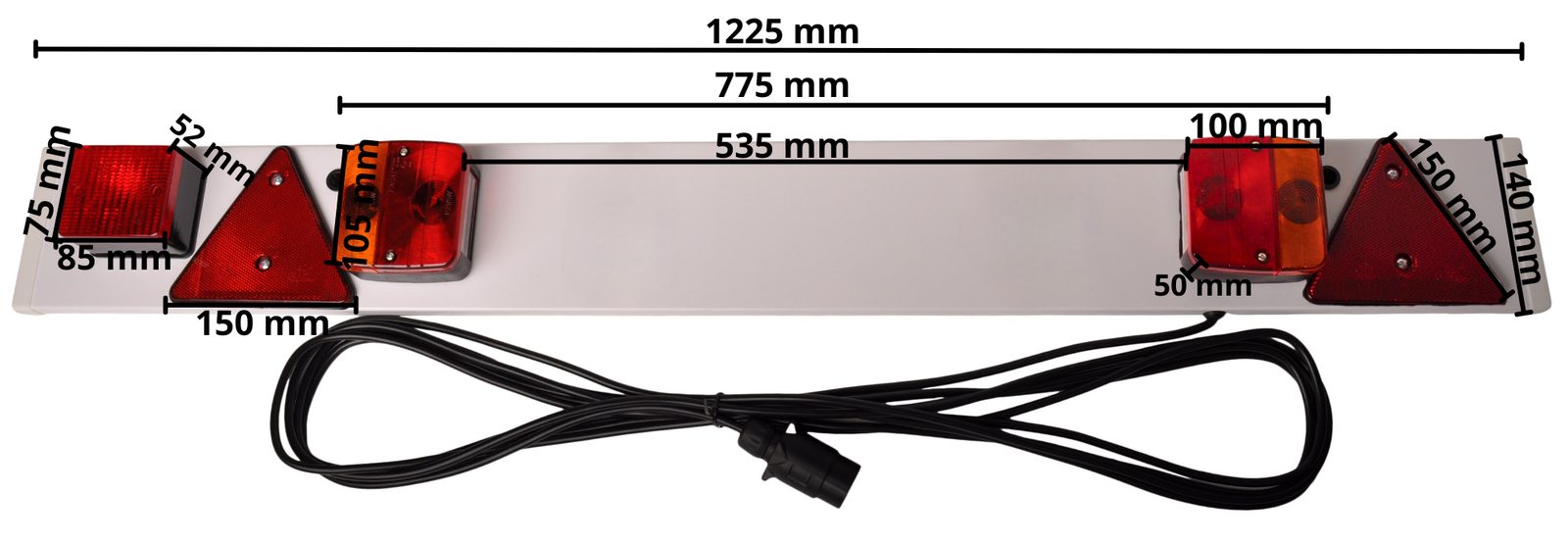

Technical drawing

Technical drawing – Trailer light bar with 8 m cable – 122 cm – 7-pin
