SKU 202577602 · Chassis & Wheels

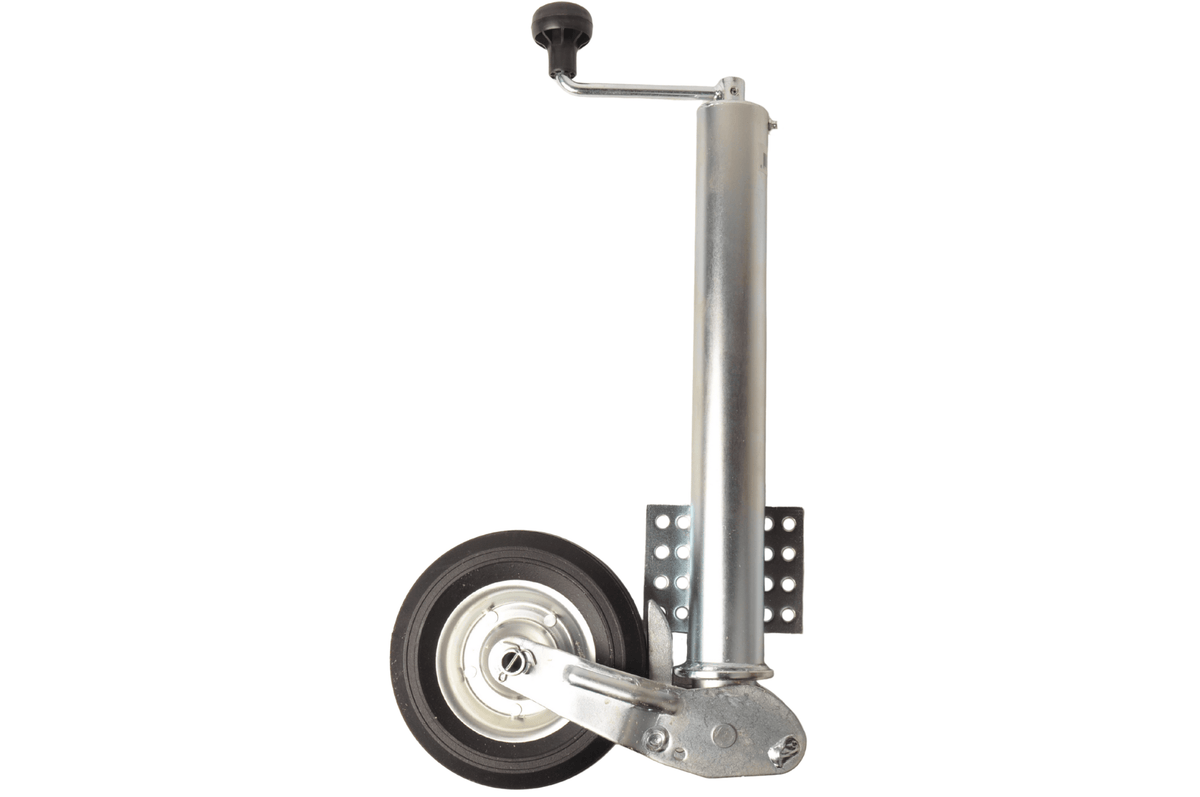

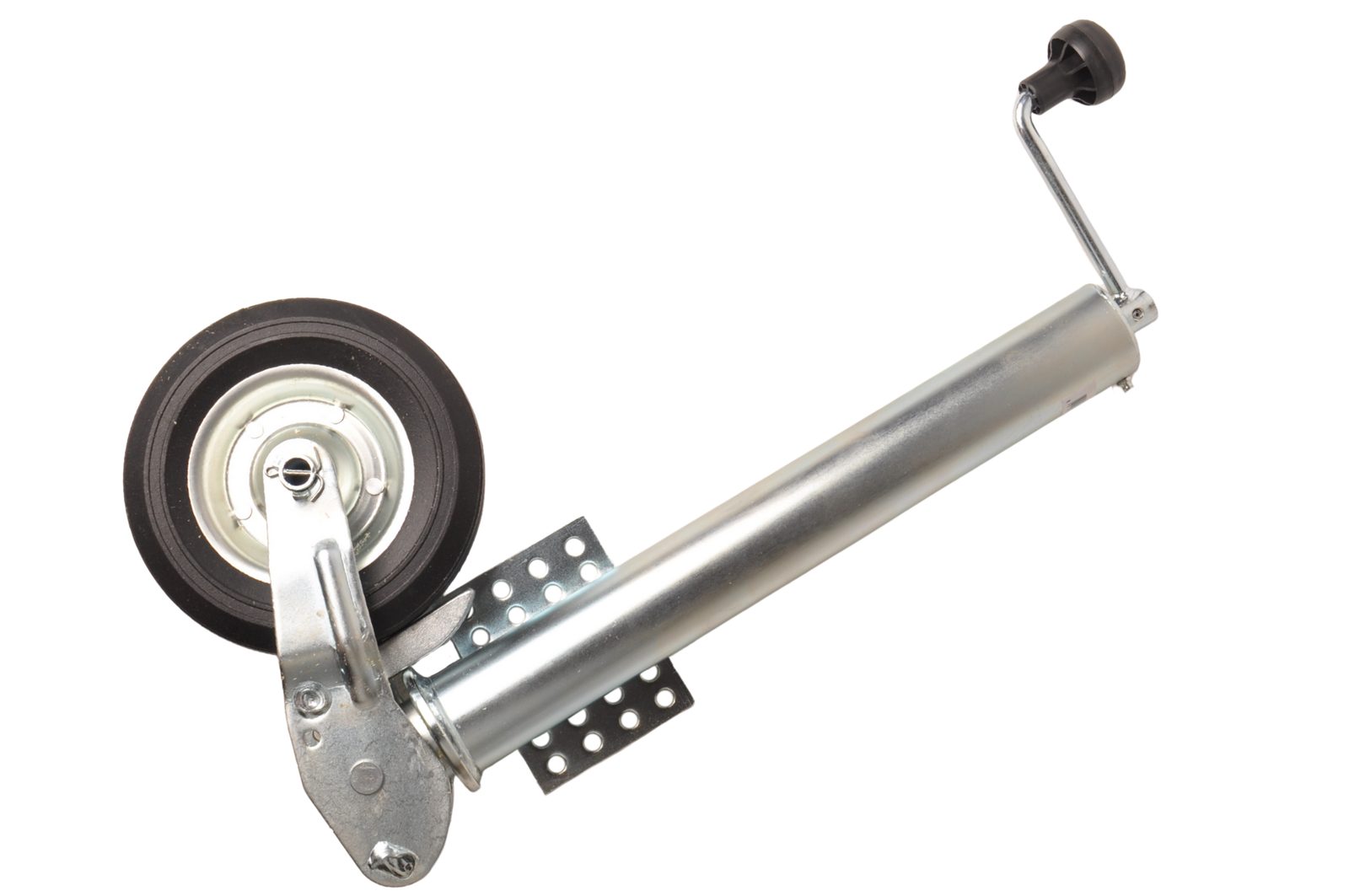

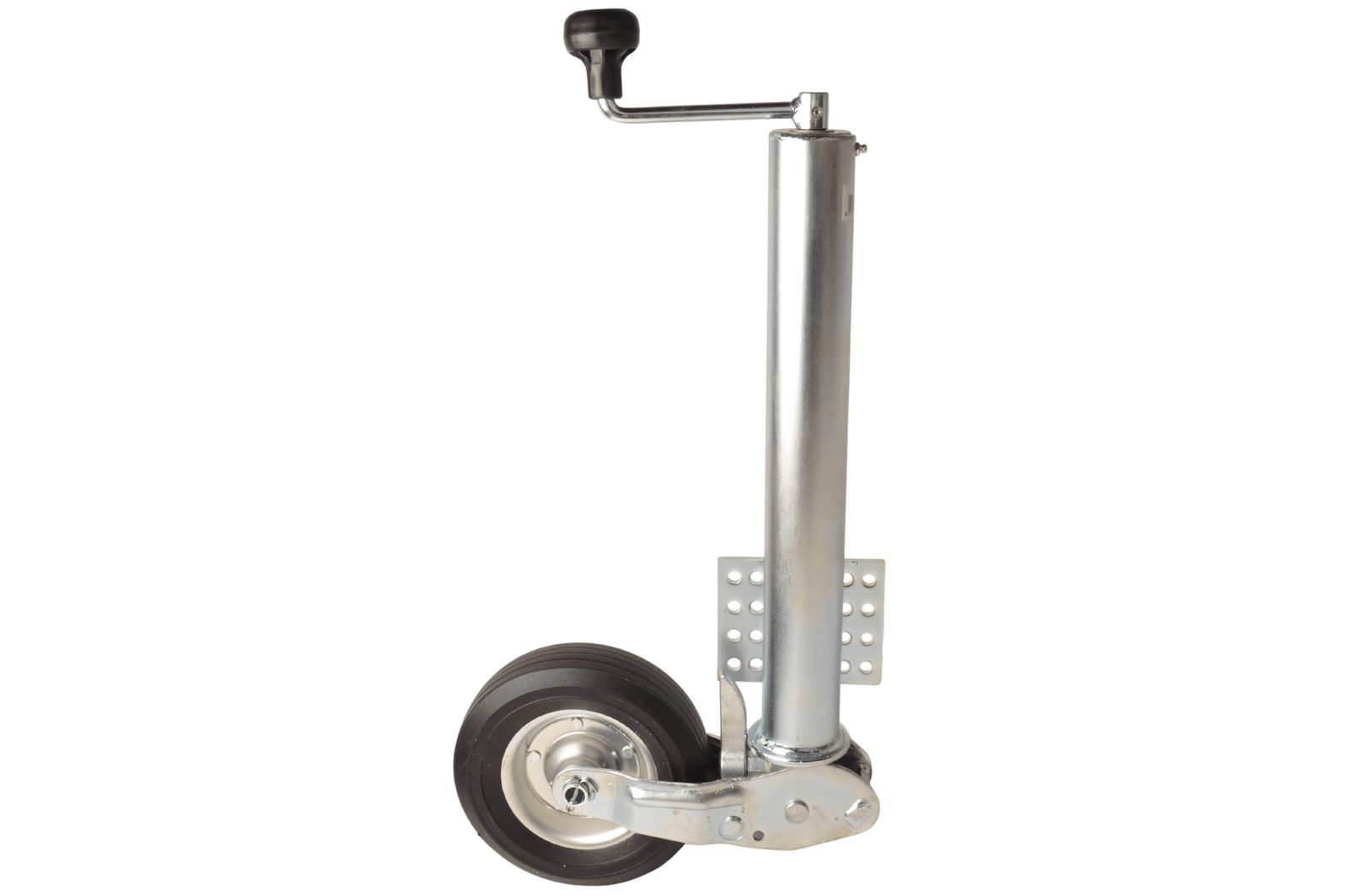

Trailer jockey wheel – round 60 mm – load capacity 250 kg – automatic fold-up

This automatic fold-up jockey wheel with a 60 mm tube is a widely used, universal jockey wheel for trailers. Its sturdy construction and maximum load capacity of 250 kg make it suitable for heavier applications where stability and ease of use matter.

Datasheet
Brand
Cantonal
Model
fold-up
Tube diameter
60 mm
Wheel type
hard rubber
Rim type
galvanised steel
Maximum load
250 kg static
Mounting
60 mm jockey wheel clamp

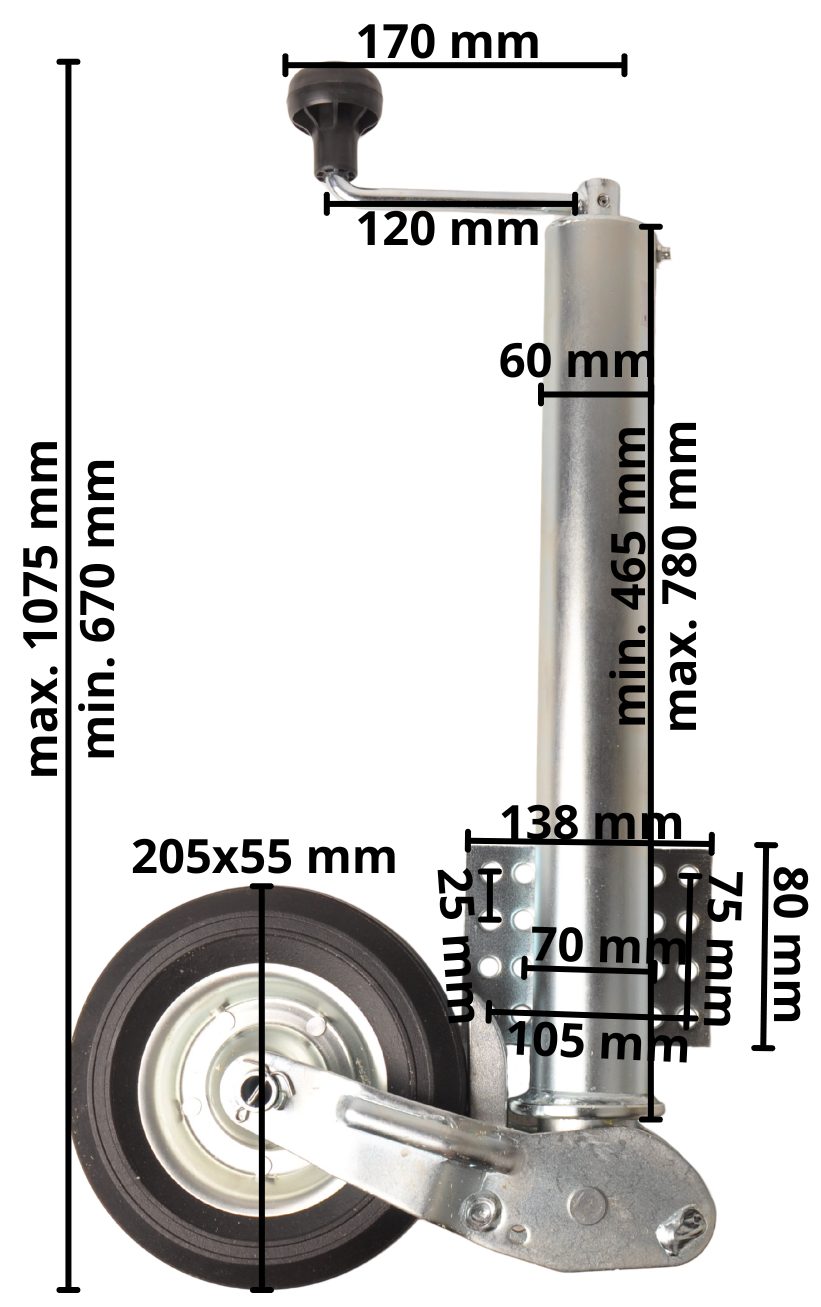

Mounting plate hole centres
105 x 50 mm
Mounting plate + tube thickness
8 cm
Includes

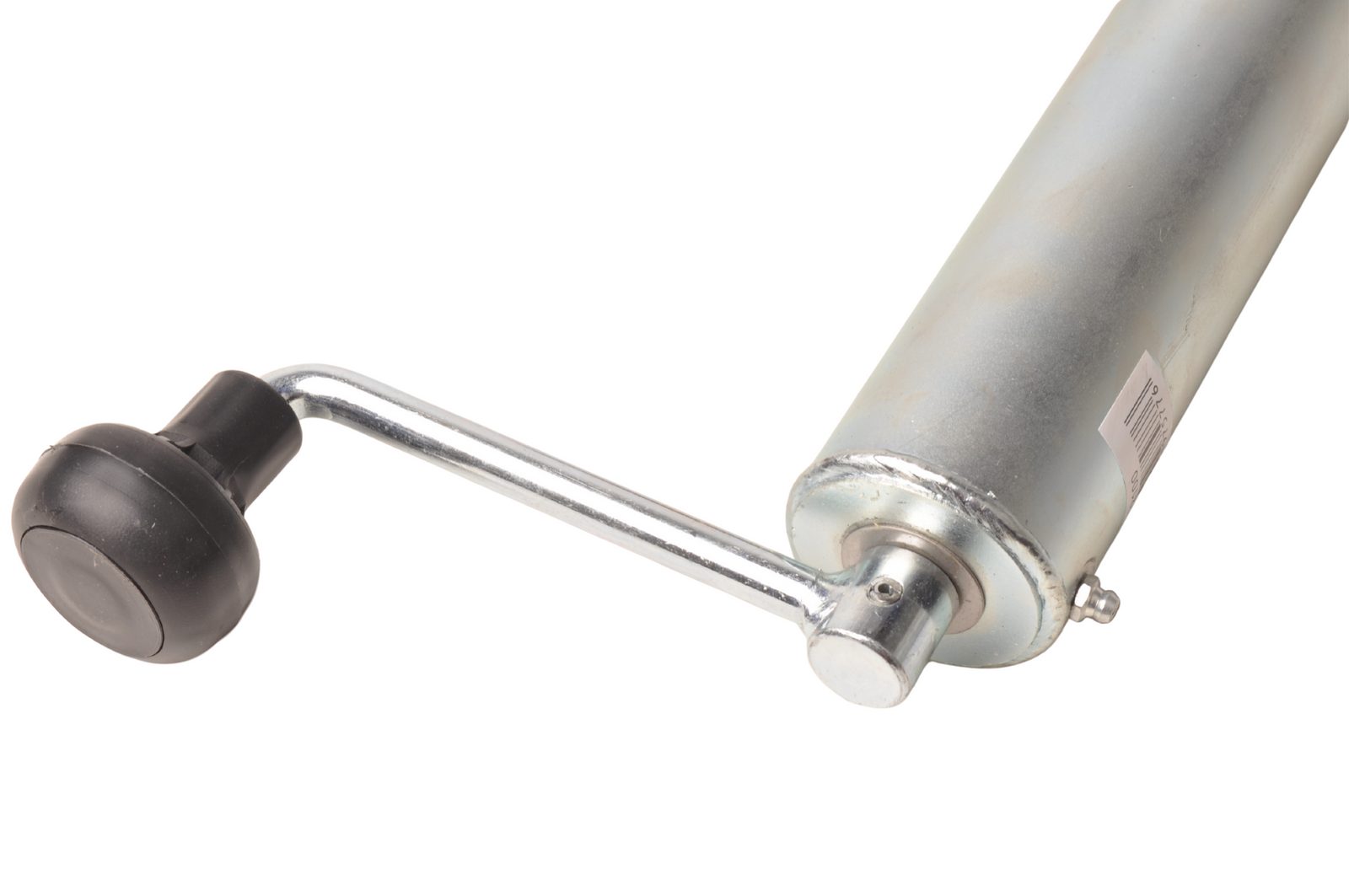

grease nipple
Mounting hardware
not included (available separately)
Request information →

Prices and availability through your Cantonal dealer.

Description

This automatic fold-up jockey wheel with a 60 mm tube is a widely used, universal jockey wheel for trailers. Its sturdy construction and maximum load capacity of 250 kg make it suitable for heavier applications where stability and ease of use matter.

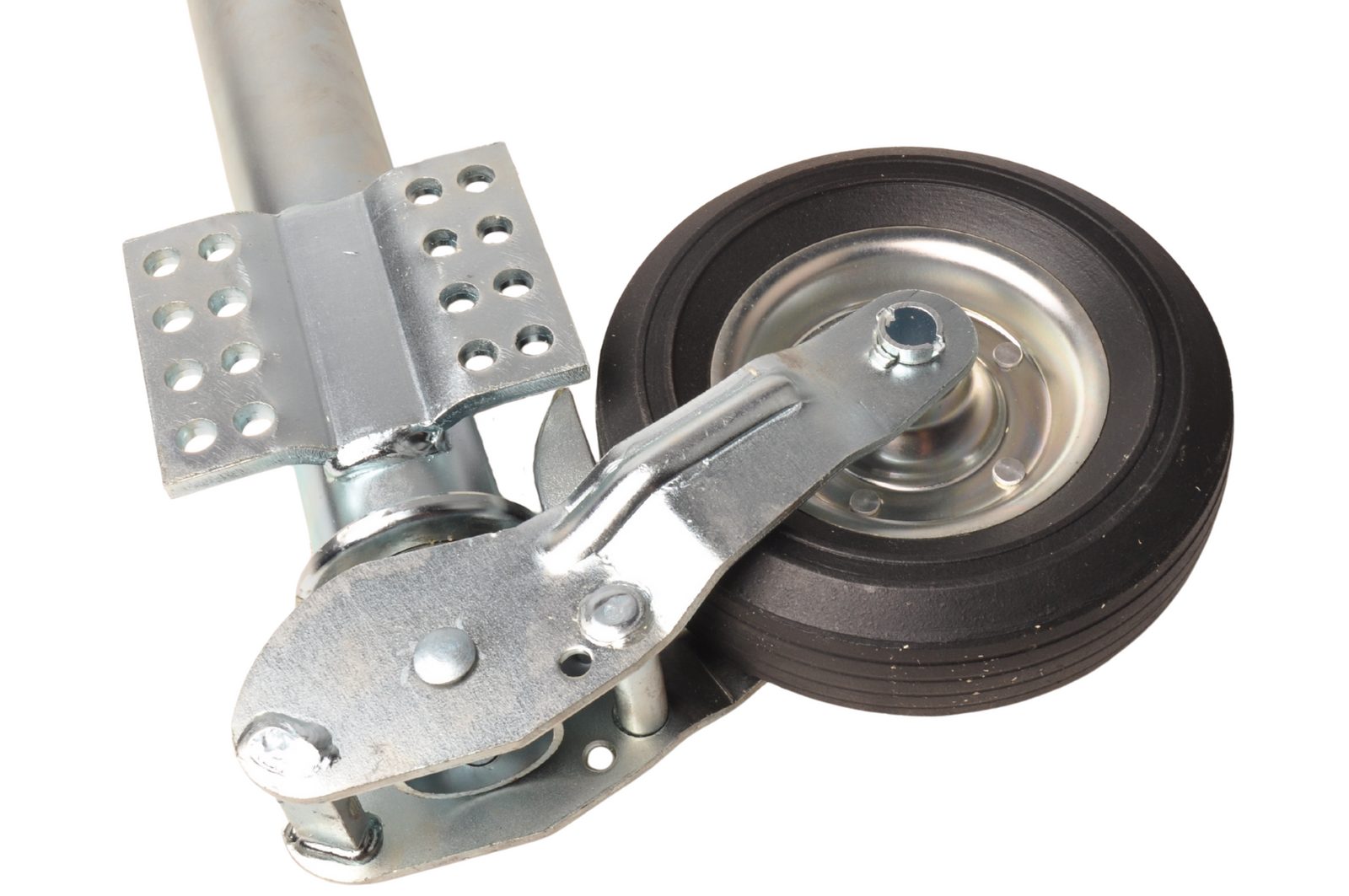

The mounting plate has 10 holes, allowing it to be fitted to many different drawbars, provided the correct holes are present. The automatic fold-up mechanism folds the wheel up as you wind it in – handy for daily use.

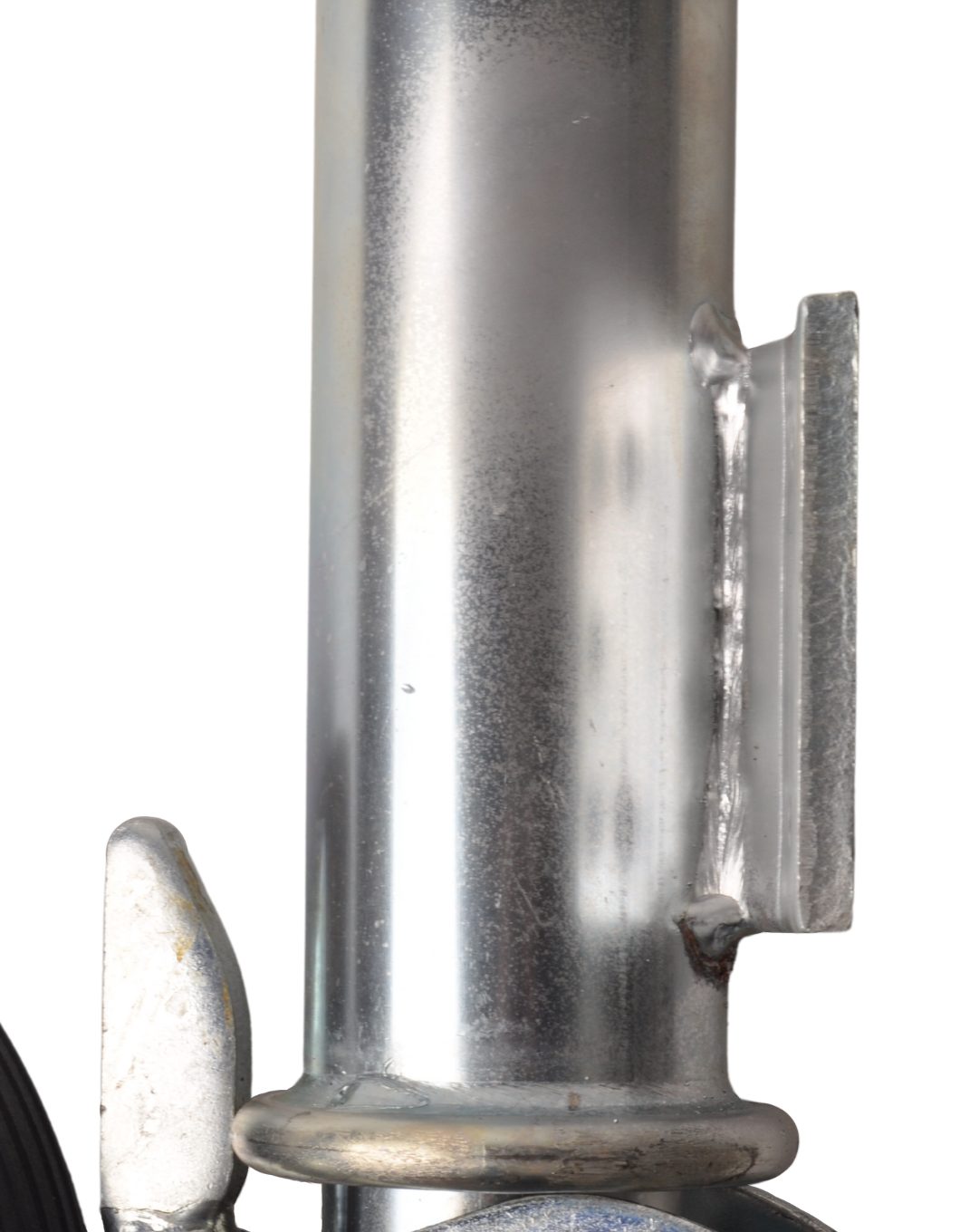

Supplied without mounting hardware; a matching mounting kit is available. The mounting plate sits directly against the tube, so there is no spacing between tube and plate.
