SKU 202498102 · Chassis & Wheels

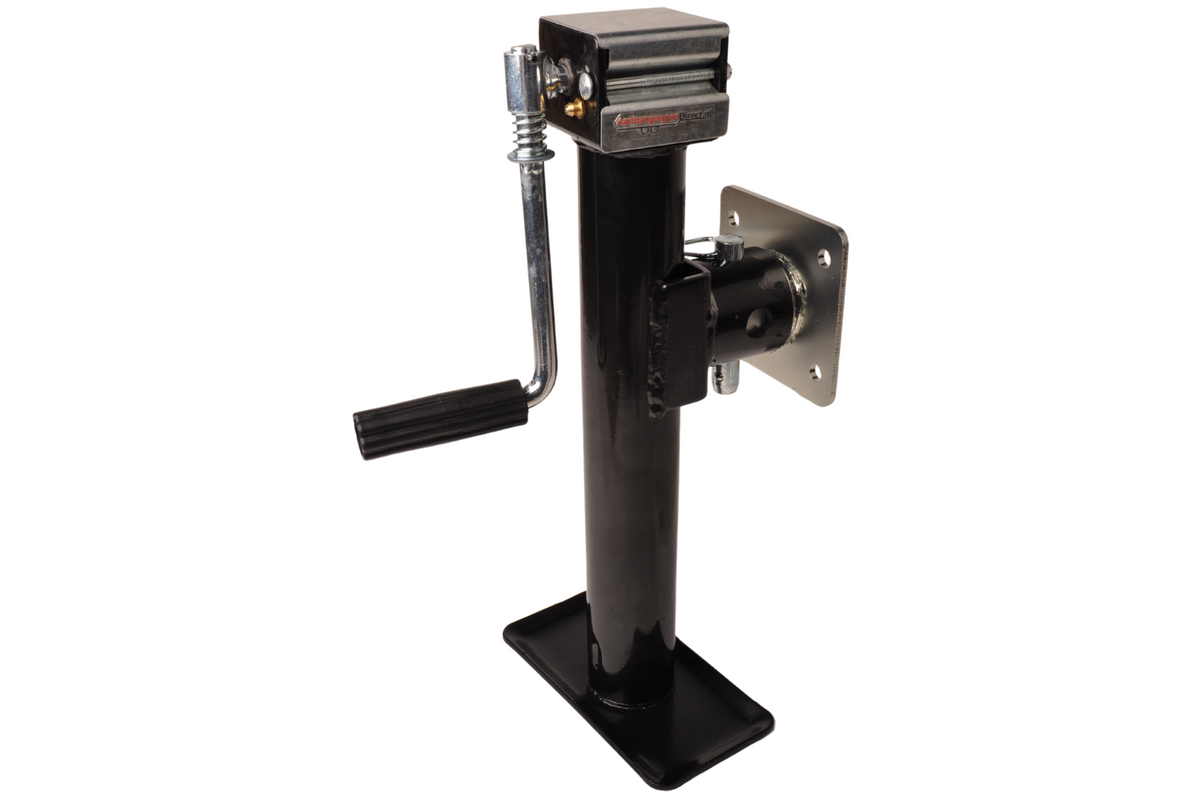

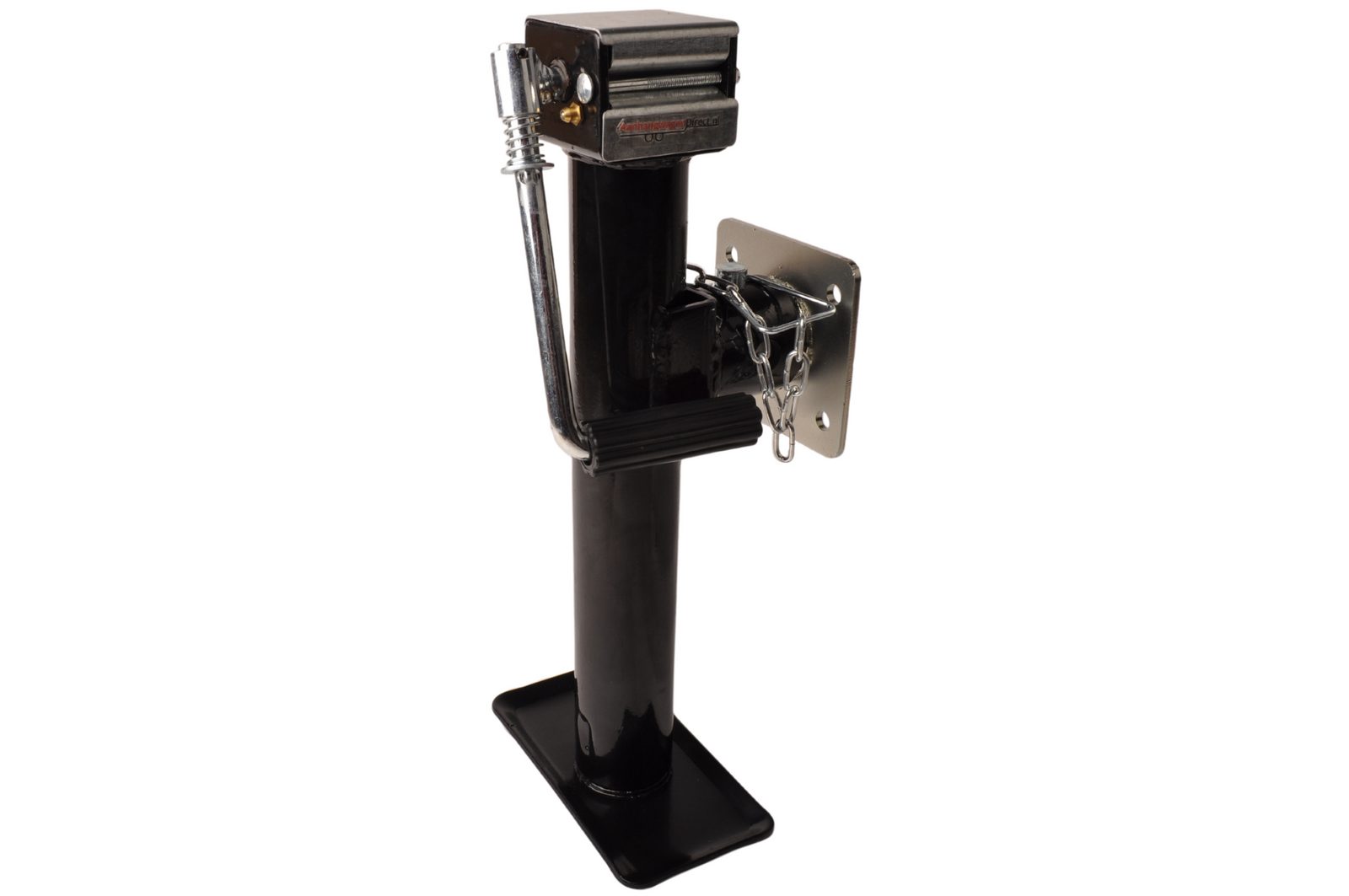

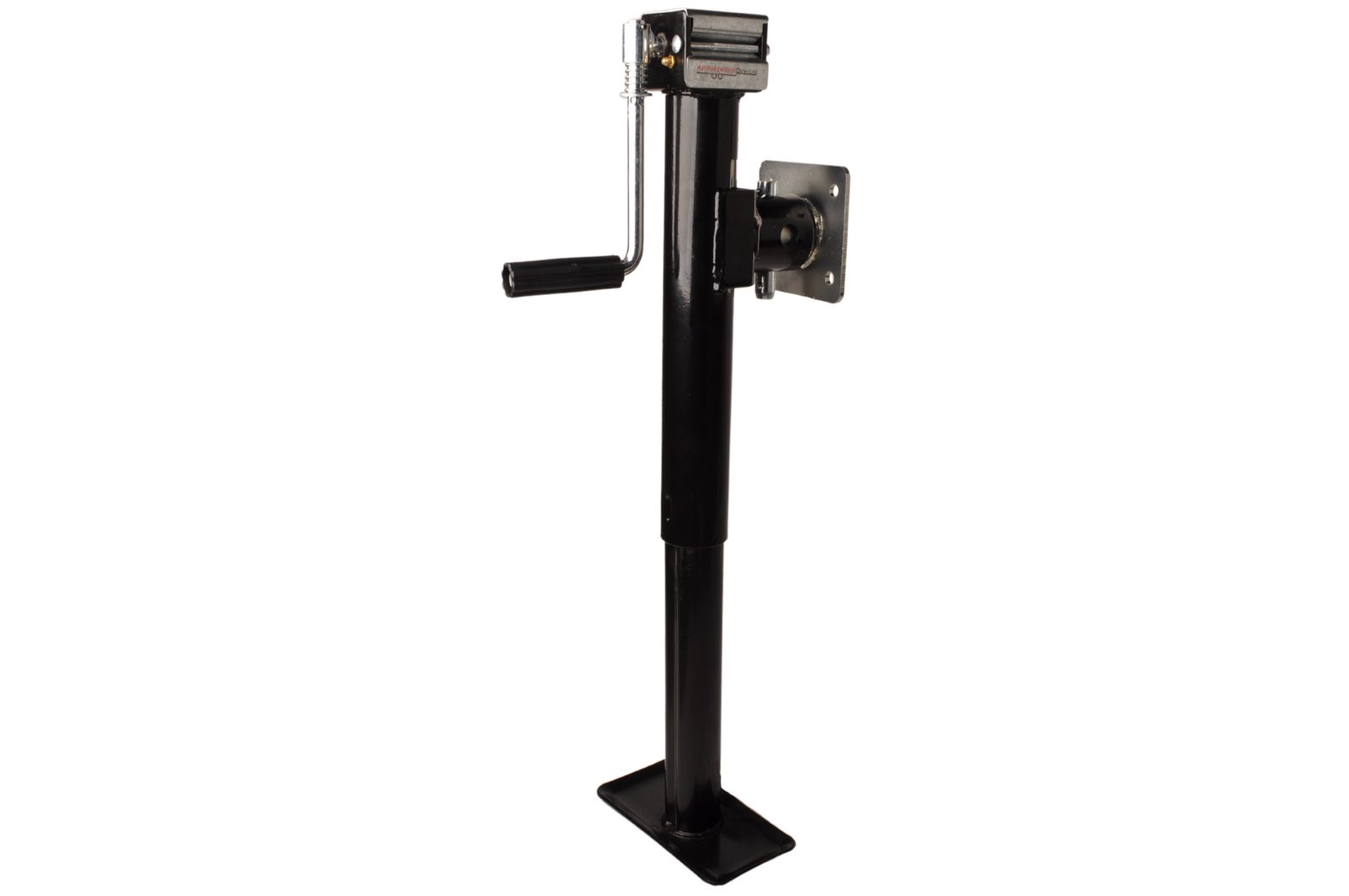

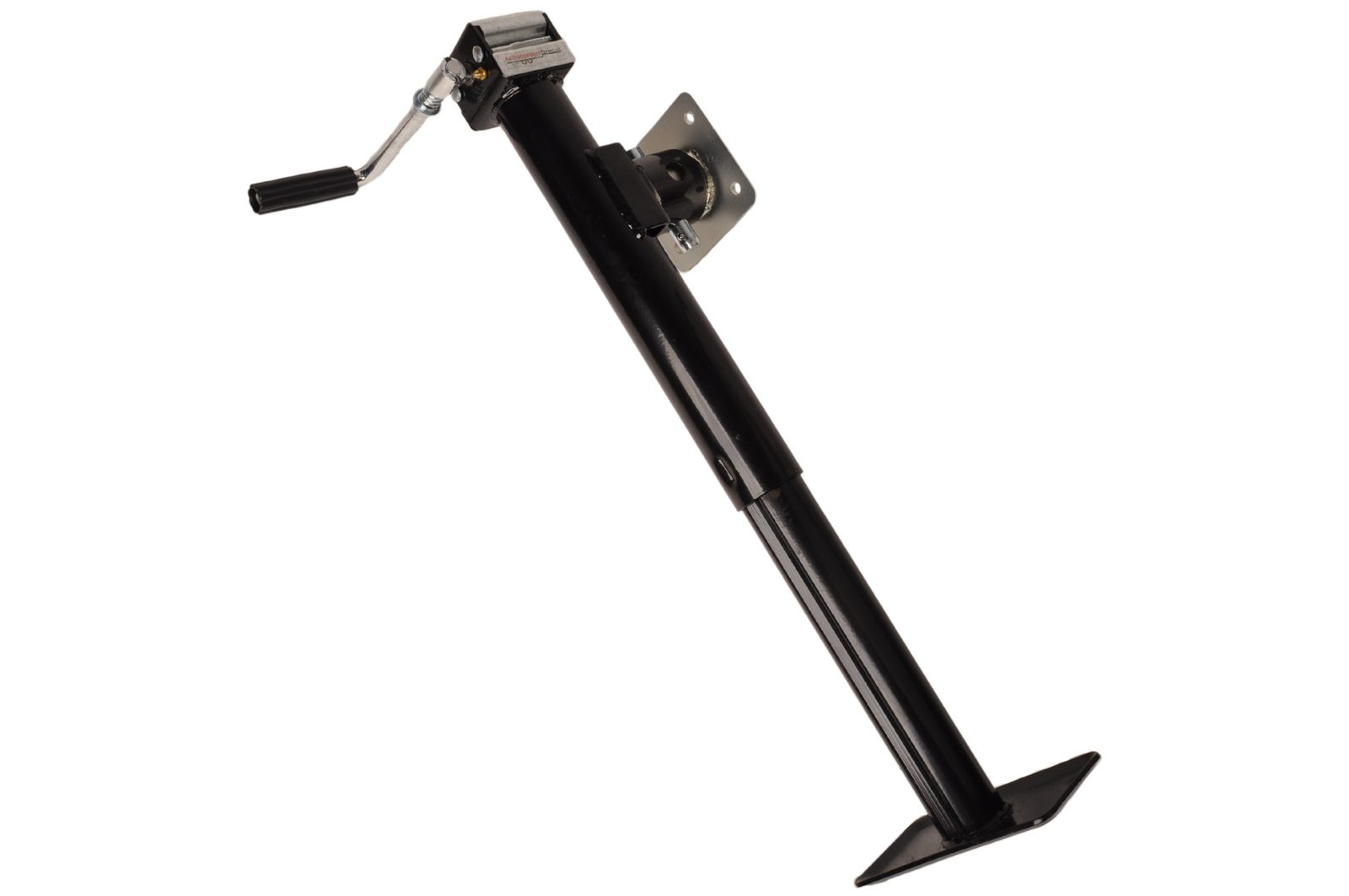

Swivel and wind-down prop stand – 43–70 cm – 1000 kg – incl. flange

Swivelling, wind-down prop stand with a 60 mm tube diameter and a maximum load capacity of no less than 1000 kg. The stand winds out to a maximum height of 70 cm – a total extension of 30 cm. It is supplied with a flange,…

Datasheet
Brand
Cantonal
Quantity
1
Includes

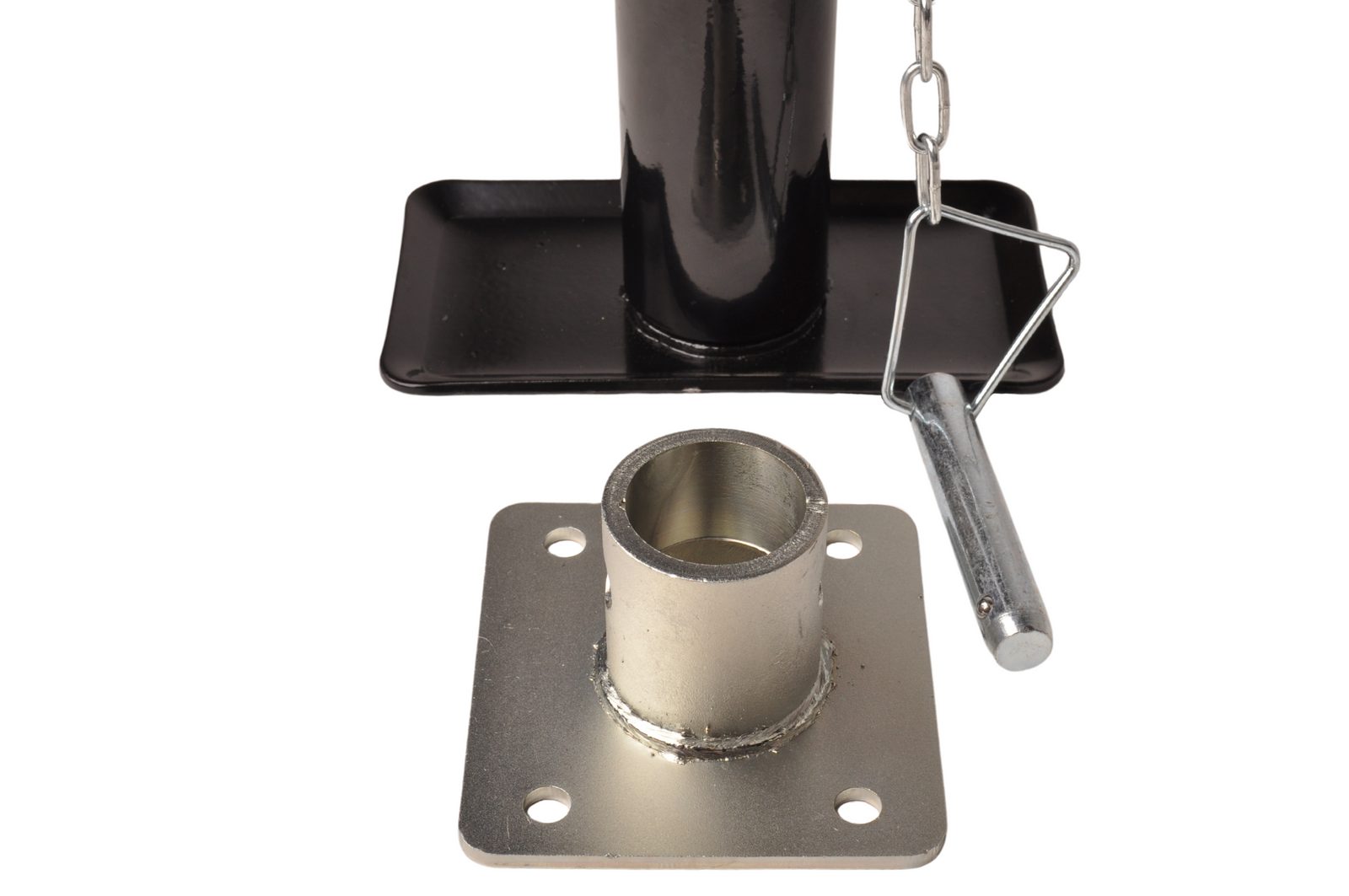

flange / mounting plate
Maximum load
1000 kg
Material
galvanised steel / powder-coated
Colour
black and steel
Weight
6.8 kg
Request information →Technical drawing

Prices and availability through your Cantonal dealer.

Description

Swivelling, wind-down prop stand with a 60 mm tube diameter and a maximum load capacity of no less than 1000 kg. The stand winds out to a maximum height of 70 cm – a total extension of 30 cm. It is supplied with a flange, so you can mount it on your trailer straight away.

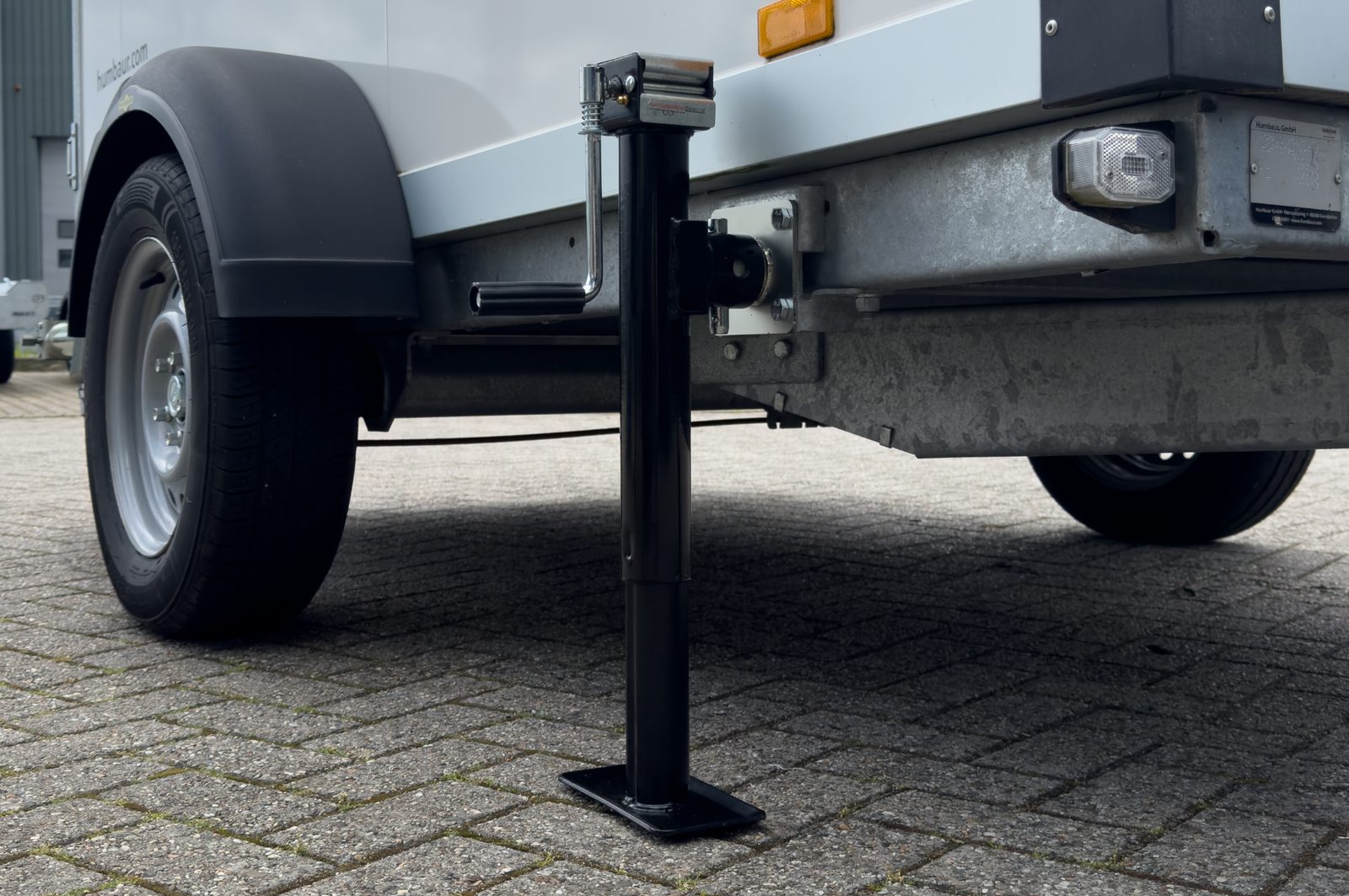

Thanks to its high stability and sturdy design, the stand is also very suitable for food trucks, sales trailers and other mobile applications that must remain level and stable during use. Your vehicle stays firmly in place, even on uneven ground or under intensive use.

Quantity: 1

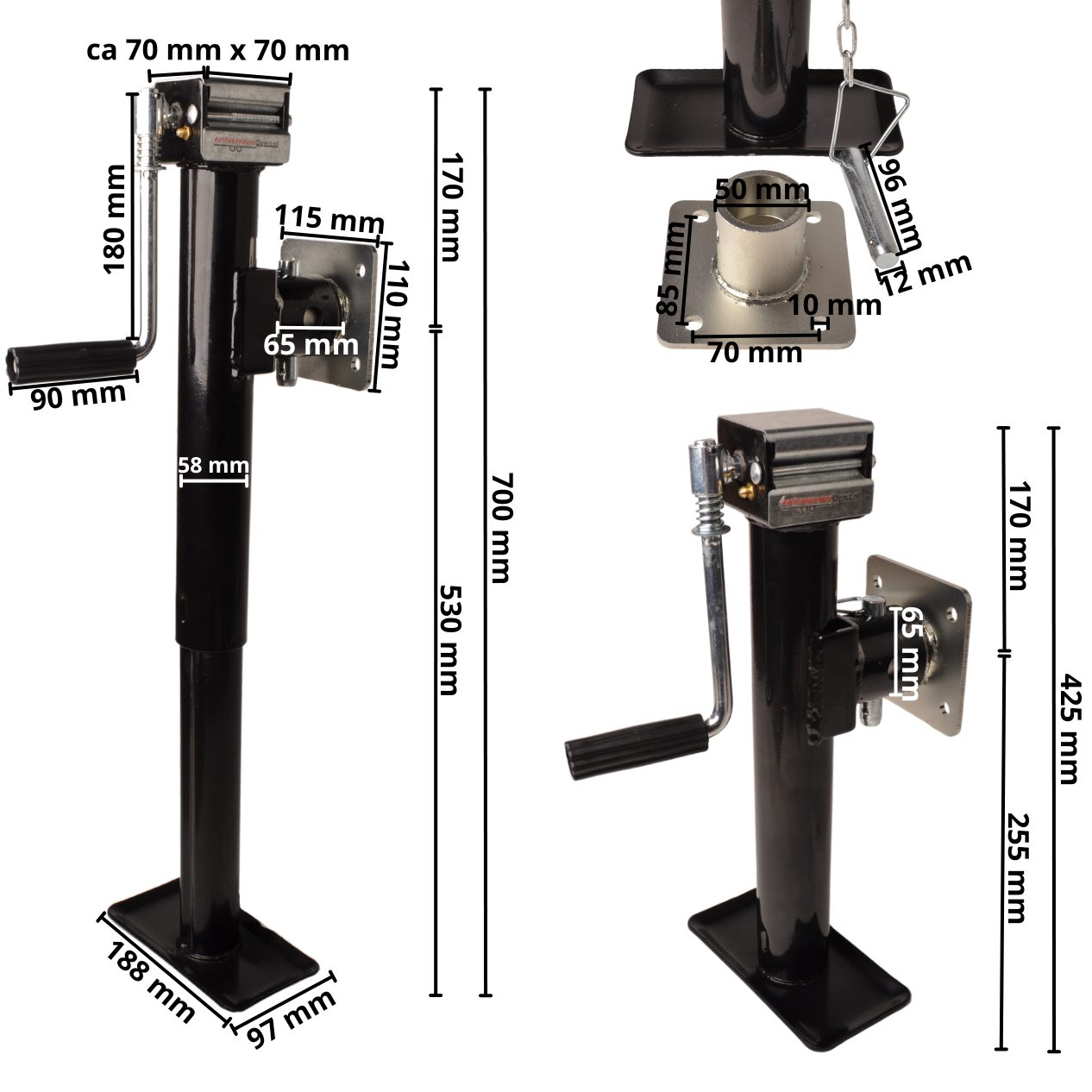

Technical drawing

Technical drawing – Swivel and wind-down prop stand – 43–70 cm – 1000 kg – incl. flange
