SKU 20254896302 · Chassis & Wheels

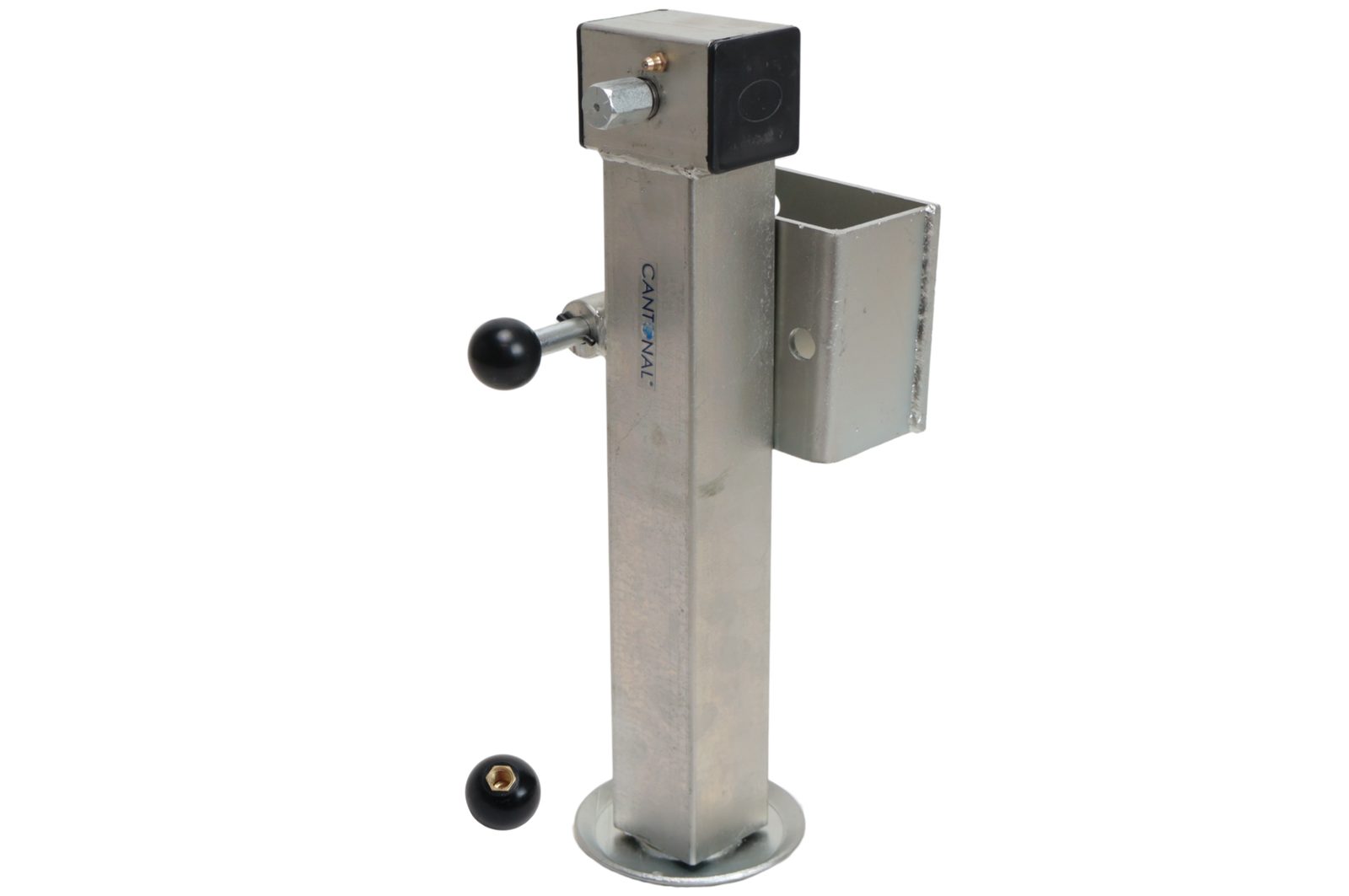

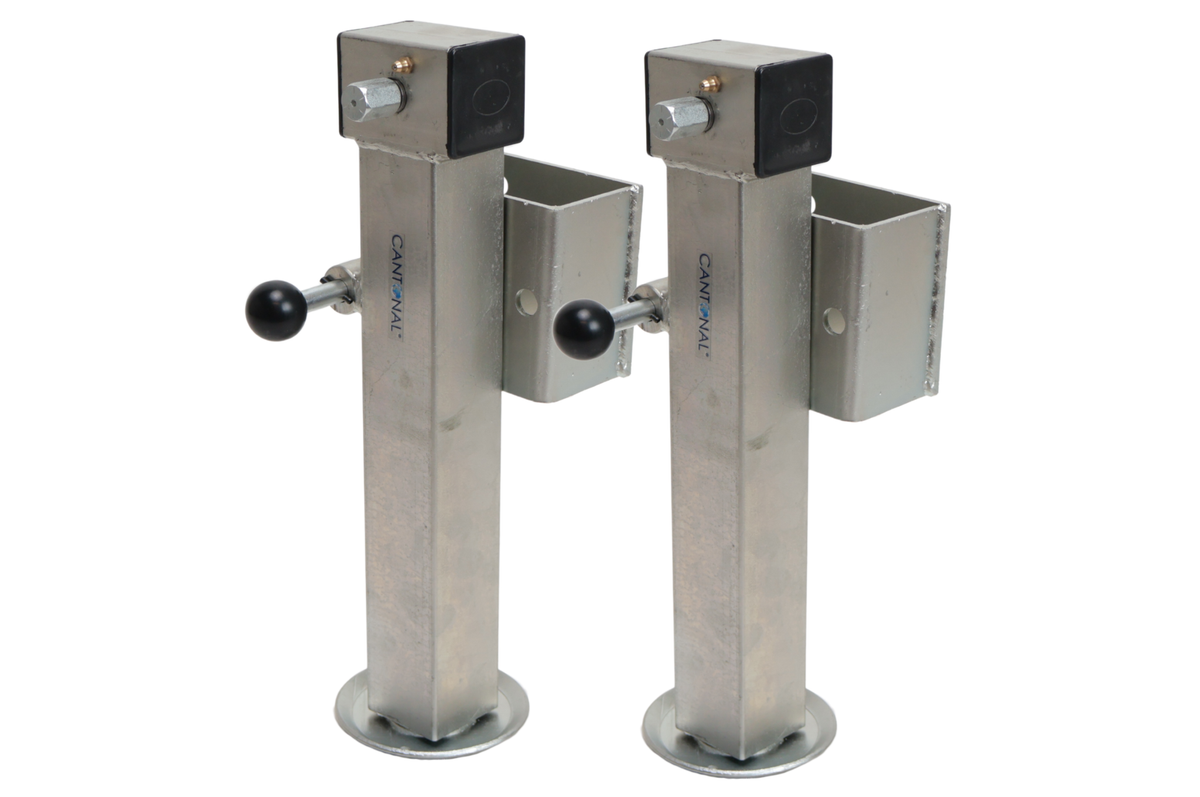

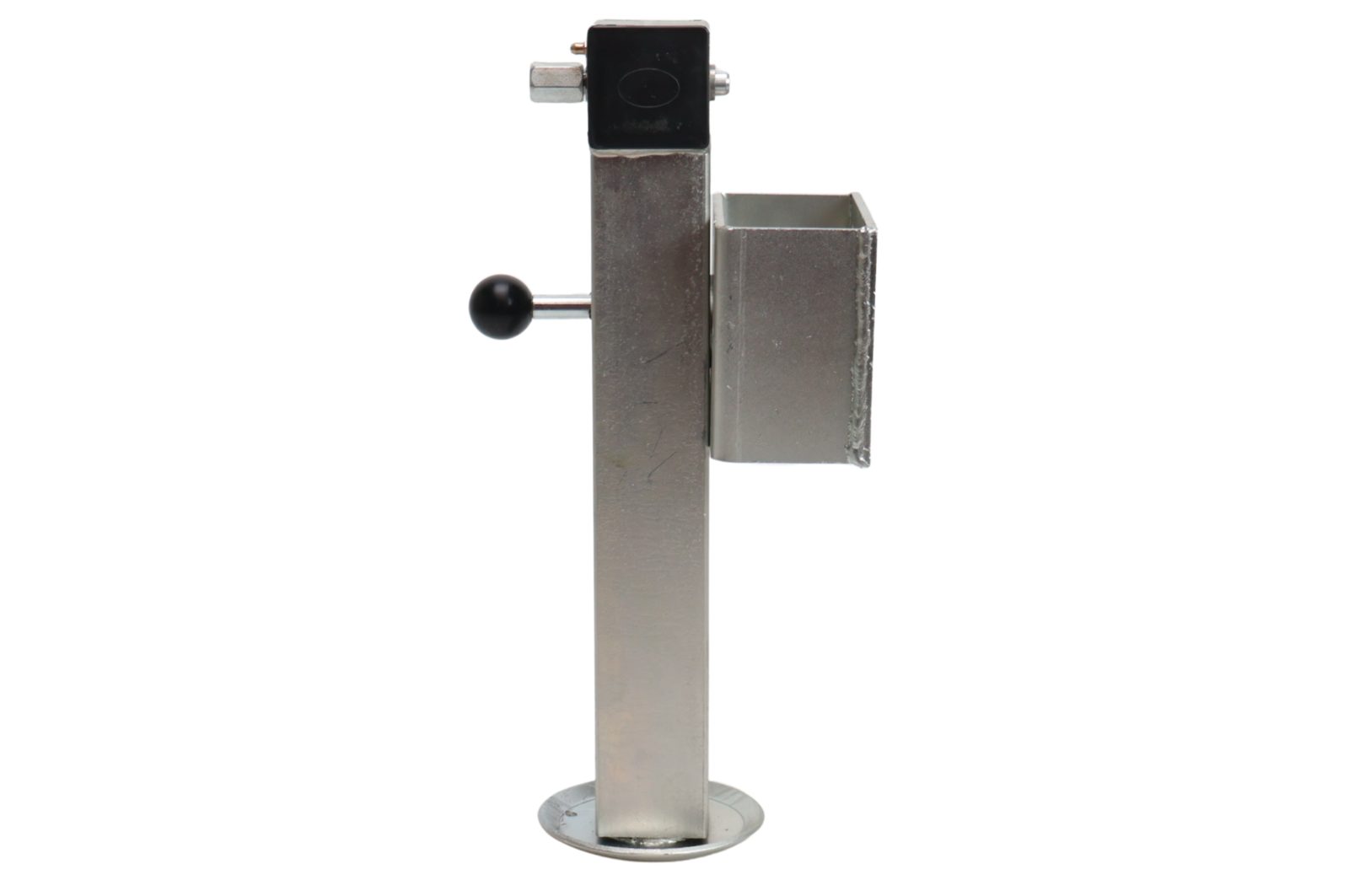

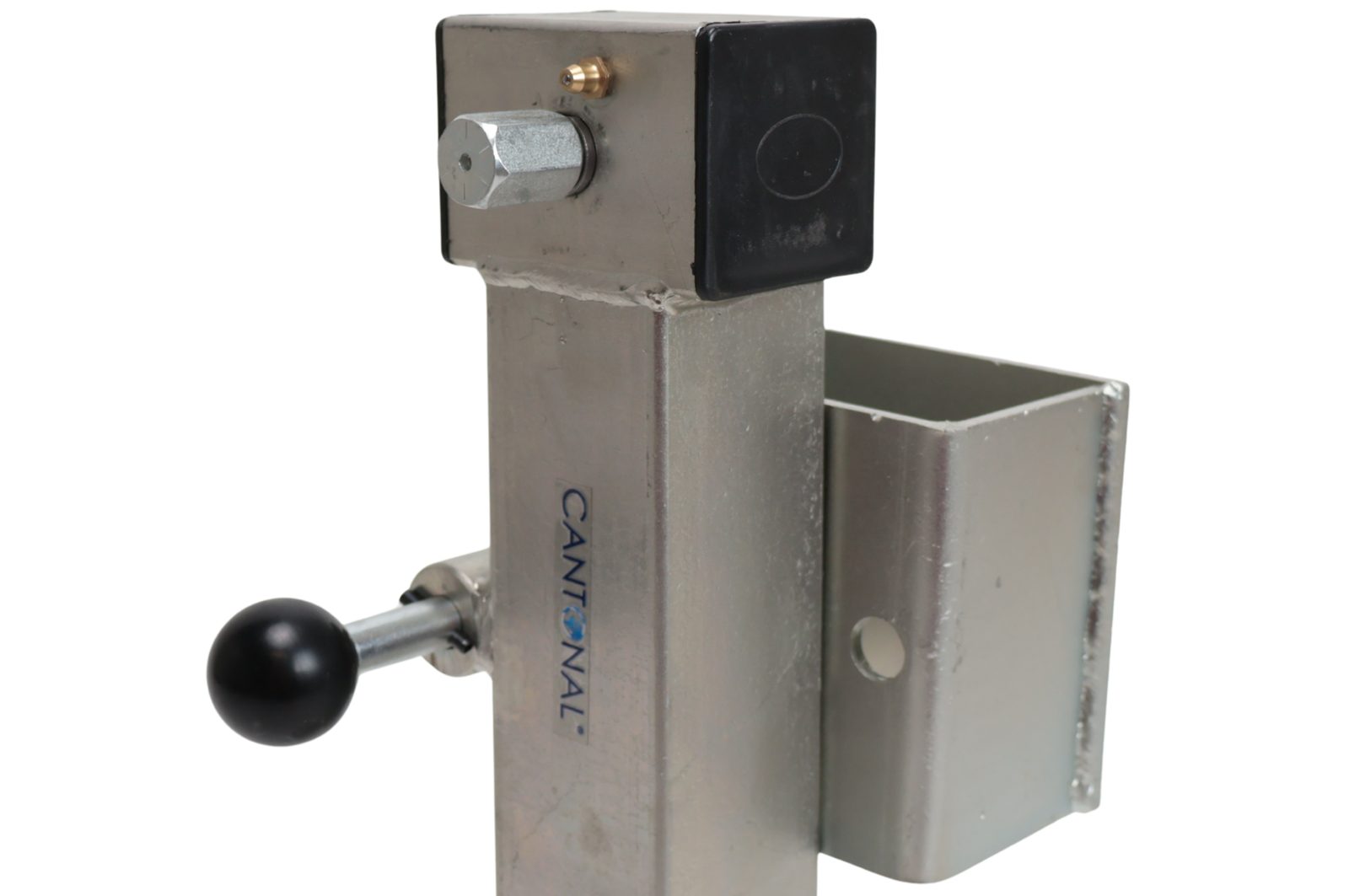

Set of 2 Cantonal wind-down swivel prop stands 1300 kg

Easy-to-operate and adjust Cantonal prop stands with no less than 1300 kg load capacity per stand, letting you stabilise your trailer easily and reliably. These stands feature a flange spacing of 85 mm.

Datasheet
Brand
Cantonal
Maximum support load per stand
1300 kg
Version
extra strong

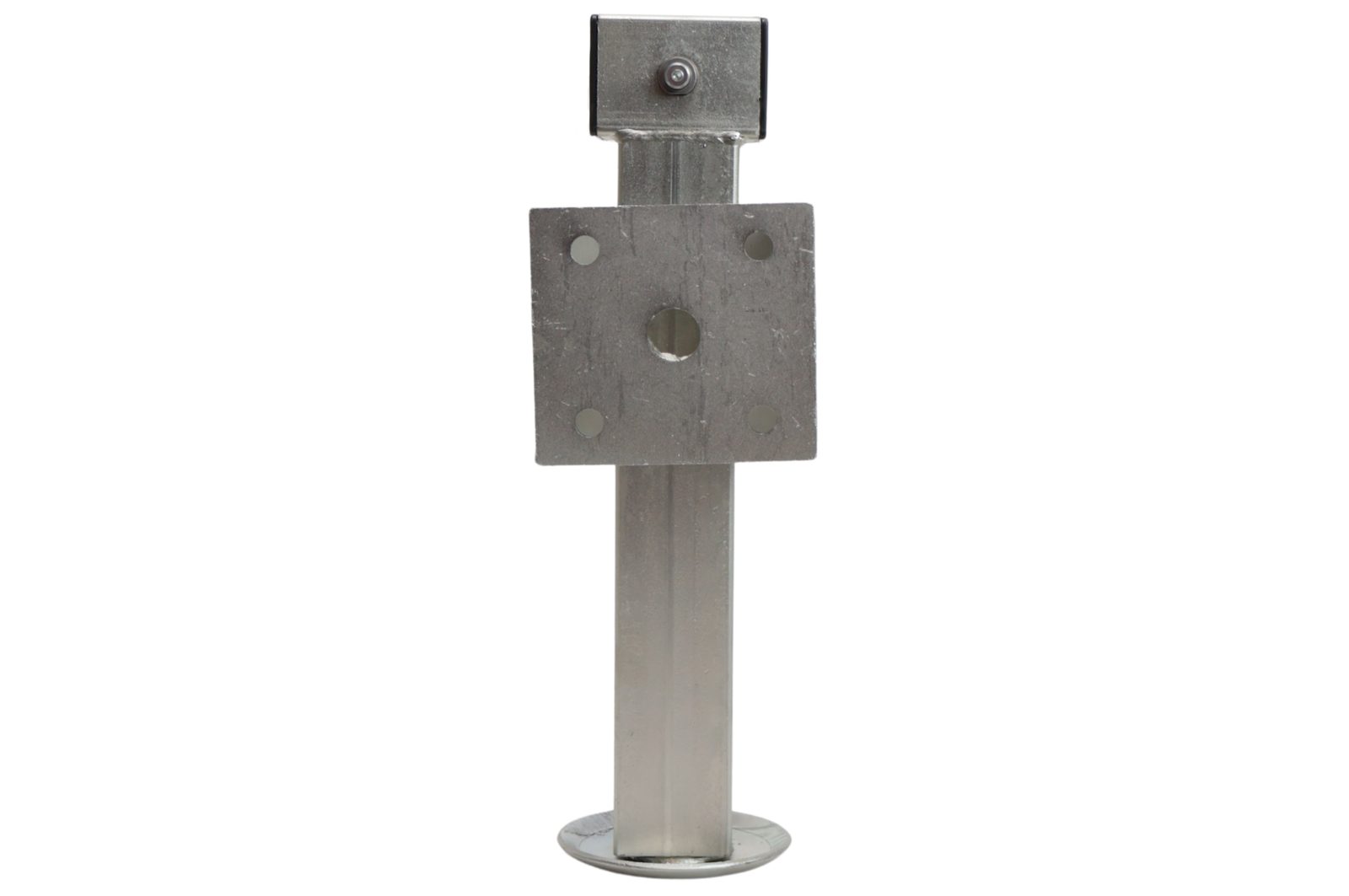

Flange spacing
85 mm (4-hole)
Foot plate diameter
120 mm
Height
405 mm
Stroke
240 mm
Colour
zinc / black
Weight per stand
7.8 kg
Hex drive
SW 19
Request information →Technical drawing

Prices and availability through your Cantonal dealer.

Description

Easy-to-operate and adjust Cantonal prop stands with no less than 1300 kg load capacity per stand, letting you stabilise your trailer easily and reliably. These stands feature a flange spacing of 85 mm.

Excludes: mounting hardware (available separately)

Features

  • Corrosion protection by galvanising

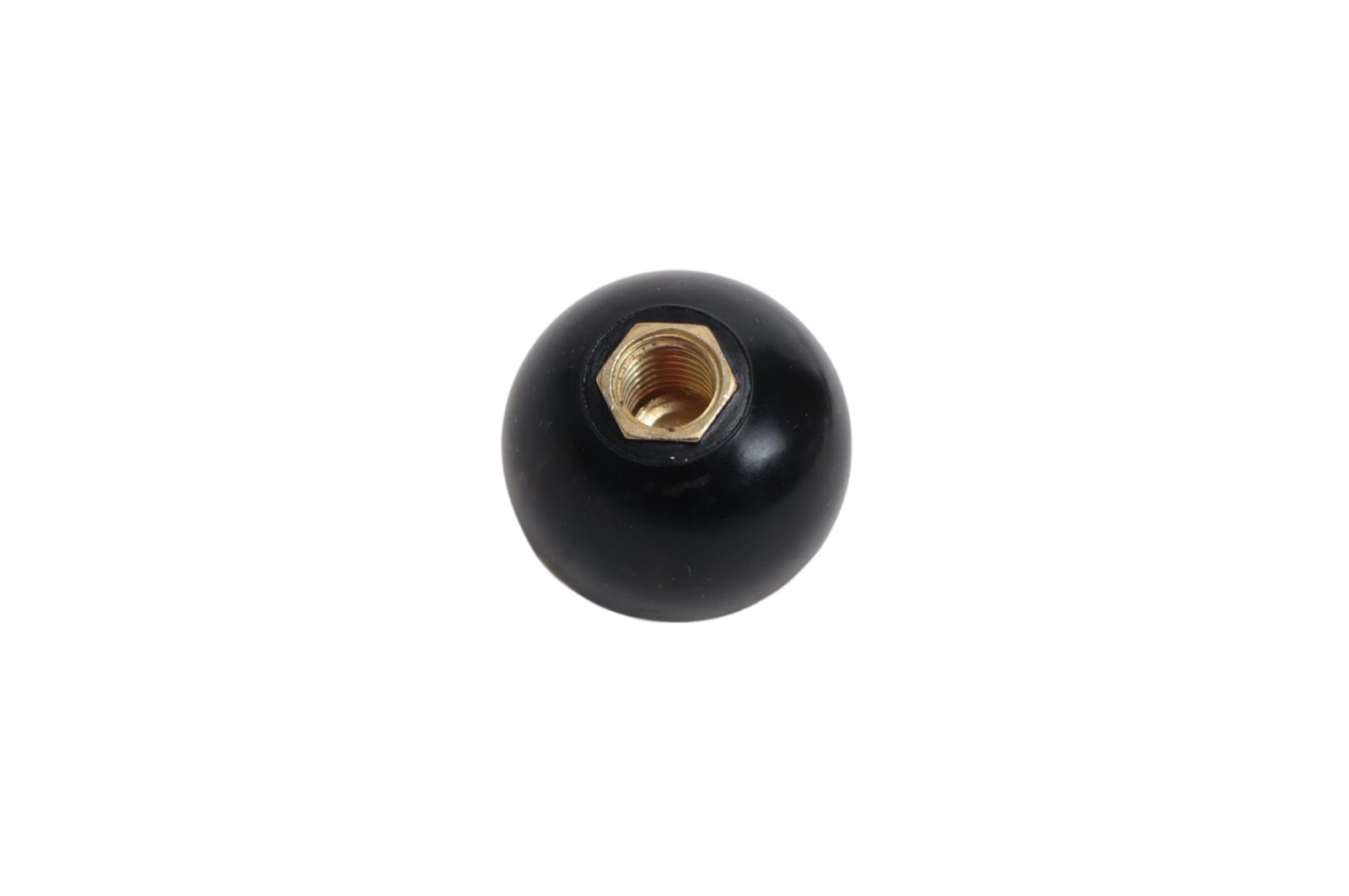

  • Swivel function via spring-loaded bolt with knob
  • Locked position

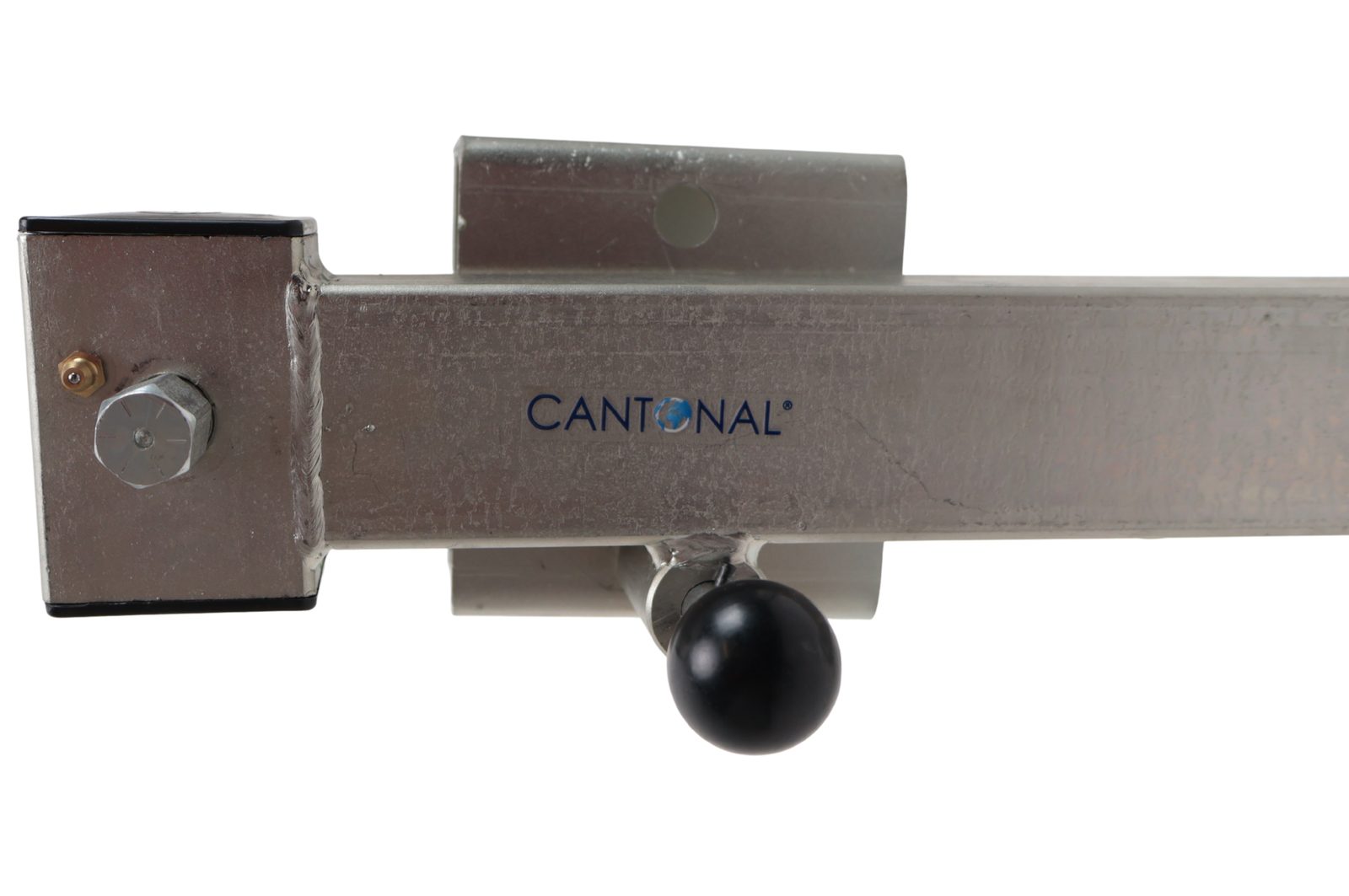

  • Ready to drive: horizontal position, wound in

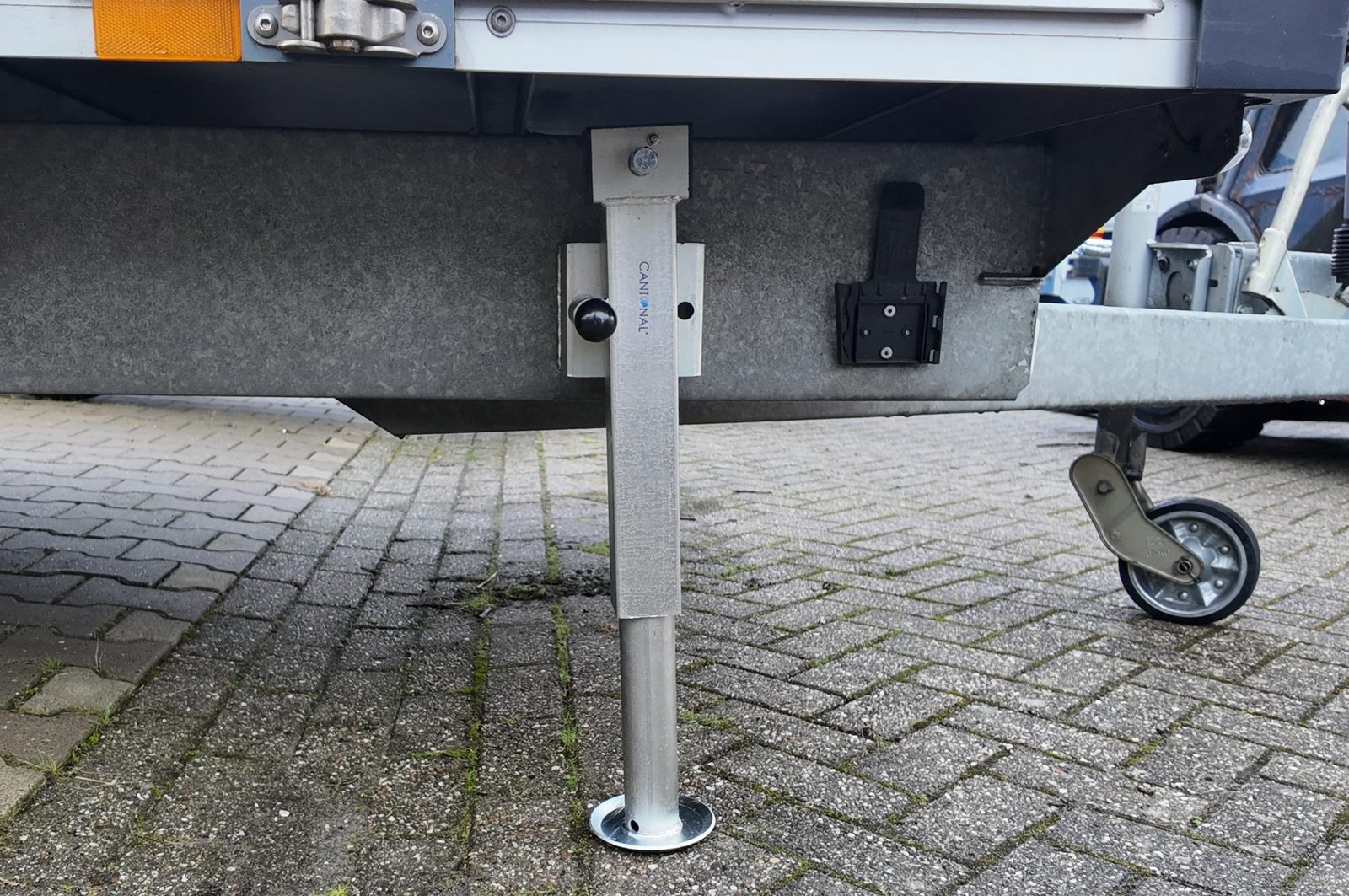

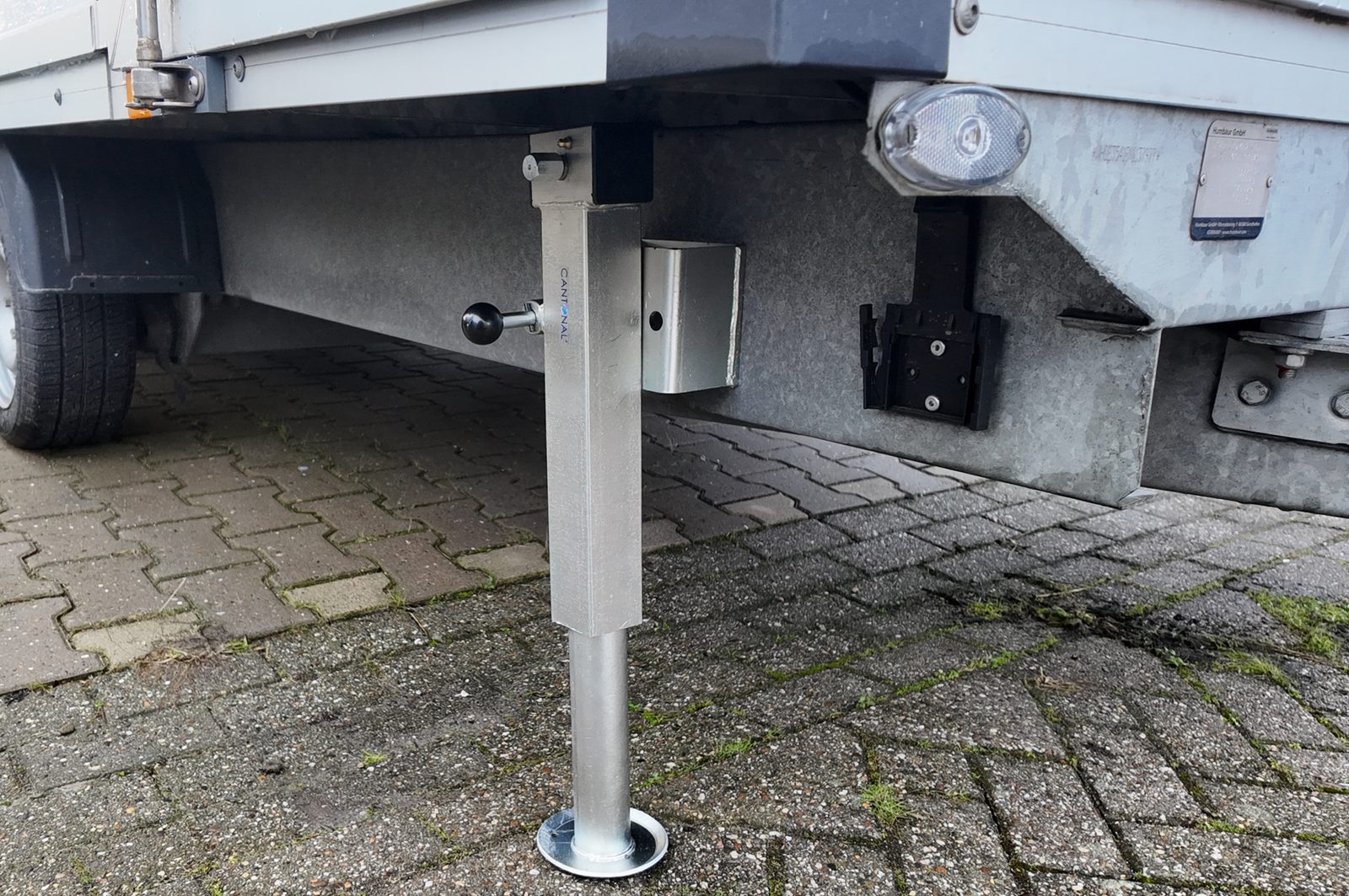

  • Support function: vertical position, wound out
  • Wound up/down with a hexagonal plug-on crank

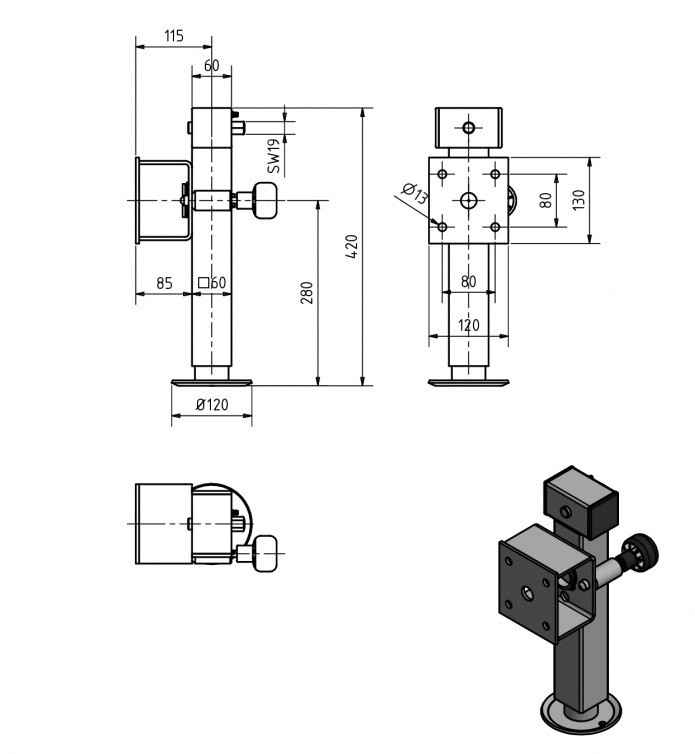

Technical drawing

Technical drawing – Set of 2 Cantonal wind-down swivel prop stands 1300 kg
