Rear light set – Cantonal LED – 4 functions – 105 x 98 x 35 mm – 5-pin connector
Rear light set – Cantonal LED – 4 functions – 105 x 98 x 35 mm – 5-pin connector
Rear light set – Cantonal LED – 4 functions – 105 x 98 x 35 mm – 5-pin connector
Rear light set – Cantonal LED – 4 functions – 105 x 98 x 35 mm – 5-pin connector
SKU 202054605 · Lighting & Electrics

Rear light set – Cantonal LED – 4 functions – 105 x 98 x 35 mm – 5-pin connector

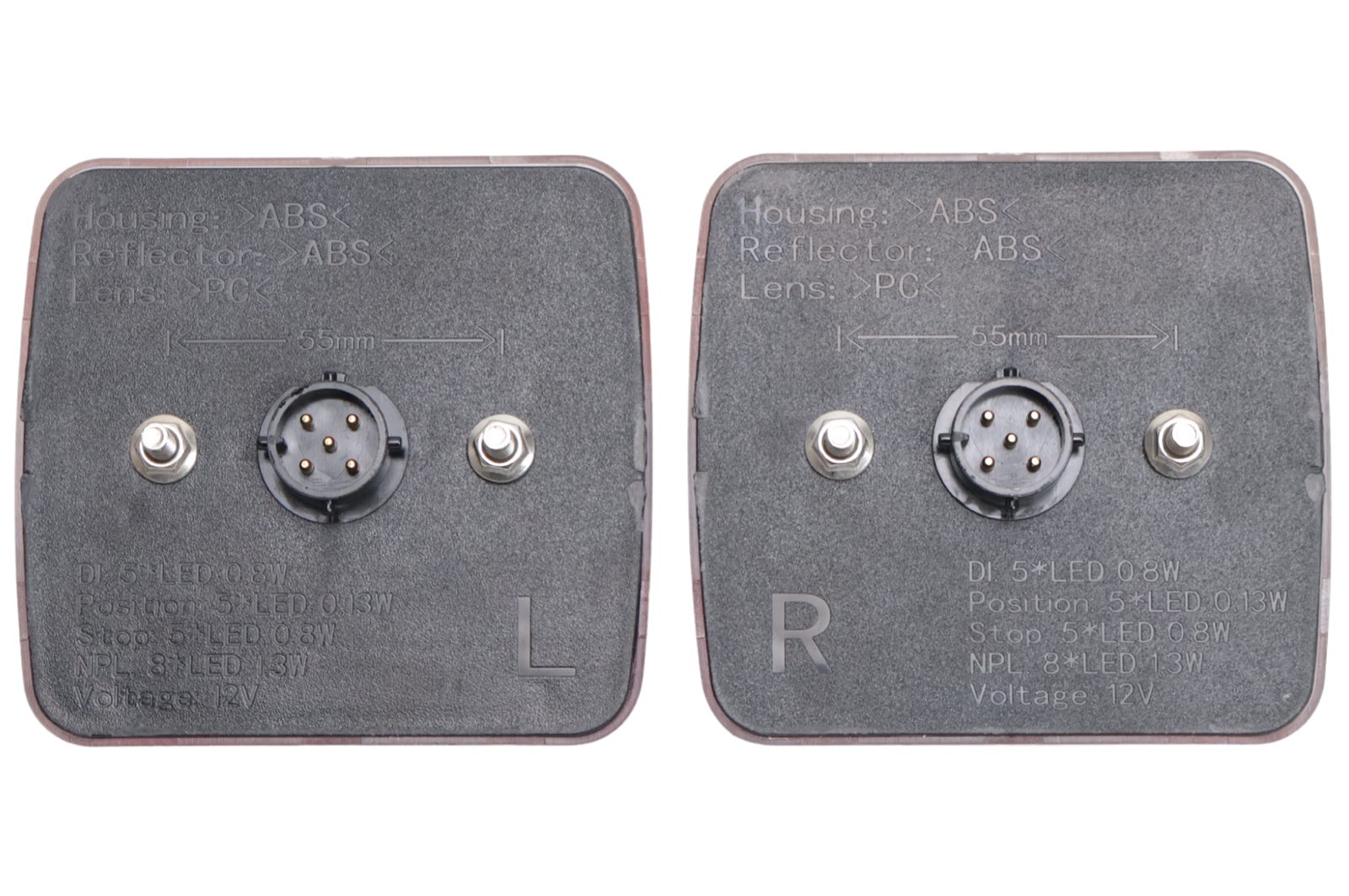

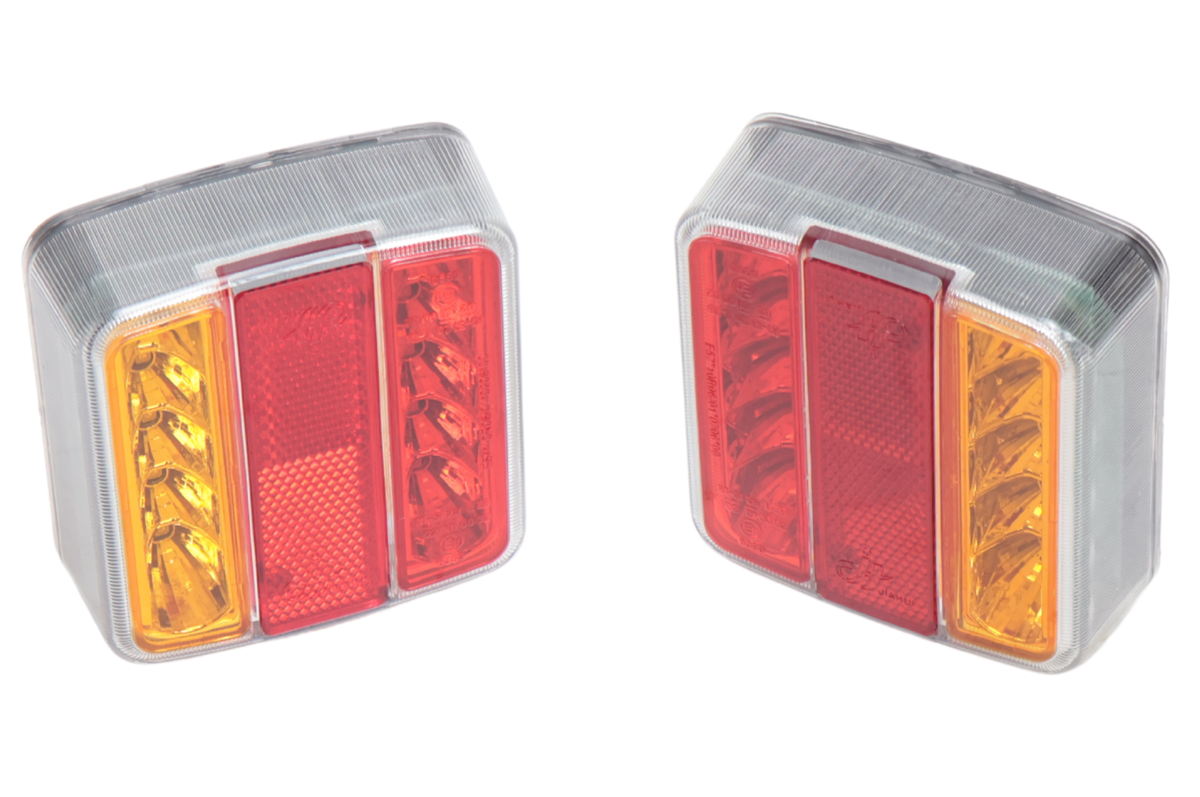

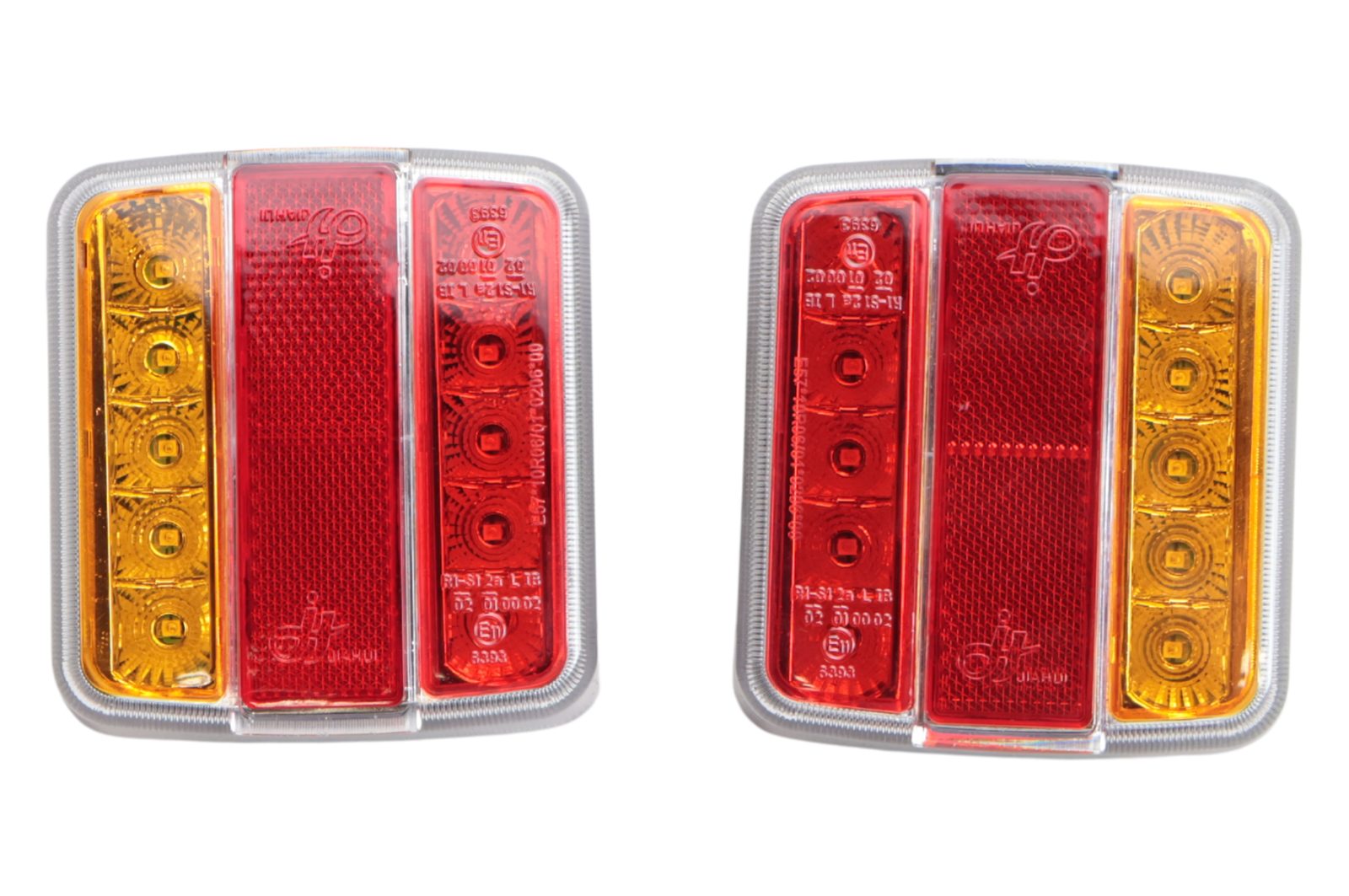

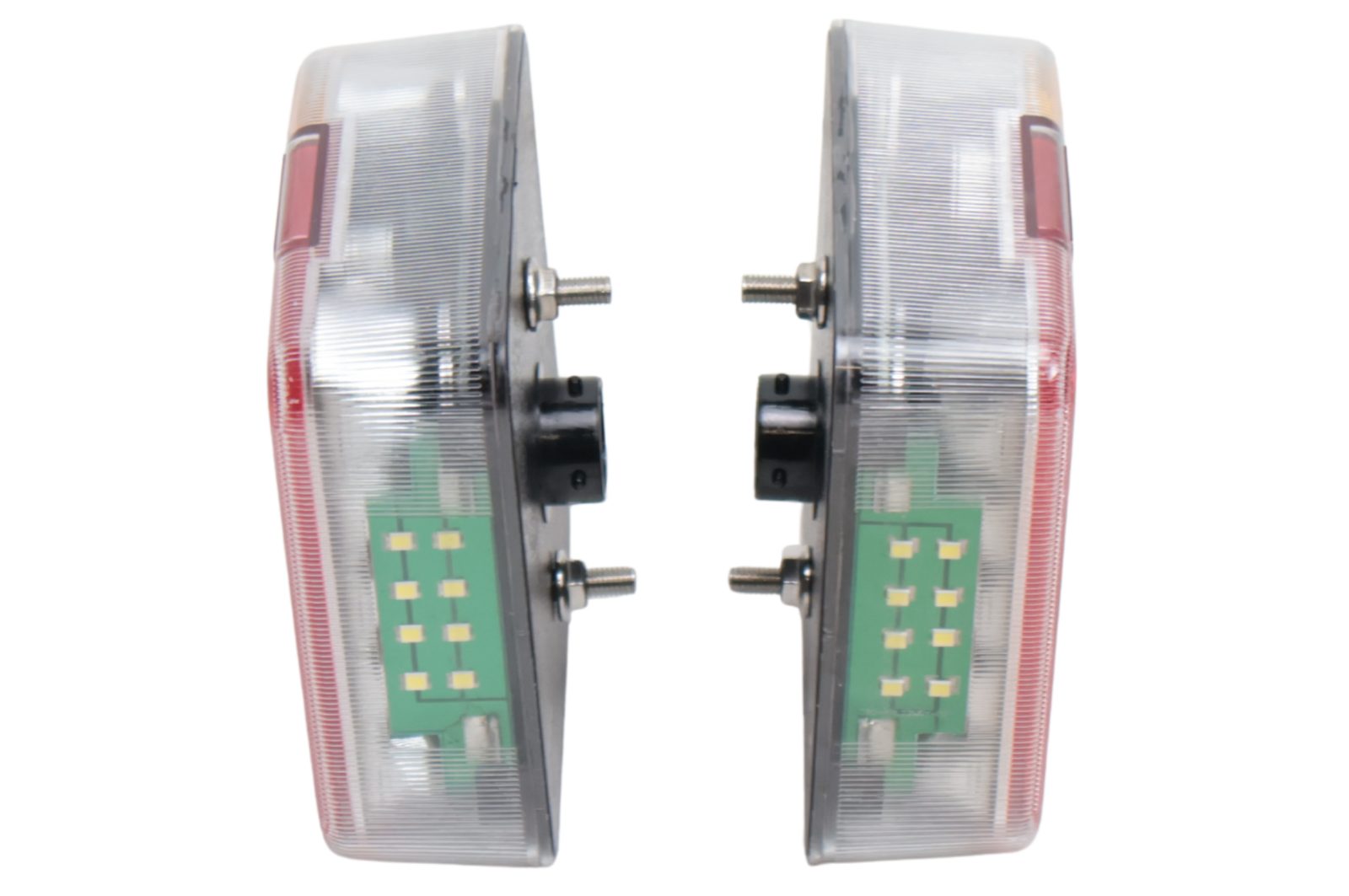

This compact LED rear light set for trailers consists of a left and right rear light, with brake, number plate and indicator light in one housing. Both lights have a 5-pin connector for quick and easy connection. The housing and reflector are made of strong…

Datasheet
Brand
Cantonal
Dimensions (W x H x D)
105 x 98 x 35 mm
Type
LED
Voltage
12 V
Rear light
yes
Brake light
yes
Indicator
yes
Fog light
no
Reflector
yes
Number plate light
yes
Reversing light
no
Fixing centres
55 mm
Weight
371 g
Request information →

Prices and availability through your Cantonal dealer.

Description

This compact LED rear light set for trailers consists of a left and right rear light, with brake, number plate and indicator light in one housing. Both lights have a 5-pin connector for quick and easy connection. The housing and reflector are made of strong ABS plastic and the lens of impact-resistant polycarbonate, together making a durable rear light that can take a knock.

Prevent damage to the lens by fitting a light guard. Complete 13-pin plug & play lighting kits with matching main cable are also available.

Specifications at a glance:

  • Suitable for 12 V systems
  • Plug & Play
  • Brake light: 5 x 0.8 W
  • Tail / number plate light: 8 x 1.3 W
  • Indicator: 5 x 0.8 W
