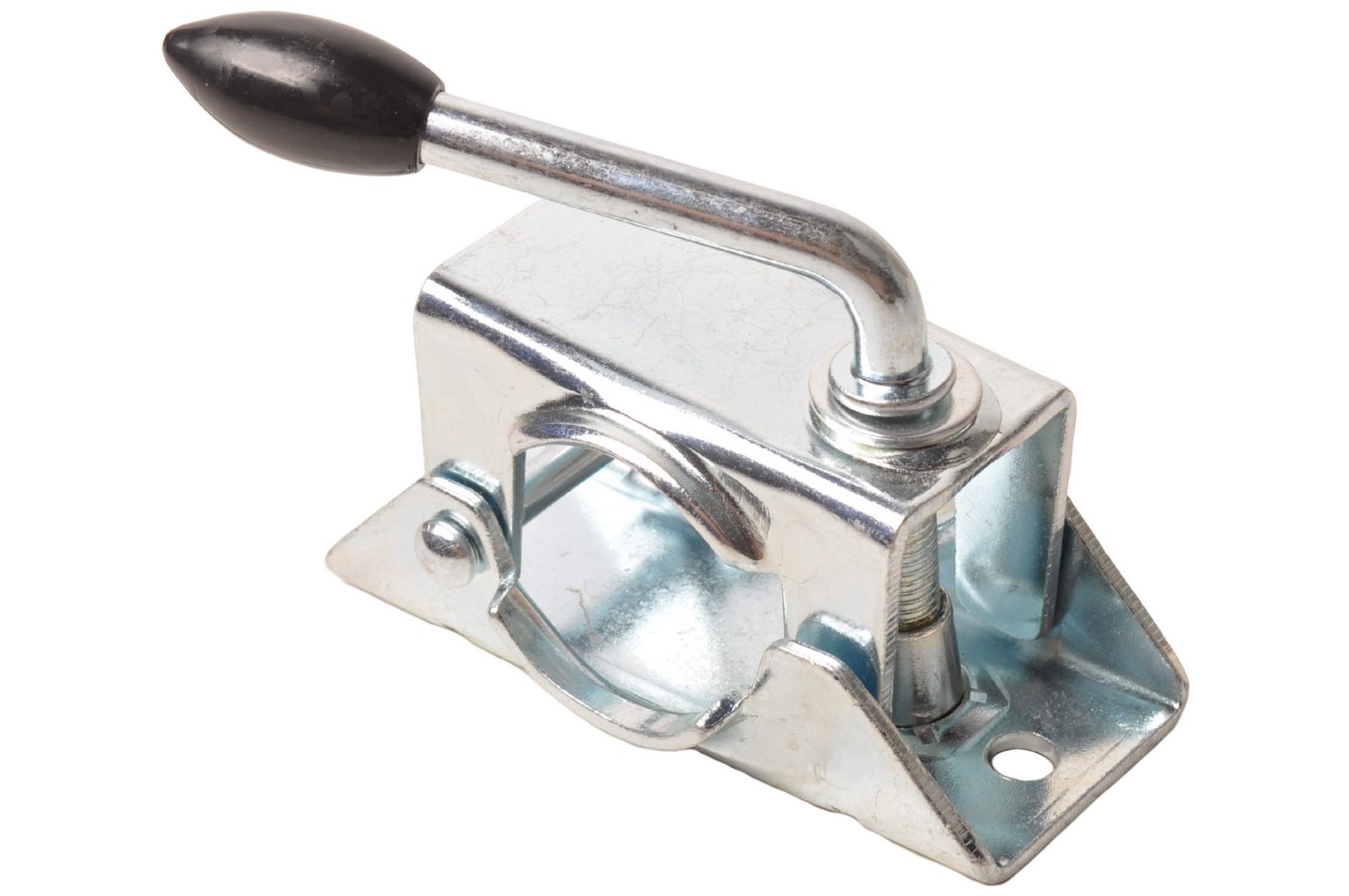

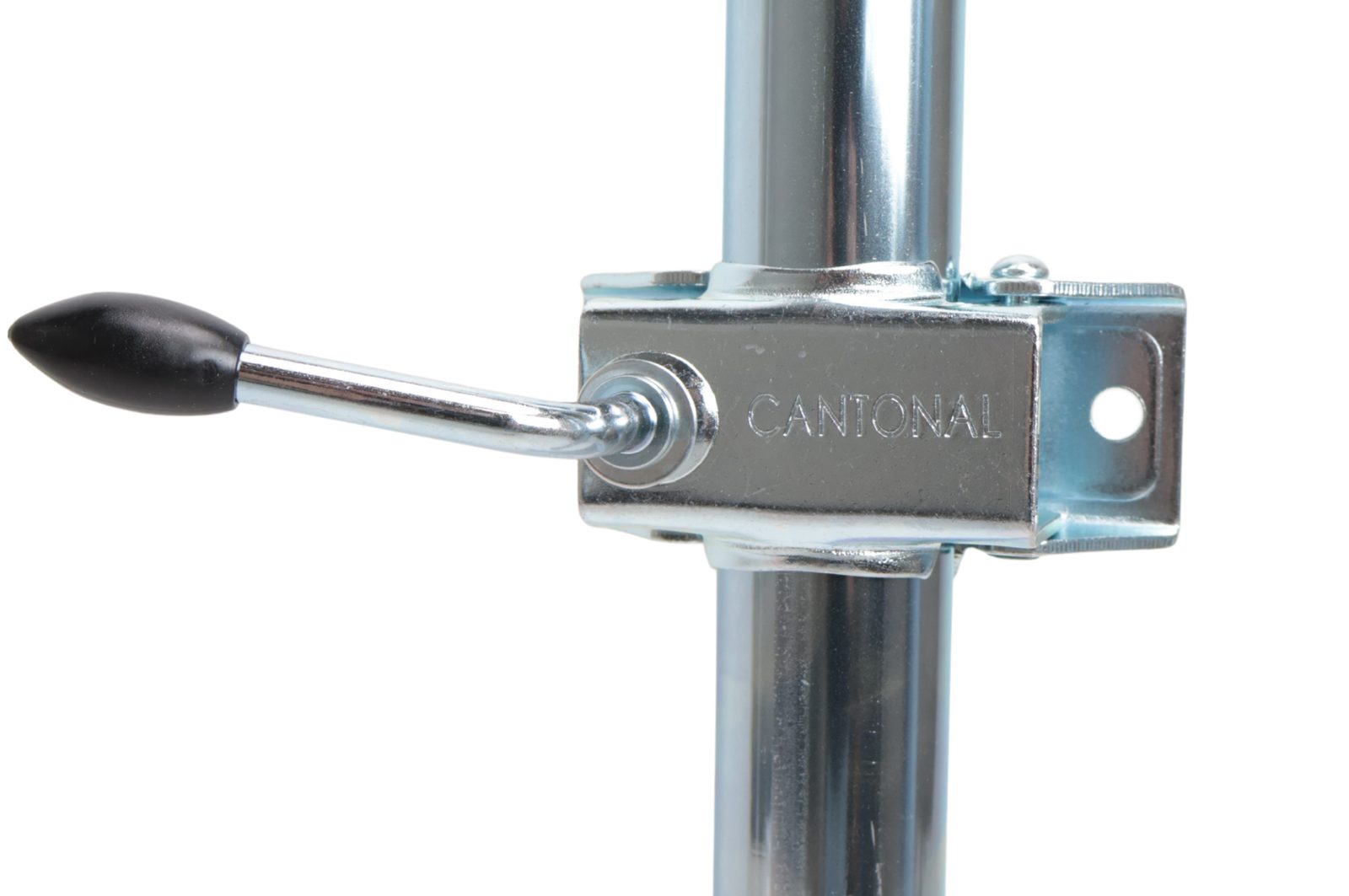

Premium jockey wheel clamp for 48 mm jockey wheels

This jockey wheel clamp is fixed to the drawbar with two bolts and fits all jockey wheels with a 48 mm diameter – the most widely used clamp for unbraked trailers and caravans.

Datasheet
Brand
Cantonal
Nose weight
250 kg
Width
130 mm
Height
55 mm
Mounting hole spacing
105 mm
Hole diameter
11 mm
Thread diameter
12 mm
Suitable for tube
48 mm

Prices and availability through your Cantonal dealer.

Description

This jockey wheel clamp is fixed to the drawbar with two bolts and fits all jockey wheels with a 48 mm diameter – the most widely used clamp for unbraked trailers and caravans.

Premium-quality galvanised steel clamp with a fine thread and a rubber cap on the handle, built for years of use.

Tip: no holes in the drawbar? Use a drawbar clamp to fit this jockey wheel clamp easily.

Suitable for tube: 48 mm

Nose weight: 250 kg

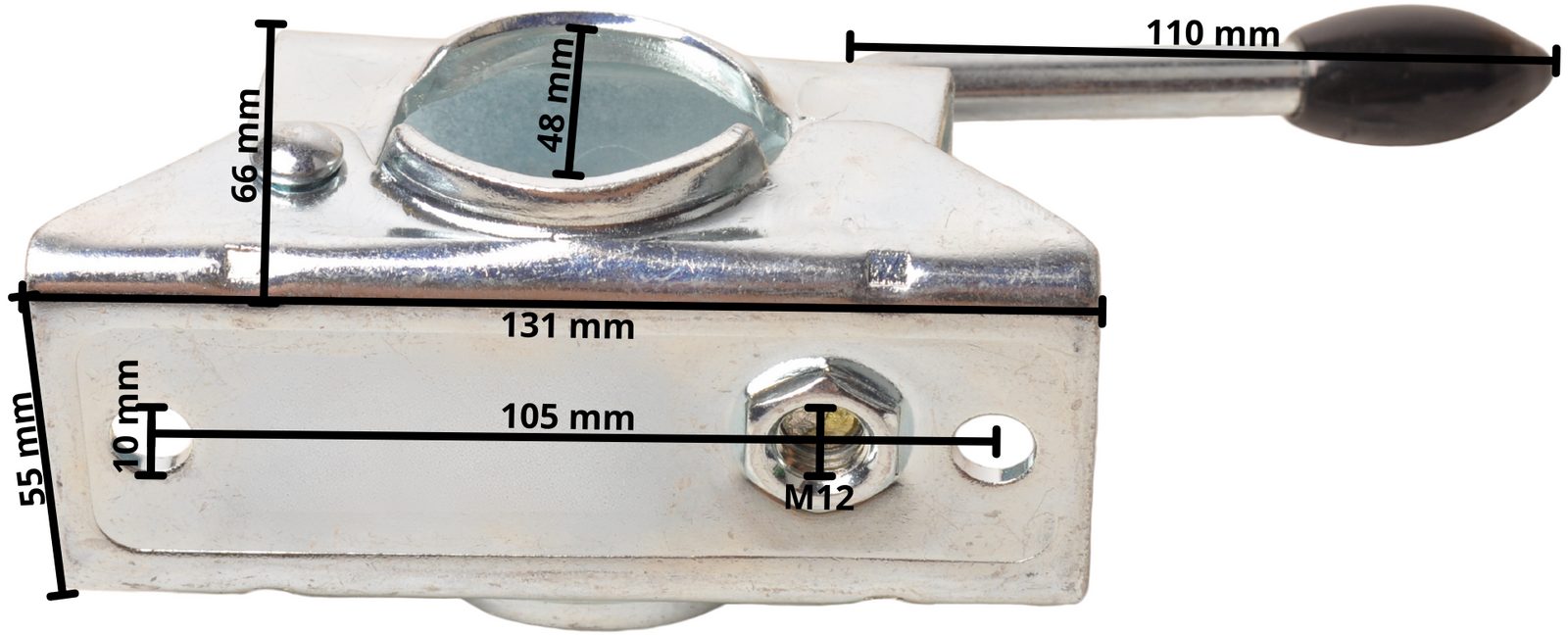

Technical drawing

Technical drawing – Premium jockey wheel clamp for 48 mm jockey wheels
