SKU 201802202 · Chassis & Wheels

Cantonal swivel and wind-down prop stand 1300 kg – flange spacing 85 mm (4-hole)

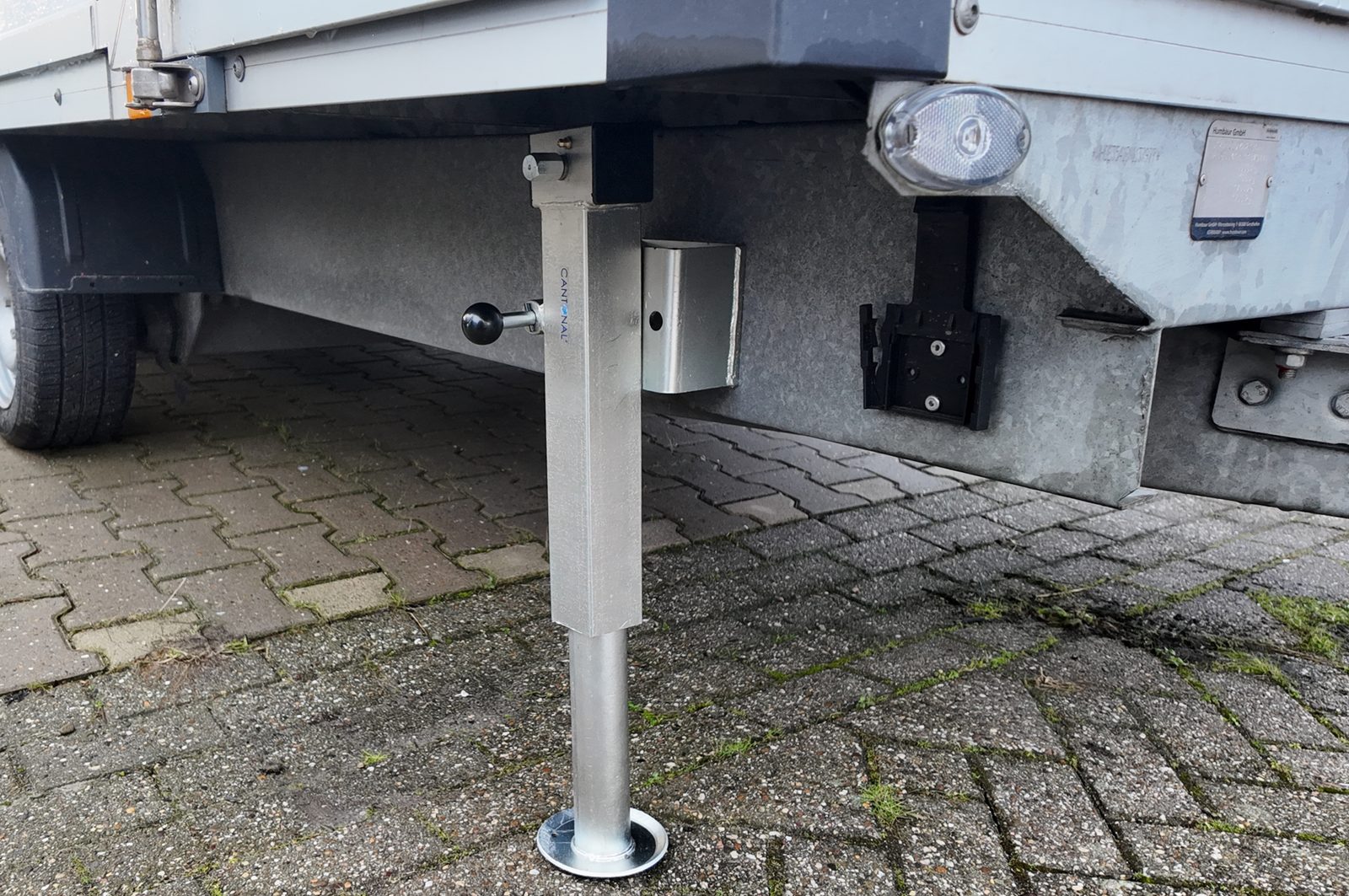

This Cantonal swivelling, wind-down prop stand is suitable for firmly supporting and stabilising a trailer. With a maximum support load of 1300 kg per stand, it is an extra-strong version for professional and intensive use.

Datasheet
Brand
Cantonal
Quantity
1
Maximum support load
1300 kg
Version
extra strong
Flange spacing
85 mm (4-hole)
Foot plate diameter
120 mm
Height
405 mm
Stroke
240 mm
Colour
zinc / black
Weight
7.8 kg
Hex drive
SW 19
Excludes
mounting hardware (available separately)
Request information →Technical drawing

Prices and availability through your Cantonal dealer.

Description

This Cantonal swivelling, wind-down prop stand is suitable for firmly supporting and stabilising a trailer. With a maximum support load of 1300 kg per stand, it is an extra-strong version for professional and intensive use.

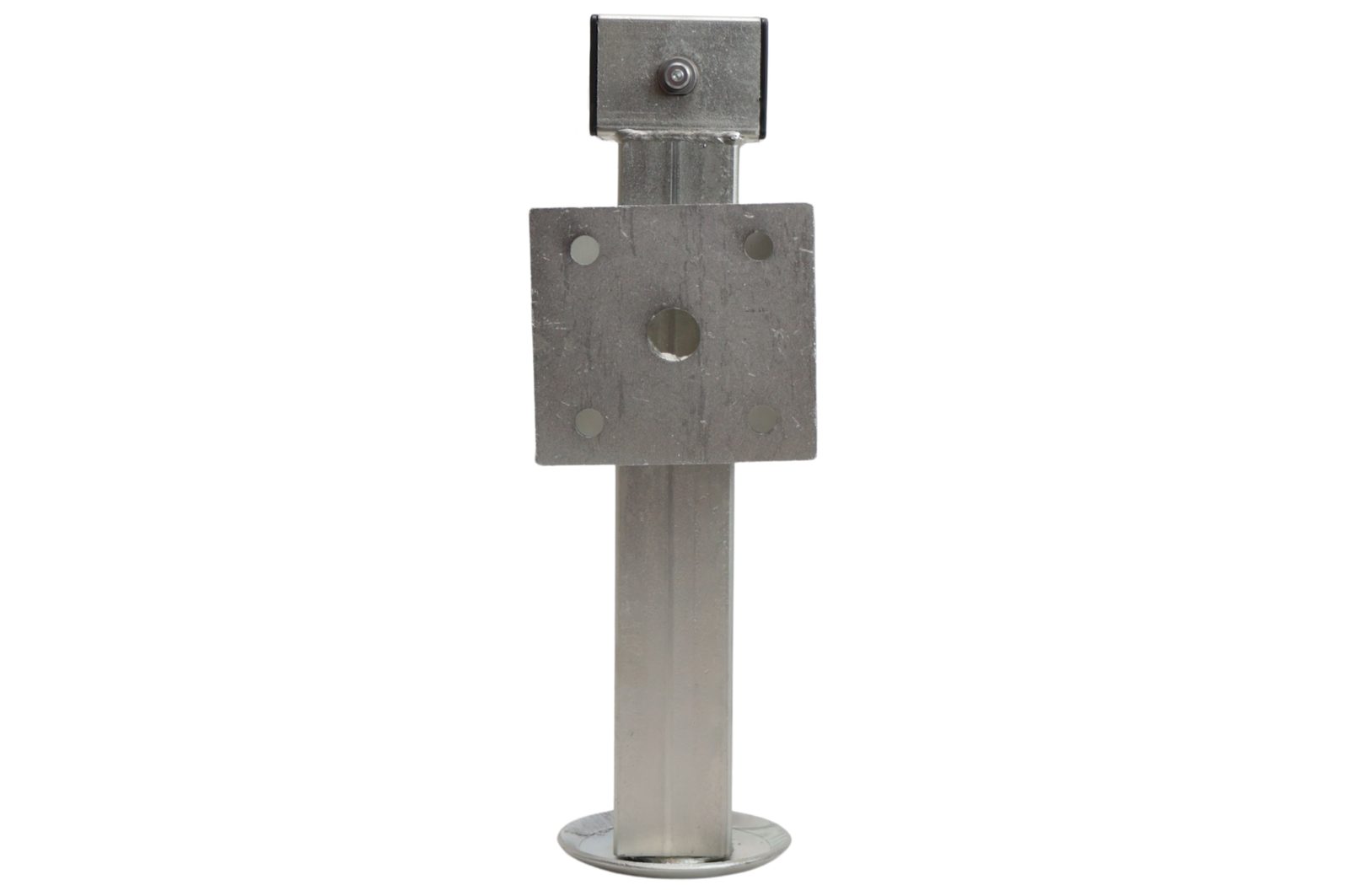

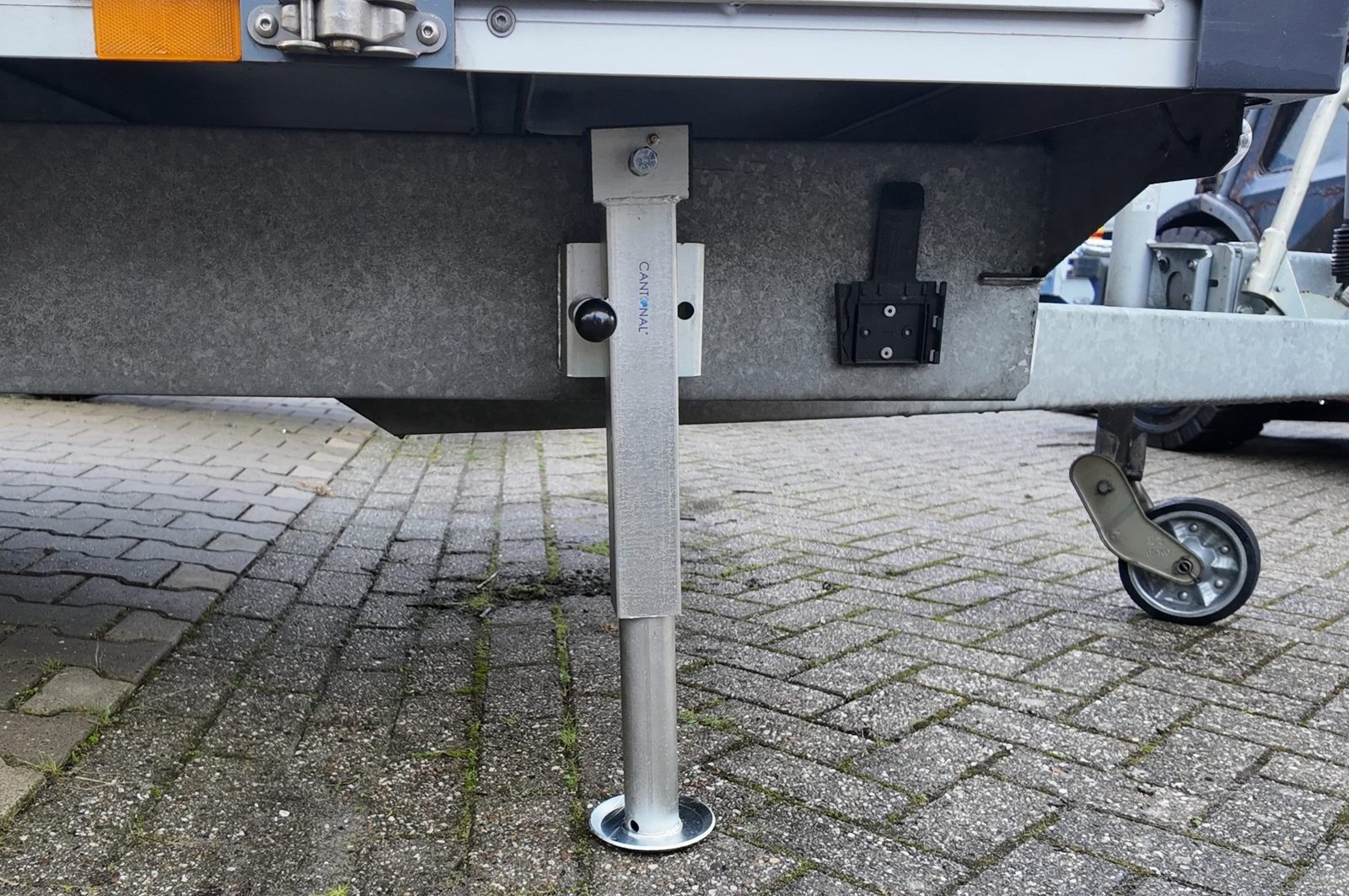

The stand has a 4-hole flange with 85 mm spacing, making it suitable for trailers that use this specific mounting distance. The swivel function lets you set the stand horizontal while driving and vertical when support is needed.

Features

  • Corrosion protection by galvanising

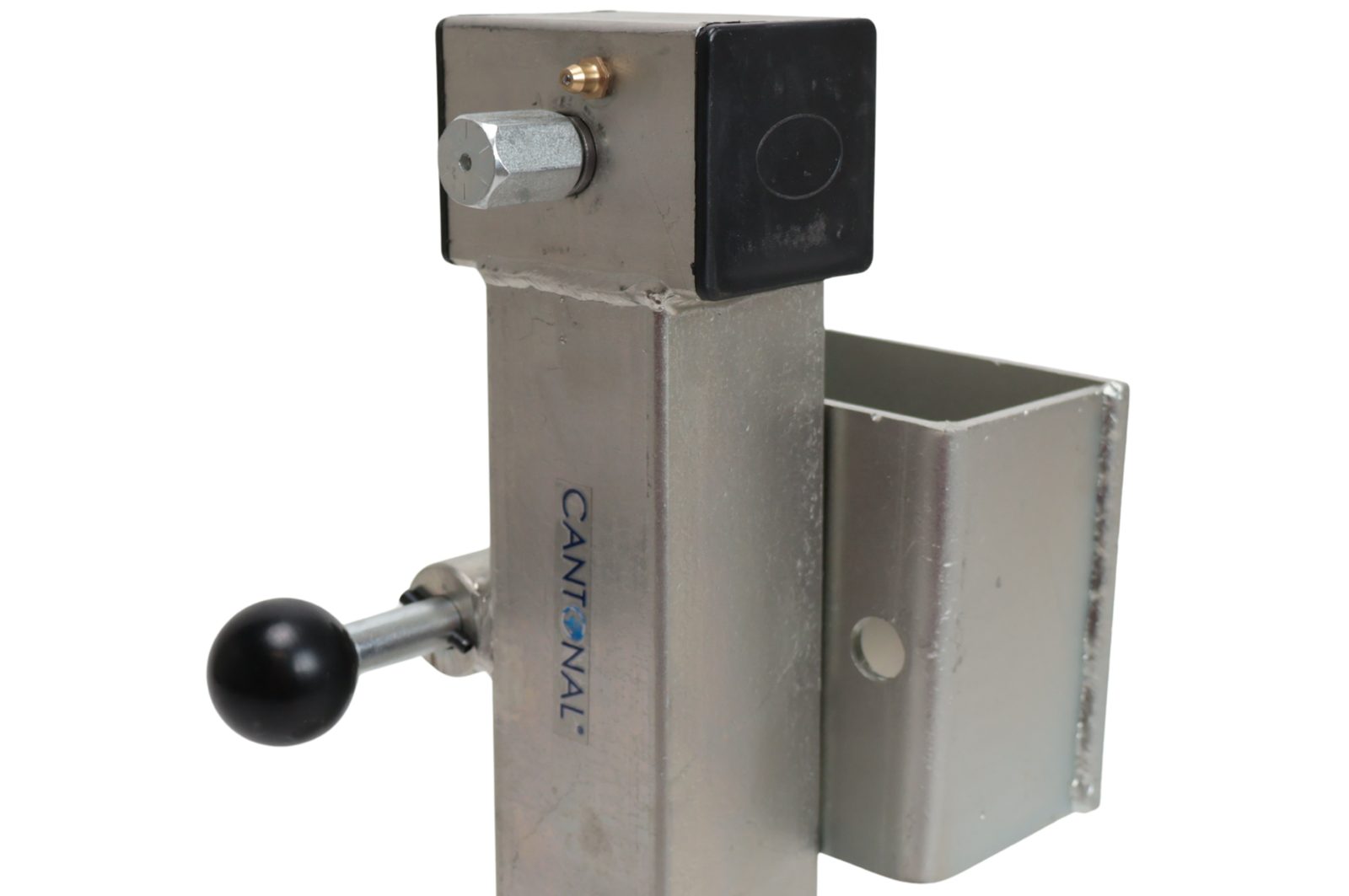

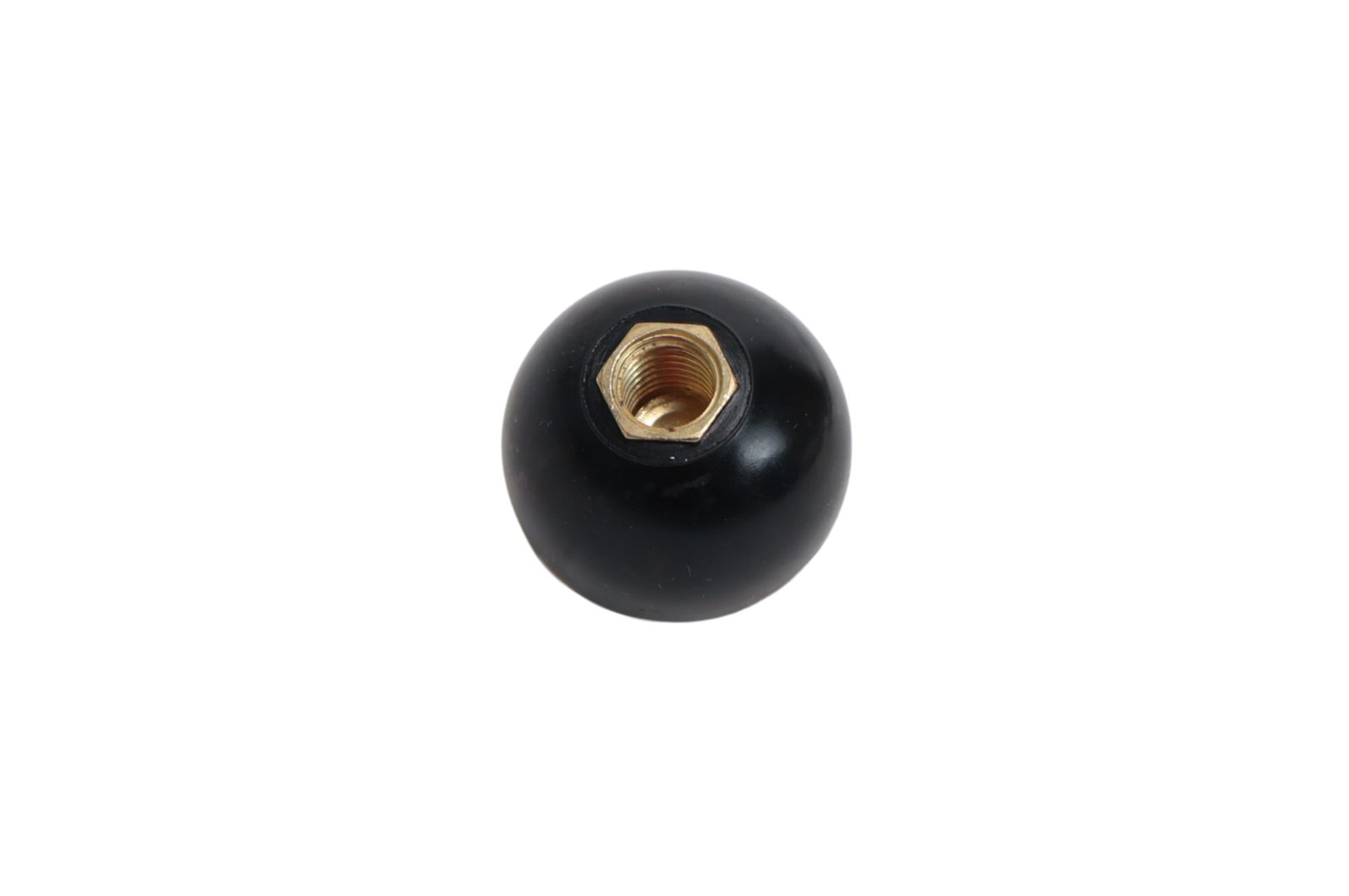

  • Swivel function via spring-loaded bolt with knob
  • Locked position

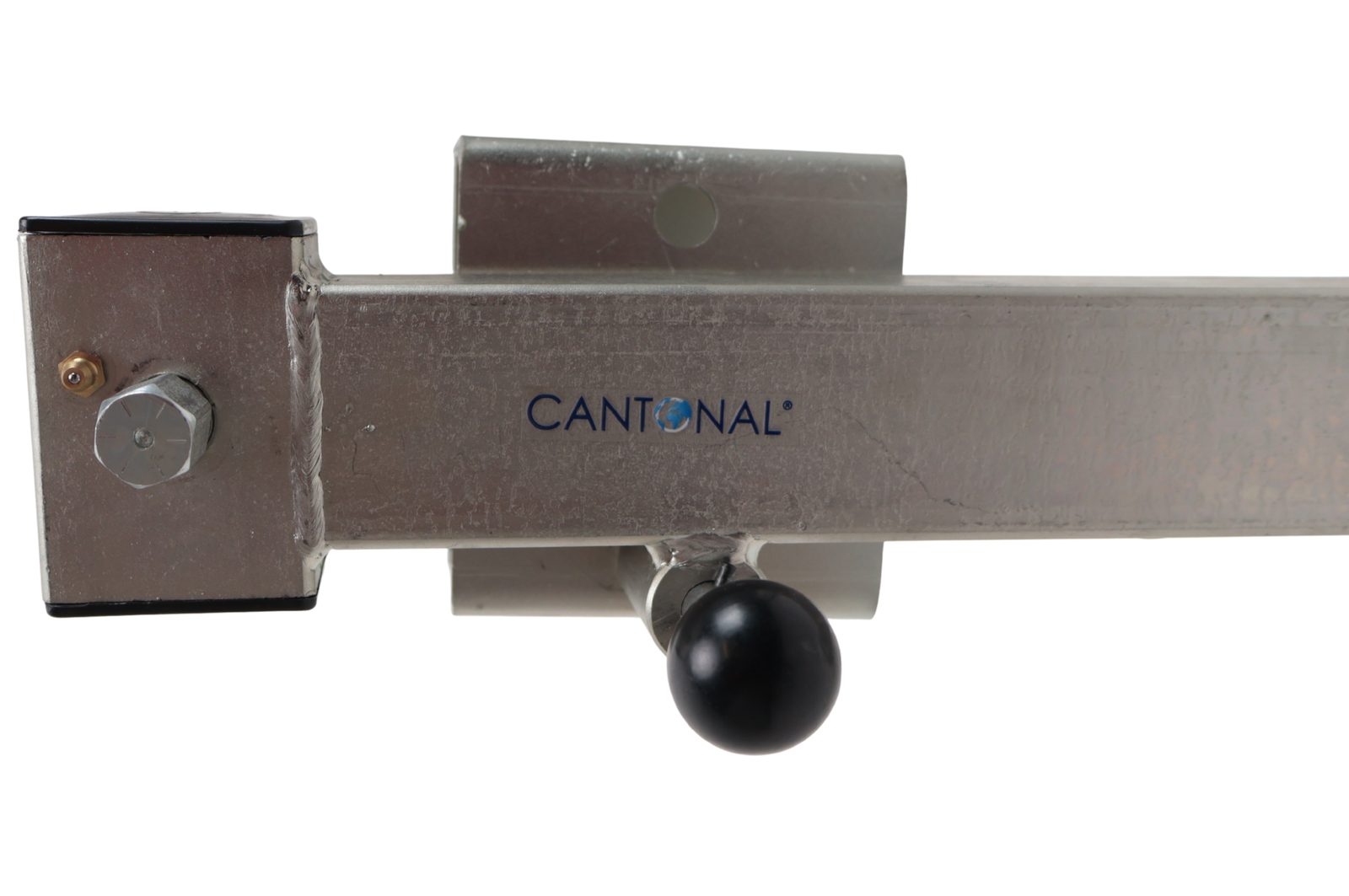

  • Ready to drive: horizontal position, wound in
  • Support function: vertical position, wound out
  • Wound up/down with a hexagonal plug-on crank

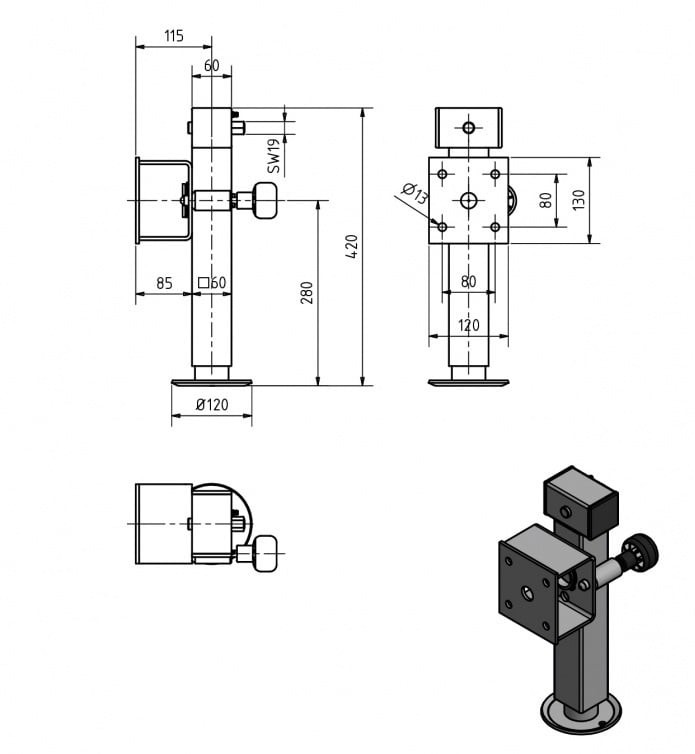

Technical drawing

Technical drawing – Cantonal swivel and wind-down prop stand 1300 kg – flange spacing 85 mm (4-hole)
