SKU 202493408 · Storage & Drawbar Boxes

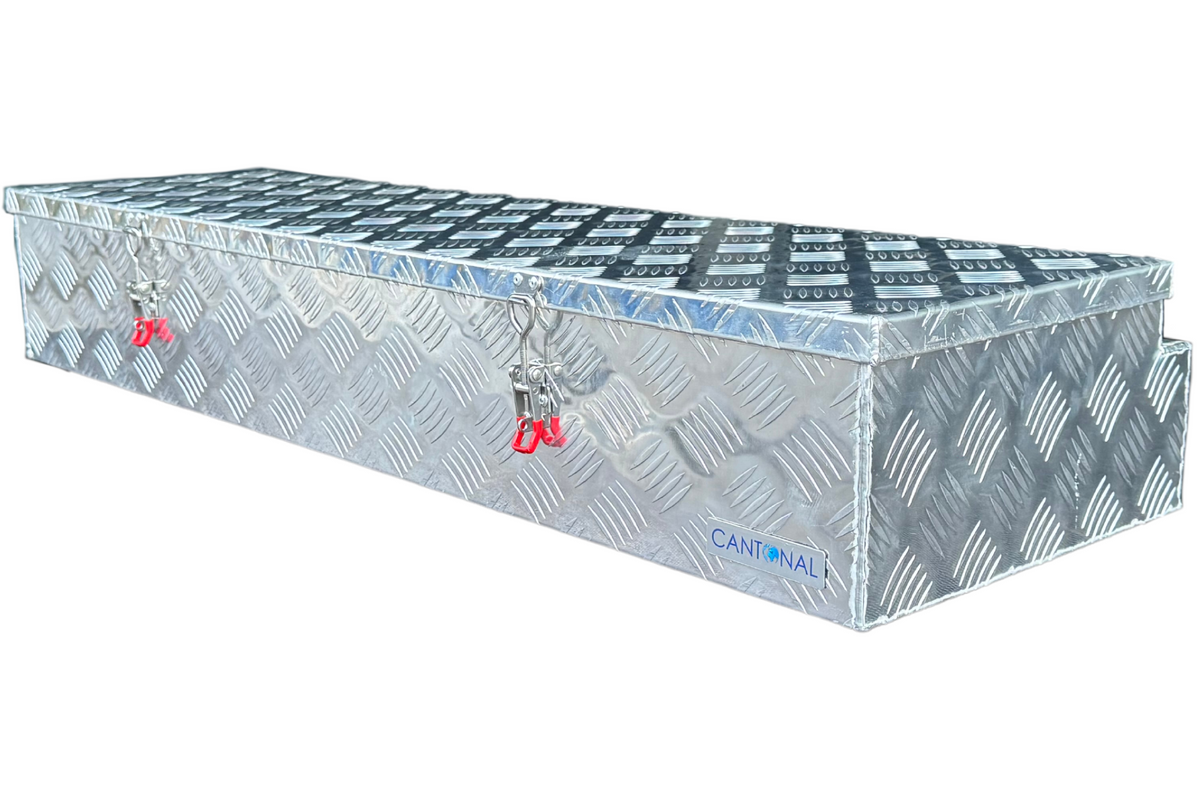

Aluminium drawbar box 1200 x 380 x 195 mm – 2.5 mm wall – ideal for flatbeds and car transporters – water- and dustproof – incl. over-centre latches

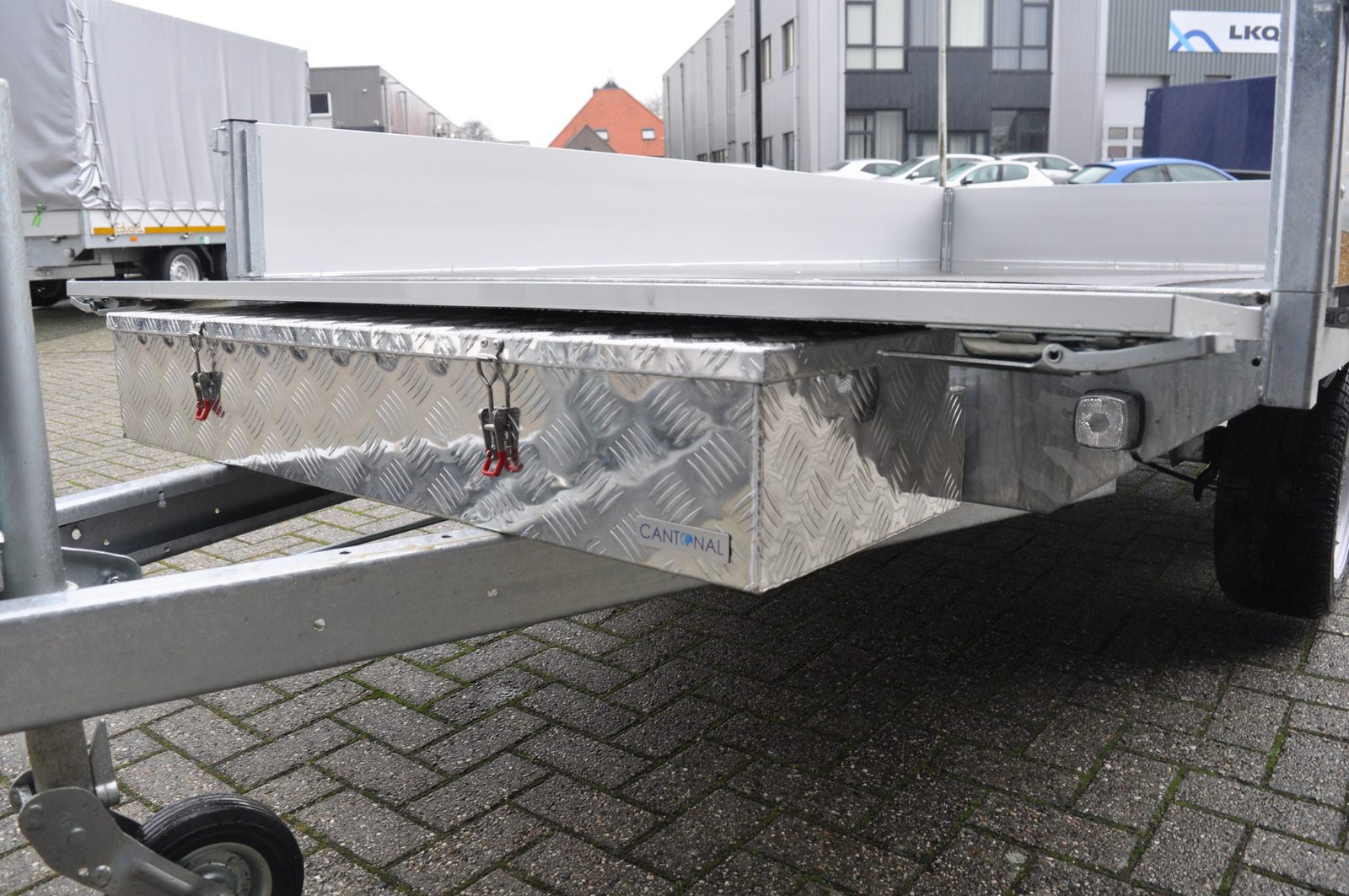

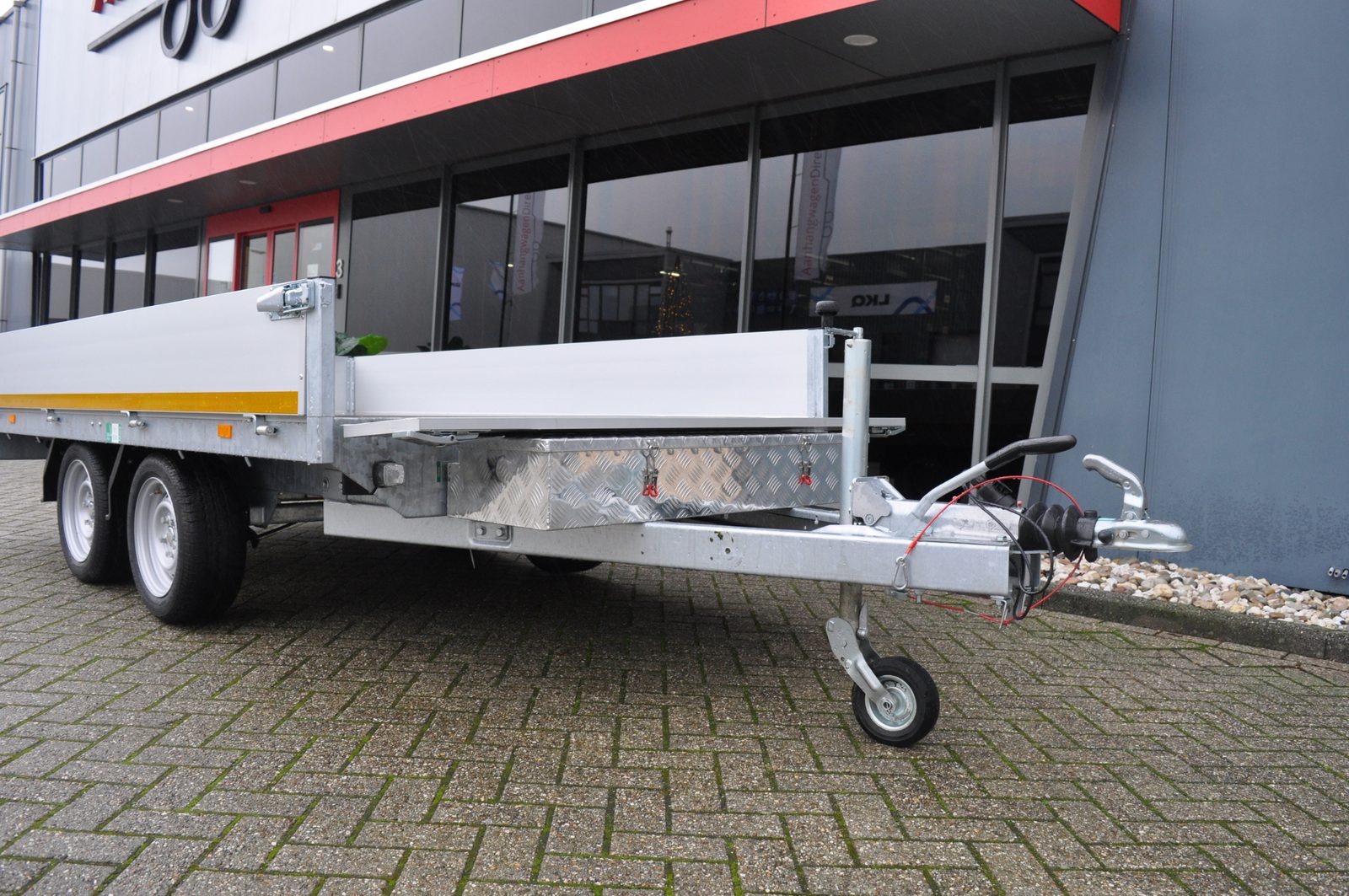

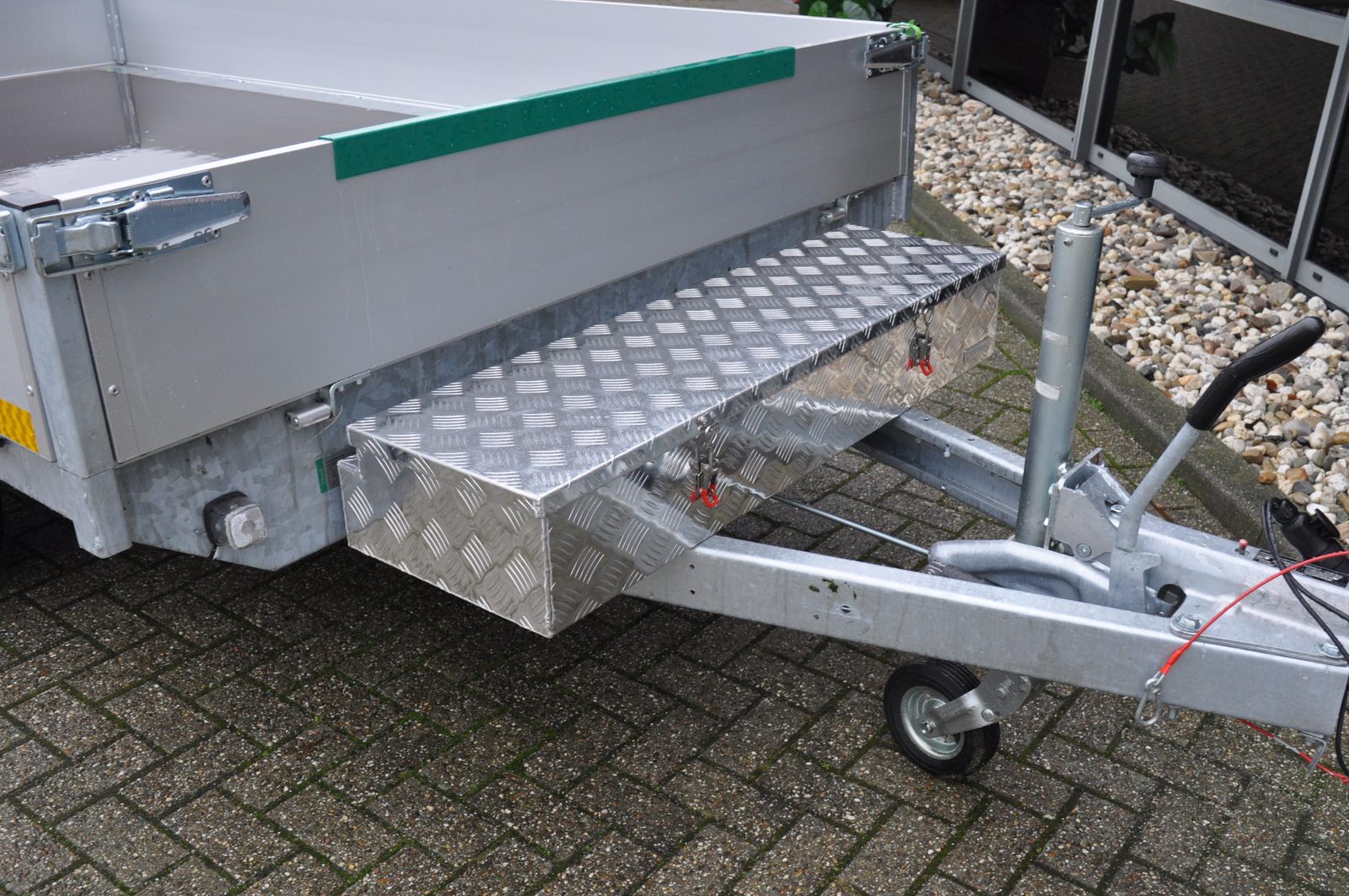

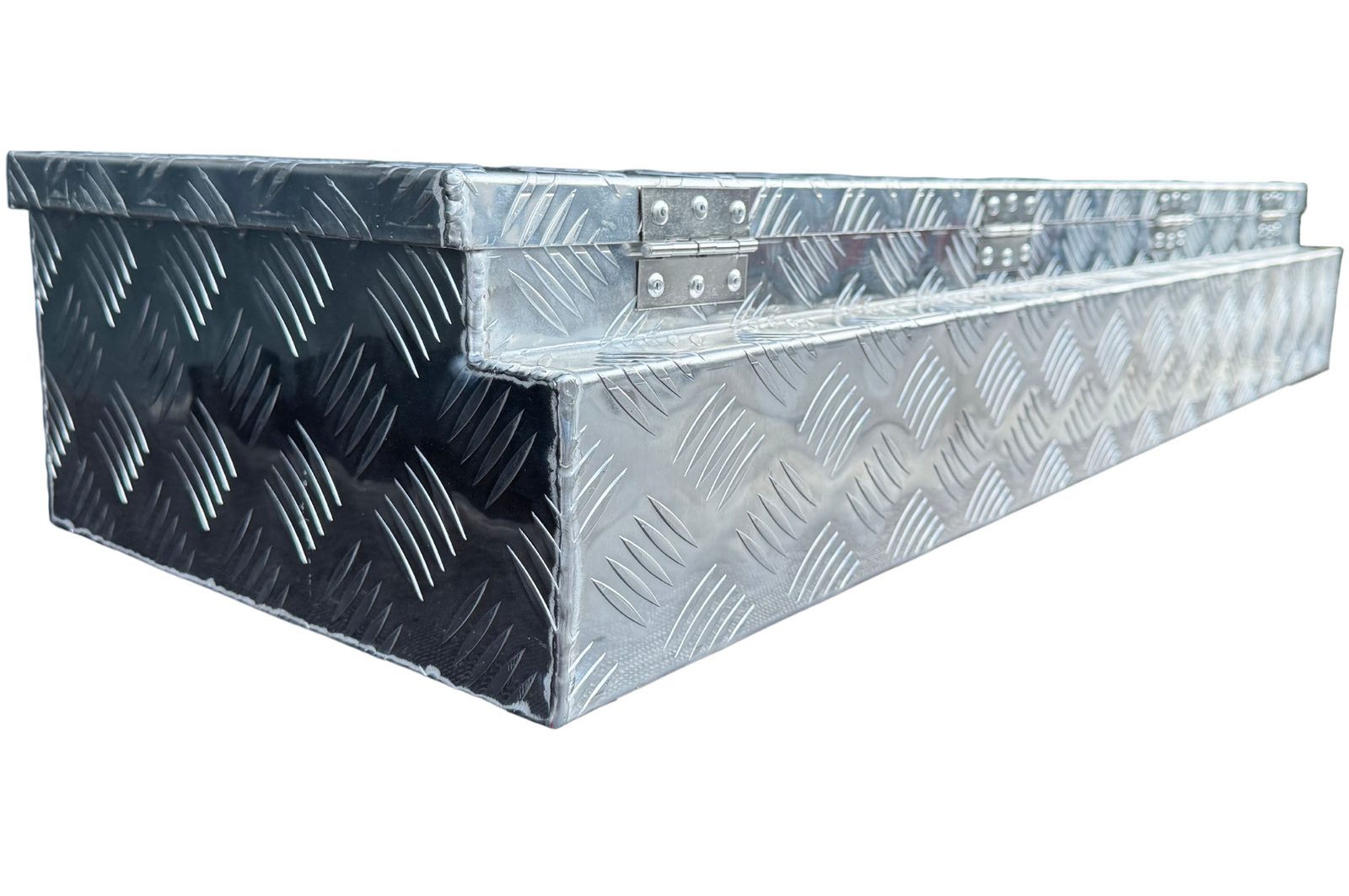

This robust drawbar box, made of aluminium chequer plate, is perfect for flatbed trailers and car transporters with a fold-down headboard. The handy corner recess keeps the headboard easy to fold down, adding flexibility in use. The box has a 2.5 mm wall thickness and…

Datasheet
Brand
Cantonal
Model
low model
Lock type
over-centre latch
External dimensions
1200 x 380 x 195 mm
Opening size
1145 x 275 mm
Material
aluminium
Application
body mounting
Volume
86 litres
Colour
silver
Rating
IP55
Request information →Technical drawing

Prices and availability through your Cantonal dealer.

Description

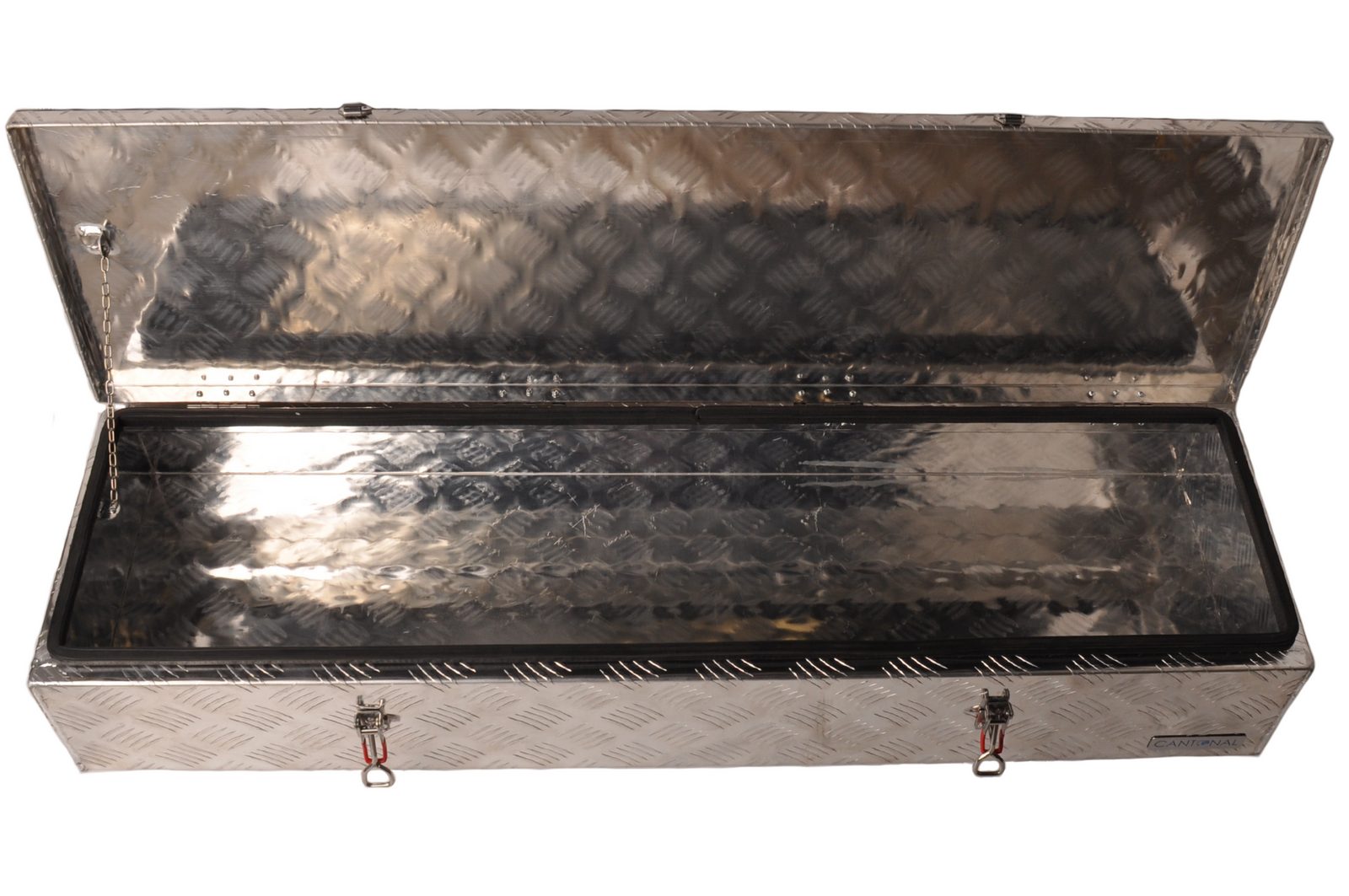

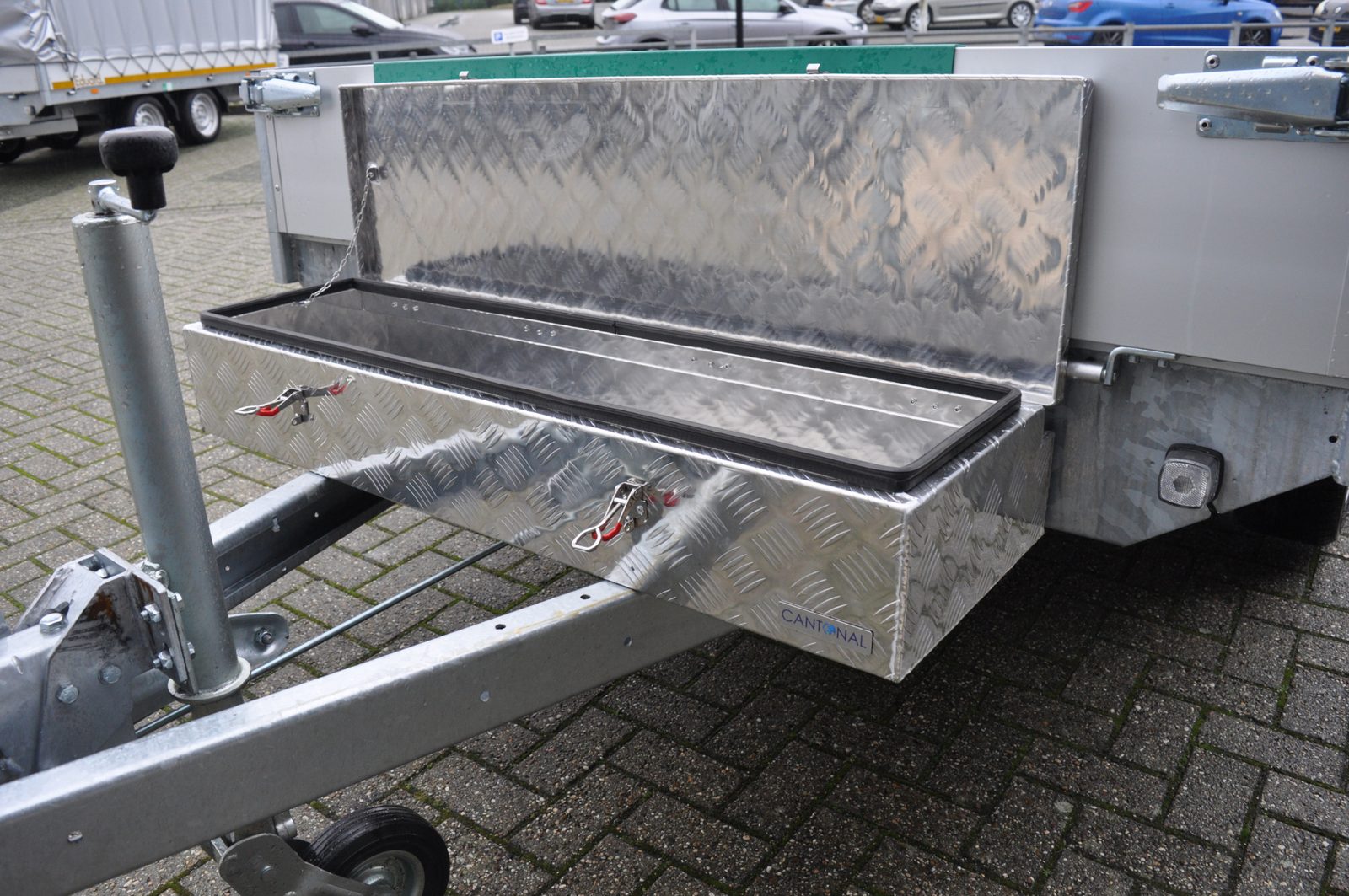

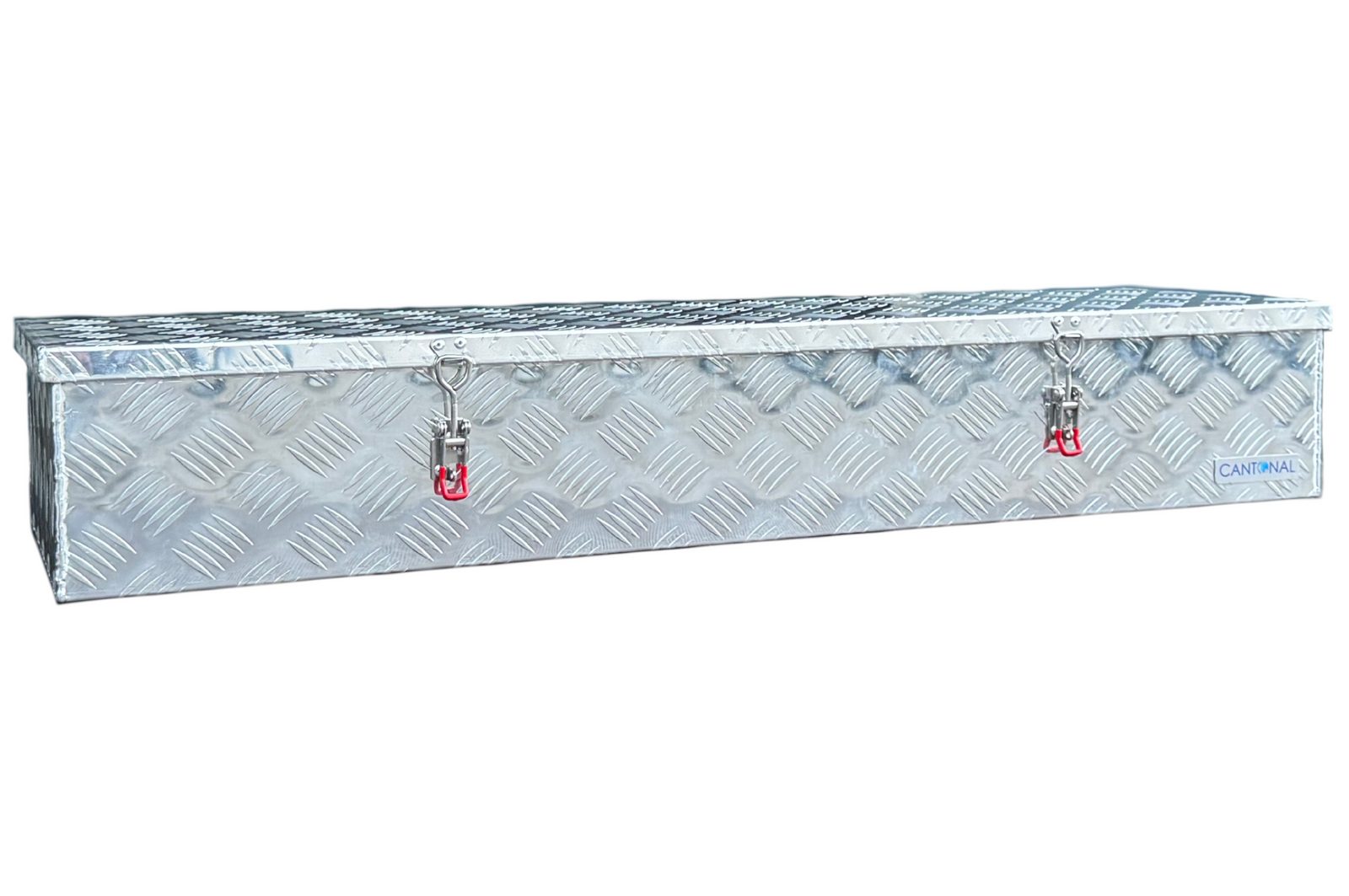

This robust drawbar box, made of aluminium chequer plate, is perfect for flatbed trailers and car transporters with a fold-down headboard. The handy corner recess keeps the headboard easy to fold down, adding flexibility in use. The box has a 2.5 mm wall thickness and a recessed lid, so the lid does not press against the side board of the trailer when opened.

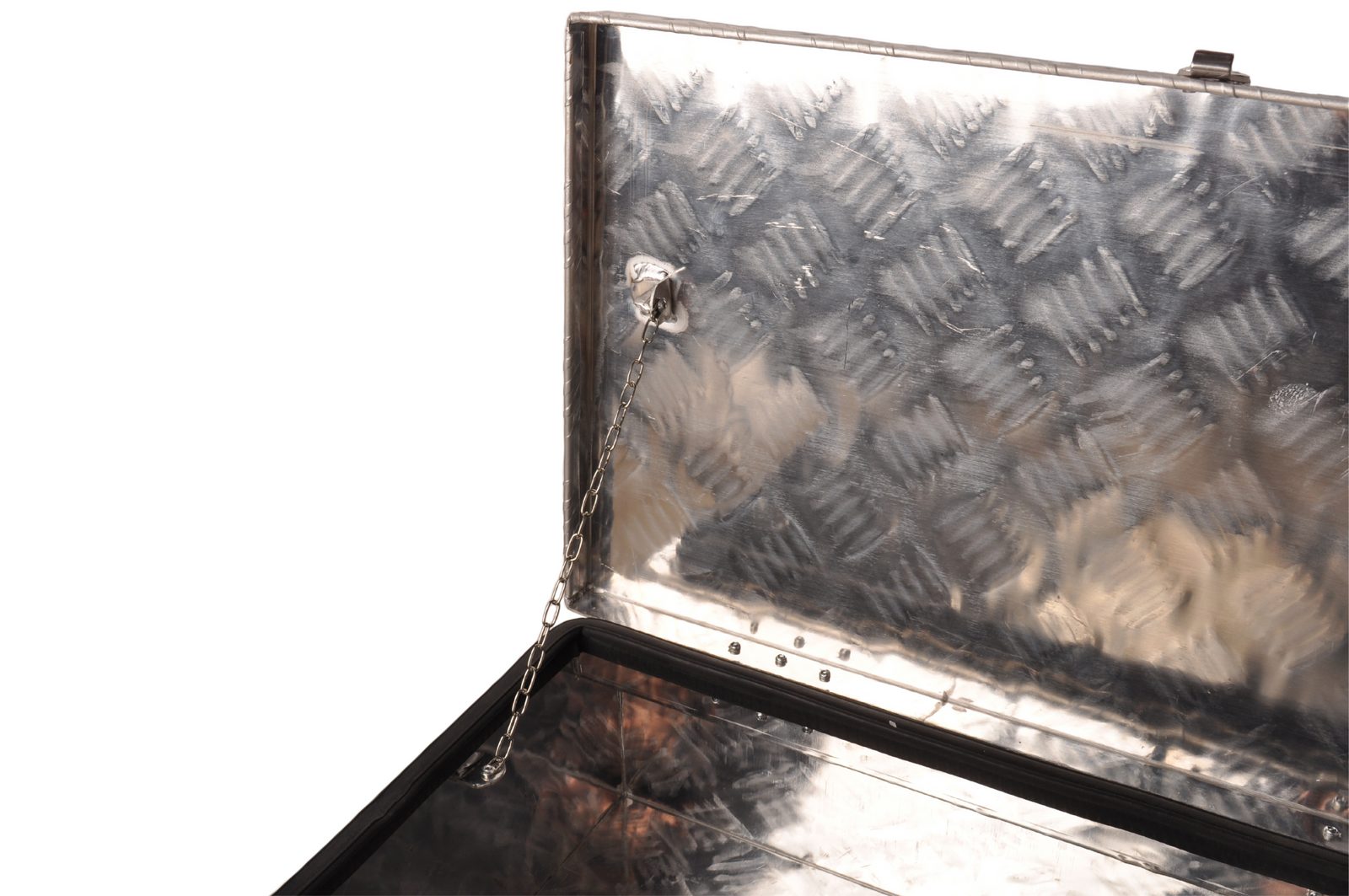

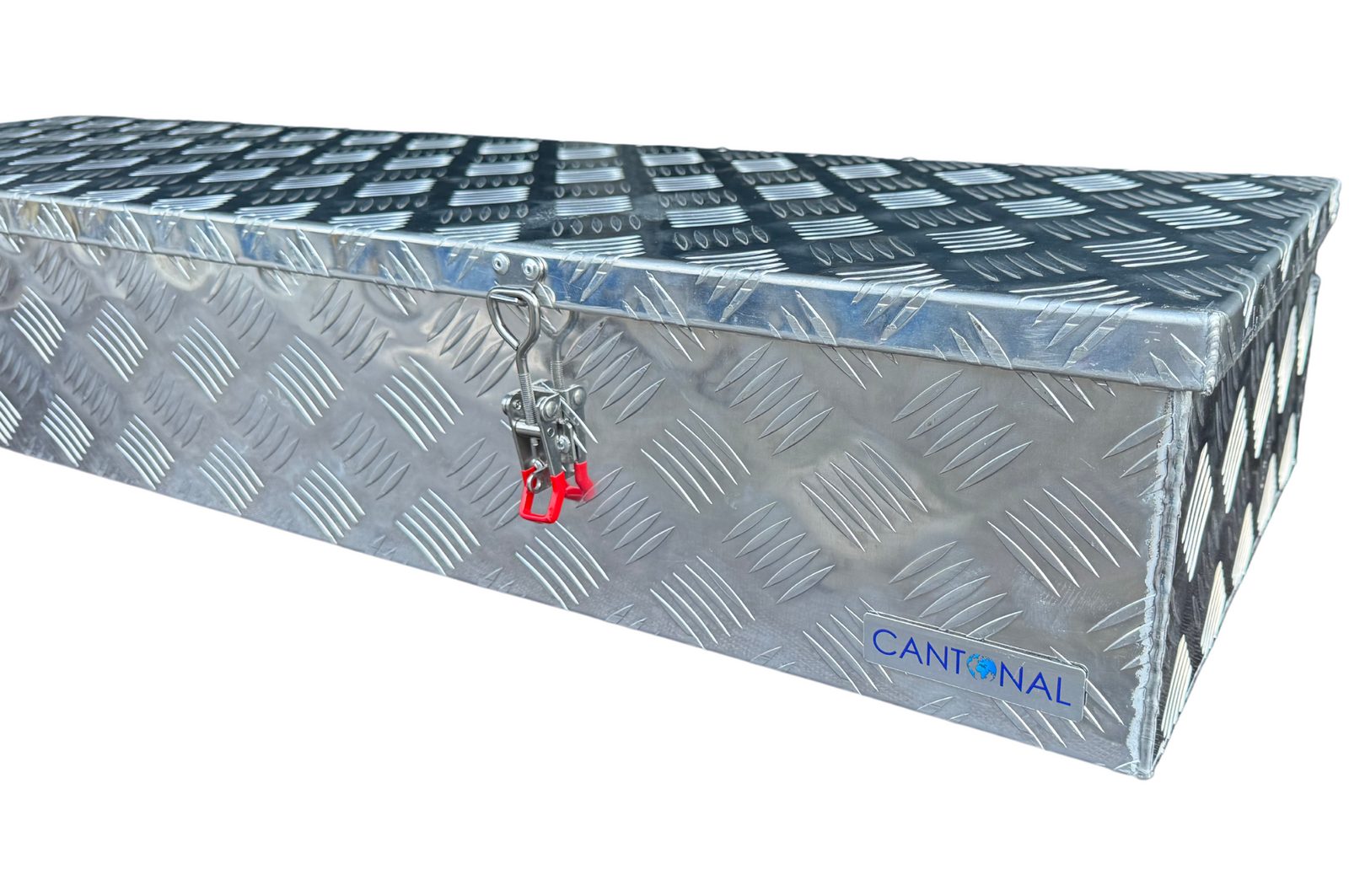

A rubber seal provides water- and dustproof protection (IP55). Weighing 15 kg and fitted with over-centre latches for extra security, this drawbar box is the ideal choice for your trailer.

Mounting: easy to fit with a matching mounting kit or blind rivets (available separately).

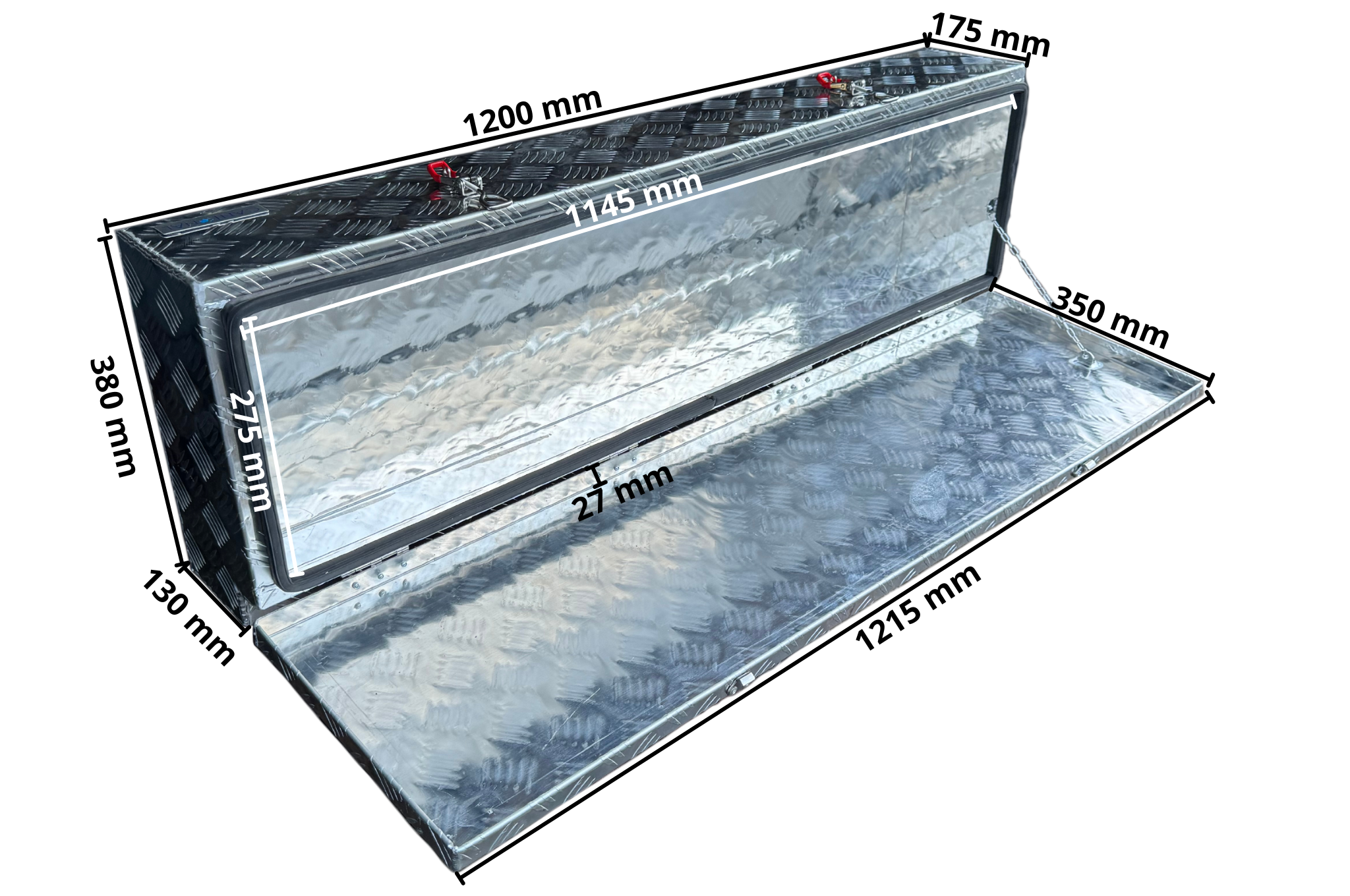

Technical drawing

Technical drawing – Aluminium drawbar box 1200 x 380 x 195 mm – 2.5 mm wall – ideal for flatbeds and car transporters – water- and dustproof – incl. over-centre latches
