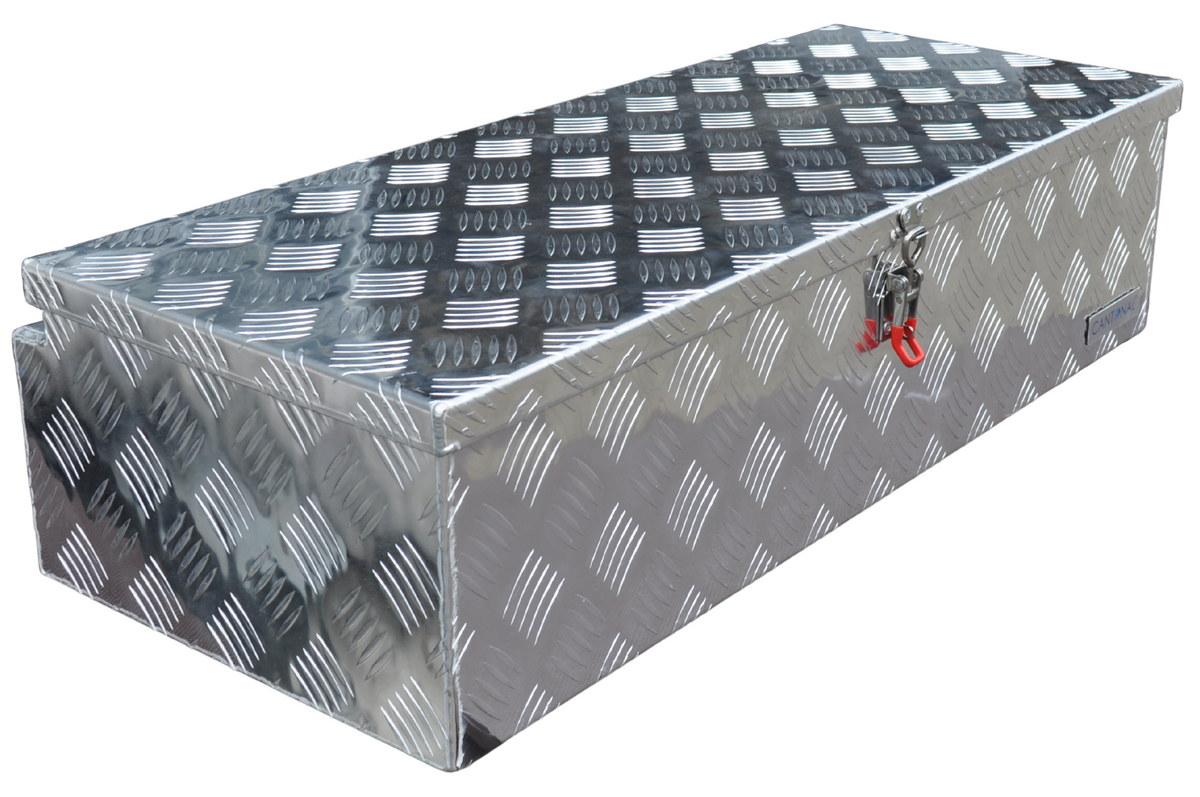

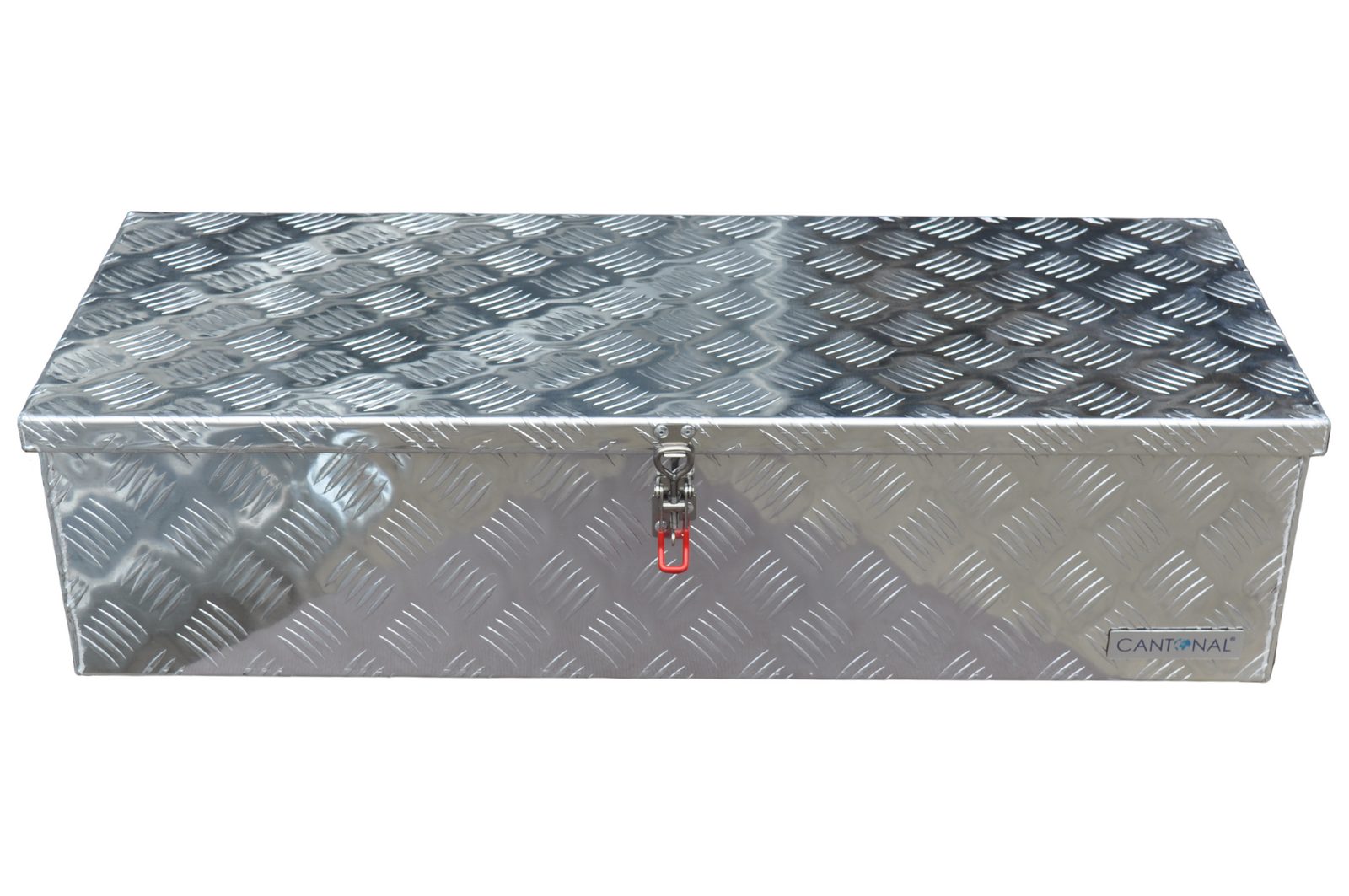

Aluminium chequer plate drawbar box 900 x 380 x 230 mm

This aluminium chequer plate drawbar box is perfect for safely transporting tools or loose parts, for example on a trailer. The rubber edge lets the lid close softly and without rattling, and the lid fits neatly over the box, so the contents are well protected…

Datasheet
Brand
Cantonal
Lock type
over-centre latch
External dimensions
900 x 380 x 230 mm
Material
aluminium chequer plate
Chequer plate thickness
1.3 mm
Volume
approx. 65 litres
Weight
10.8 kg
Colour
untreated aluminium (bright)

Prices and availability through your Cantonal dealer.

Description

This aluminium chequer plate drawbar box is perfect for safely transporting tools or loose parts, for example on a trailer. The rubber edge lets the lid close softly and without rattling, and the lid fits neatly over the box, so the contents are well protected against splash water.

The drawbar box can easily be mounted on the drawbar of a trailer or caravan using the optional mounting kit.

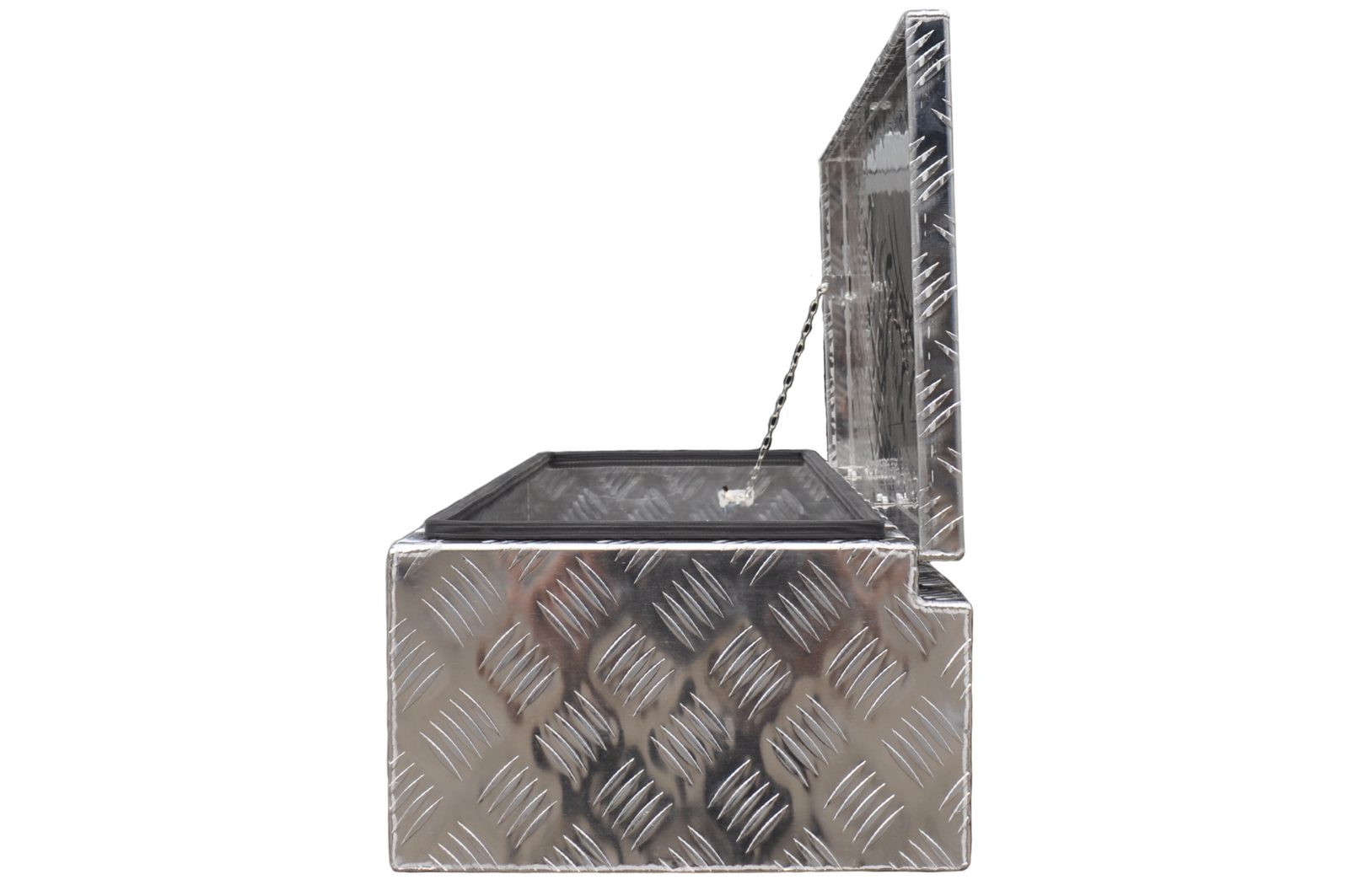

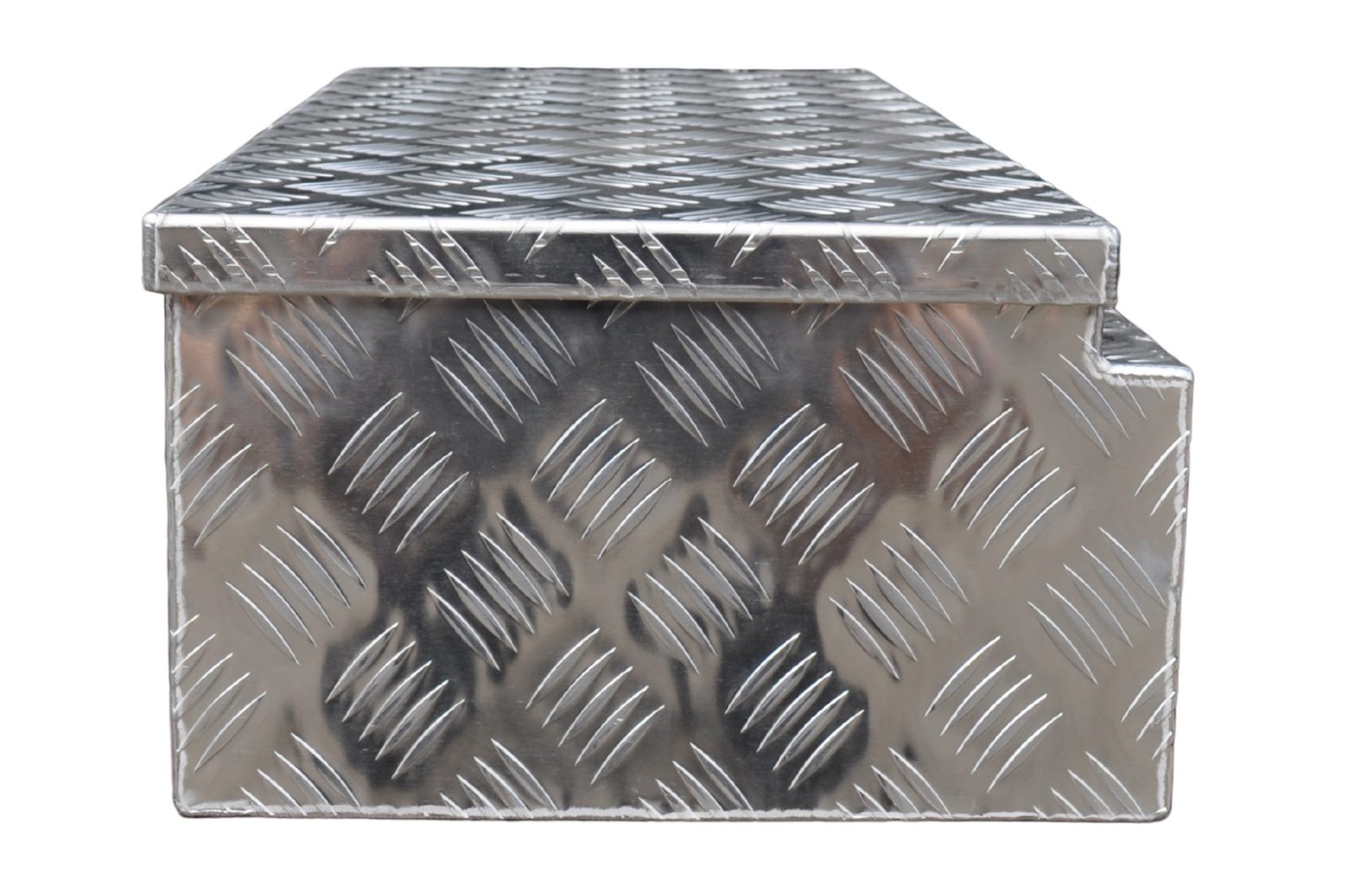

The integrated lock lets you store your belongings securely wherever you are. The high-quality aluminium construction (1.3 mm thick) with sloping sides and a recessed lid prevents the lid from opening against the side wall of the trailer.

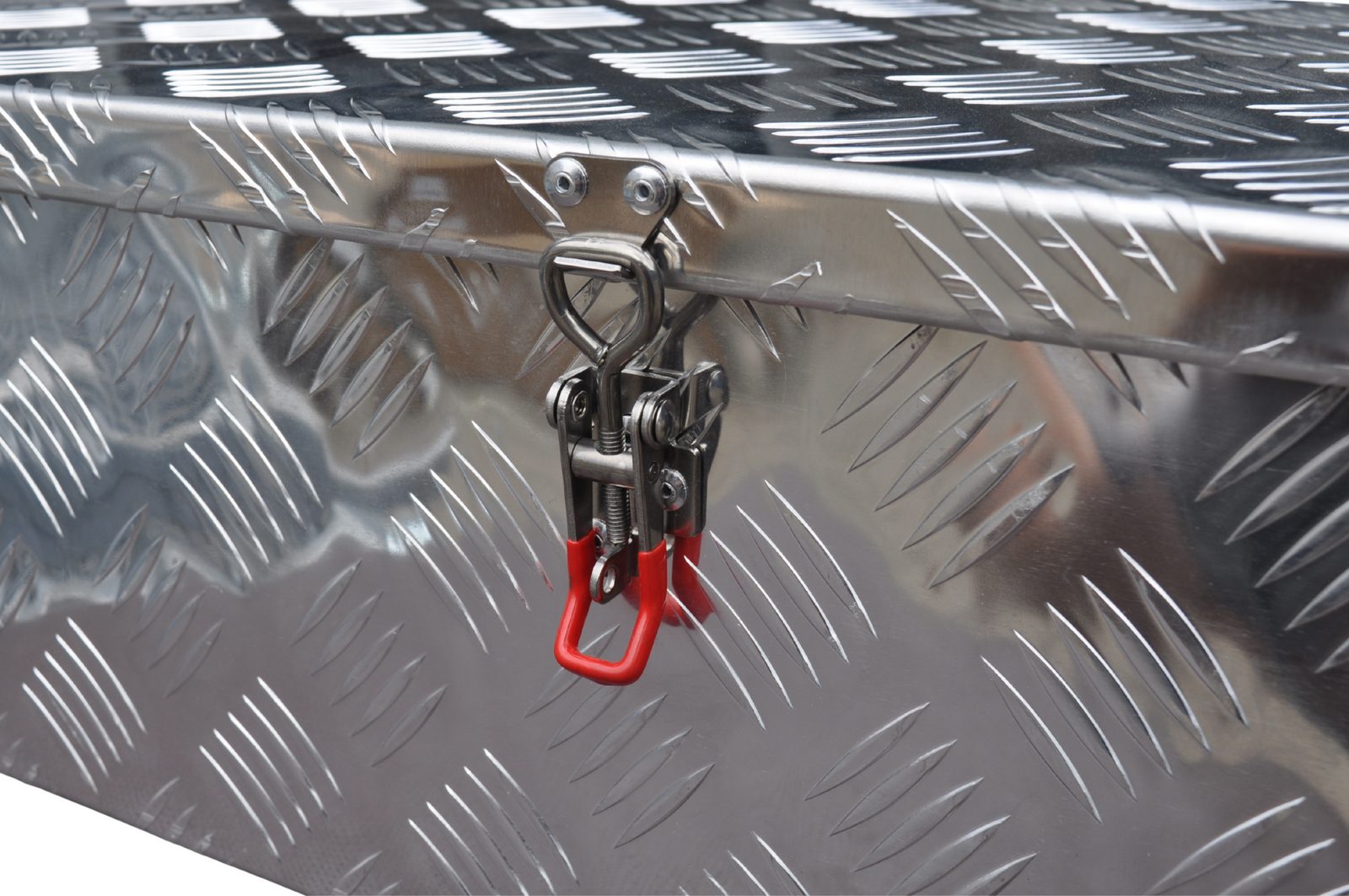

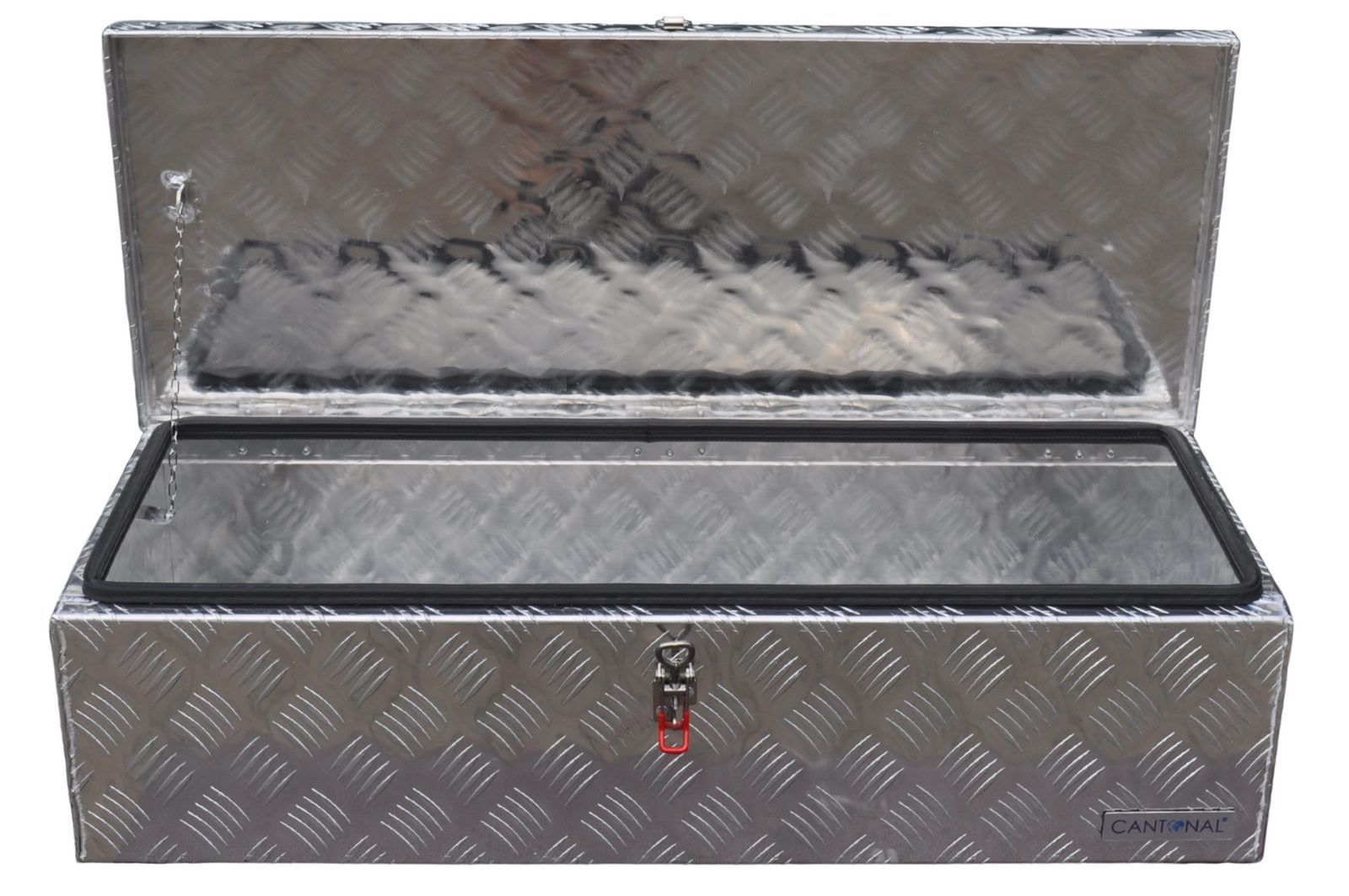

The rubber seal around the edge provides a dust- and waterproof closure (IP55). Weighing 10.8 kg and with a volume of 65 litres, the box offers plenty of space. Fitted with a sturdy over-centre latch.

Mounting: easy to fit with a mounting kit or blind rivets (available separately).

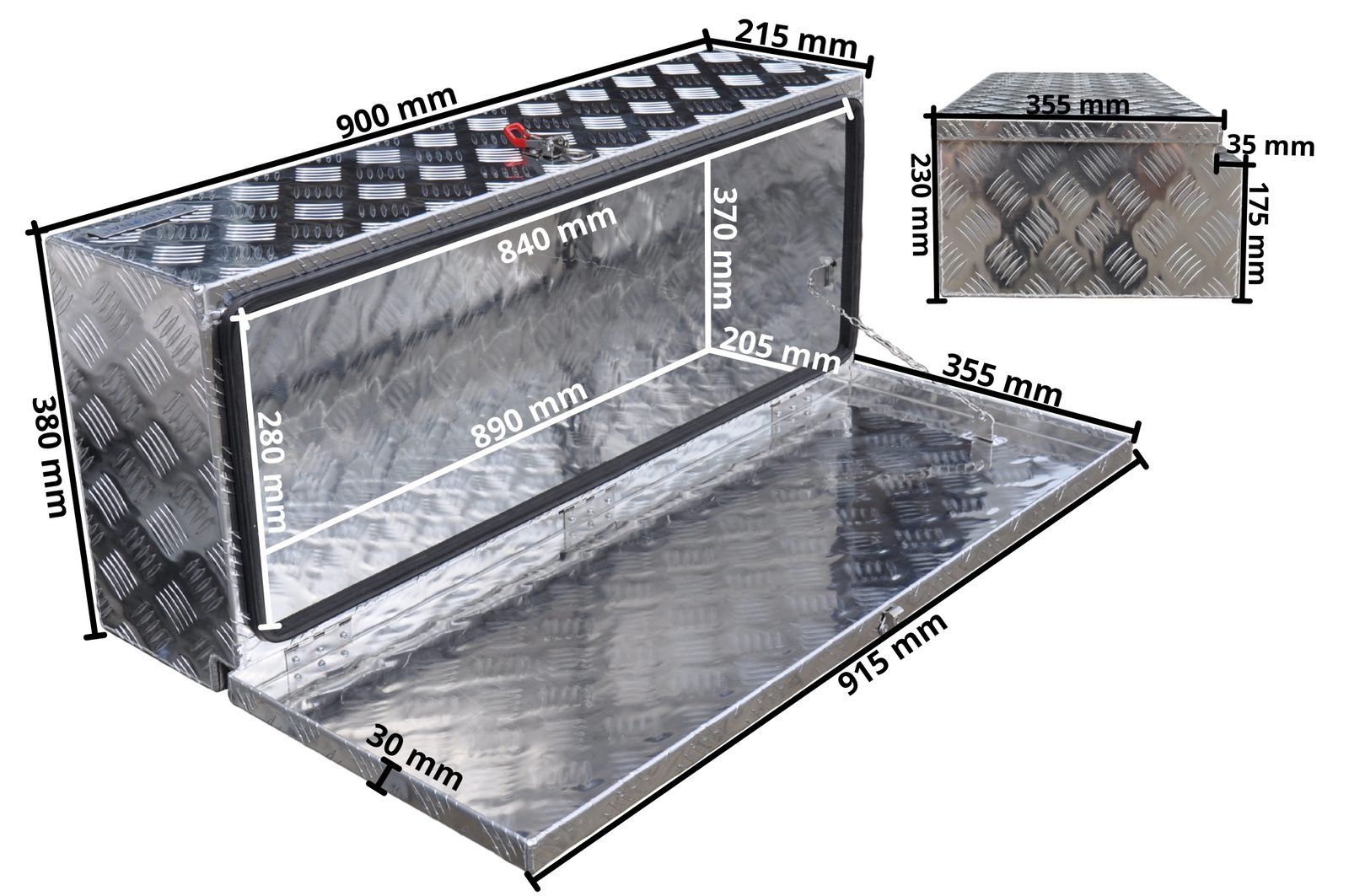

Technical drawing

Technical drawing – Aluminium chequer plate drawbar box 900 x 380 x 230 mm
