Aluminium chequer plate drawbar box 700 x 240 x 300 mm

This aluminium chequer plate drawbar box is perfect for safely transporting tools or loose parts, for example on a trailer. The rubber edge lets the lid close softly and without rattling, and the lid fits neatly over the box, so the contents are well protected…

Datasheet
Brand
Cantonal
Lock type
butterfly lock
External dimensions
700 x 240 x 300 mm
Lid dimensions
716 x 256 x 26 mm
Material
aluminium chequer plate
Chequer plate thickness
1.3 mm
Application
body mounting
Volume
60 litres
Weight
7.6 kg
Colour
untreated aluminium (bright)
Includes
2 keys

Prices and availability through your Cantonal dealer.

Description

This aluminium chequer plate drawbar box is perfect for safely transporting tools or loose parts, for example on a trailer. The rubber edge lets the lid close softly and without rattling, and the lid fits neatly over the box, so the contents are well protected against splash water.

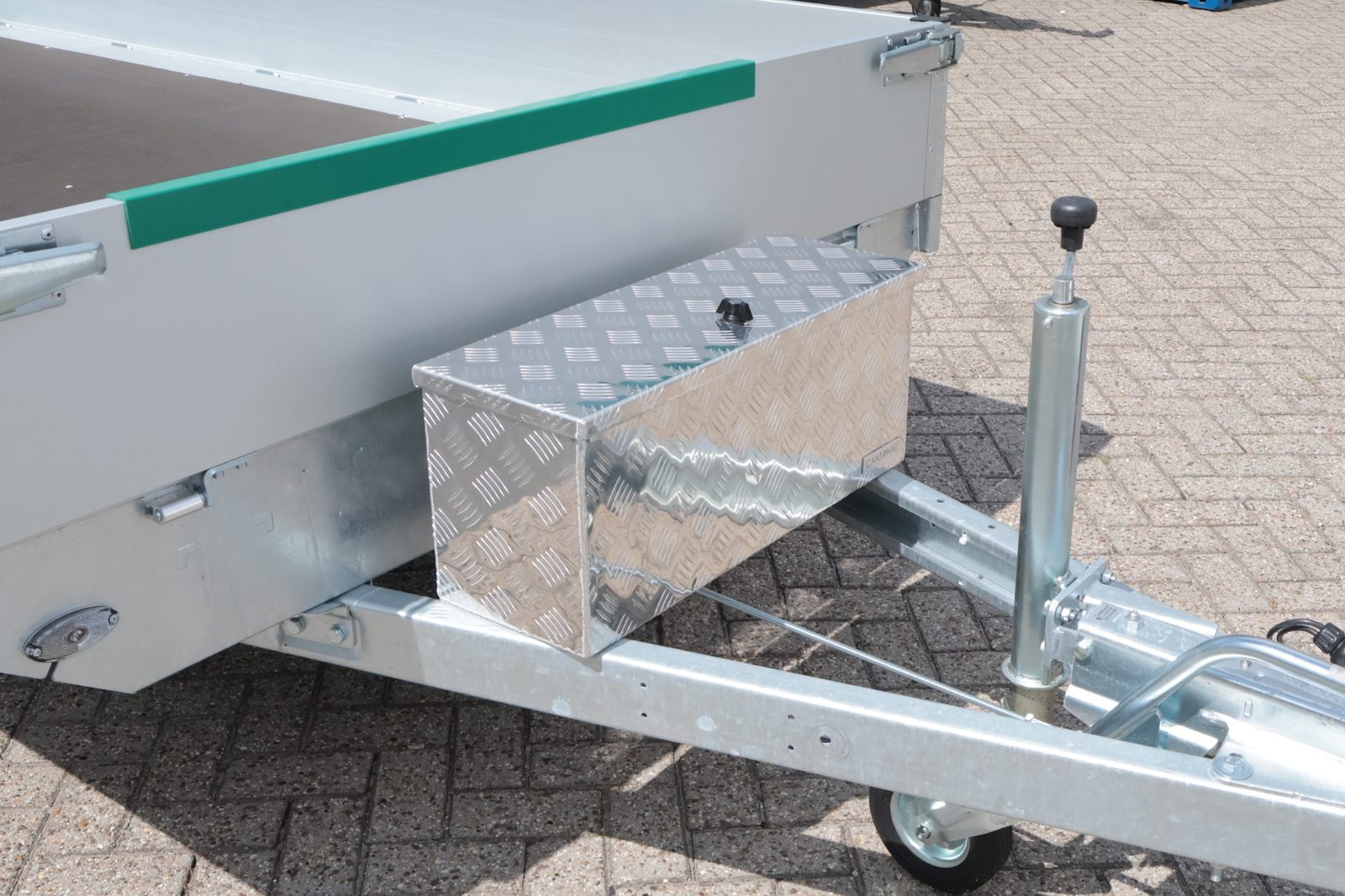

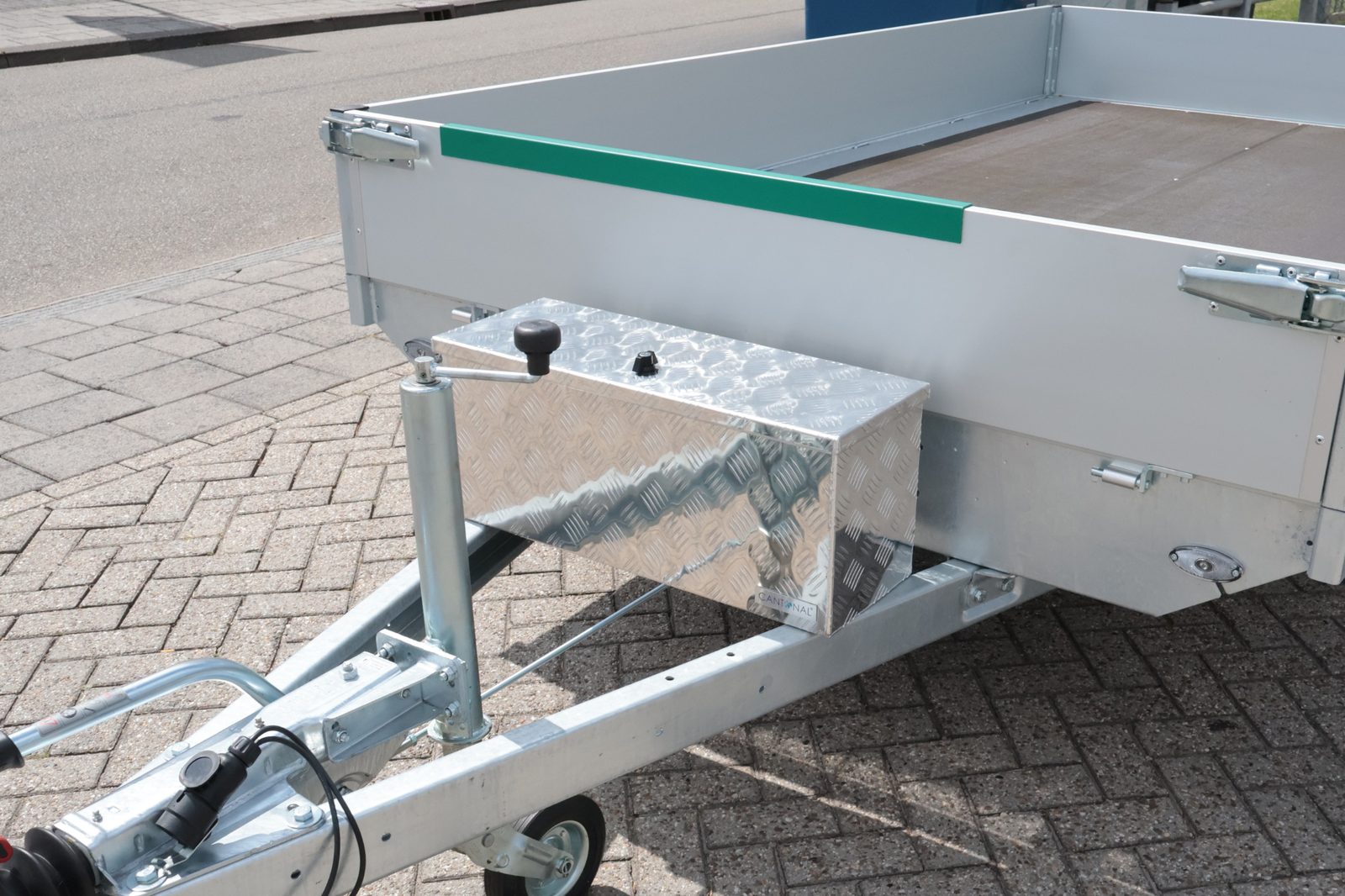

The drawbar box can easily be mounted on the drawbar of a trailer or caravan using the optional mounting kit.

The integrated lock lets you store your belongings securely wherever you are; the box comes with 2 keys. The high-quality aluminium construction (1.3 mm thick) with sloping sides and a recessed lid prevents the lid from opening against the side wall of the trailer.

The rubber seal around the edge provides a dust- and waterproof closure (IP55). Weighing 7.6 kg and with a volume of 60 litres, the box offers plenty of space. Fitted with a sturdy butterfly lock.

Mounting: easy to fit with a mounting kit or blind rivets (available separately).

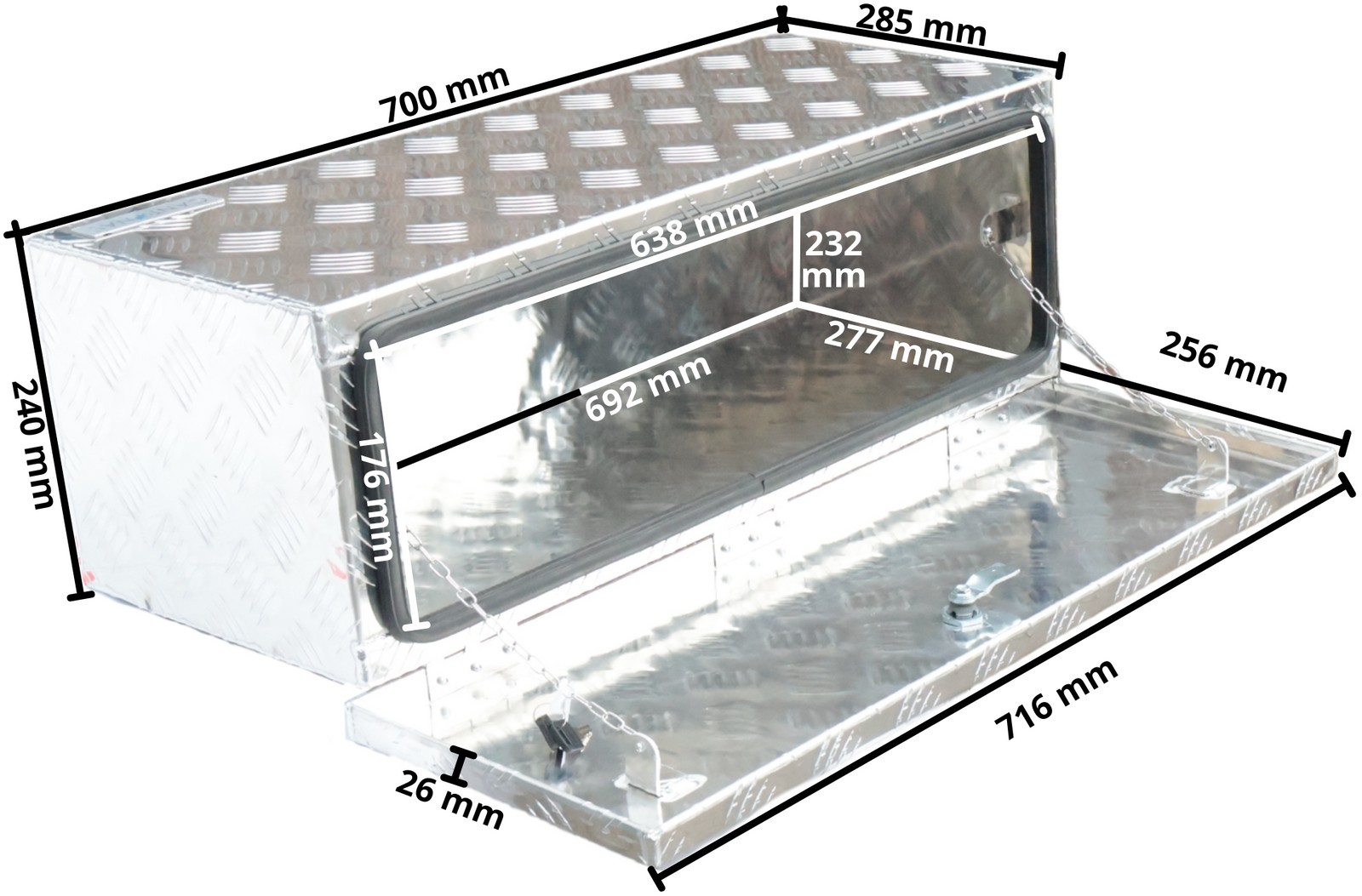

Technical drawing

Technical drawing – Aluminium chequer plate drawbar box 700 x 240 x 300 mm
